5 Star

110048 - Alternator (110048)

Brands > 5 Star , Marine > Alternators

Voltage: 14, Amp: 35, Insulator Insulated return, Bracket Hole: 11.00, Belt. adj. bracket hole 8.00, Width/Holder Arm: 51.00, Belt. adj. brackethole pos. 56, Pulley Dia.: 73.00, Pulley Dist.: 72.00, Grooves/Pulley: 1, Radius: 84.50, Radius: 83.50, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL26, Blower: EF, Pulley SP, Total Length: 180.00, Source Mahle Letrika

110077 - Alternator (110077)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 50, Bracket Hole: M8, Belt. adj. bracket hole M8, Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 10, Pulley Dia.: 72.50, Pulley Dist.: 78.50, Grooves/Pulley: 1, Radius: 89.50, Radius: 88.50, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL_NA, Blower: EF, Pulley P, Total Length: 171.00, Source Mahle Letrika

110117 - Alternator (110117)

Brands > 5 Star , Trucks, Trailers and Buses > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 28, Amp: 35, Bracket Hole: 8.00, Belt. adj. bracket hole 8.00, Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 50, Radius: 89.50, Radius: 85.50, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL_NA, Bracket Hole: 8.00, Blower: EF, Pulley w/o, Total Length: 183.50, Source Valeo

110177 - Alternator (110177)

Brands > 5 Star , Industrial > Alternators
Voltage: 14, Amp: 51, Bracket Hole: 13.00, Belt. adj. bracket hole M7, Width/Holder Arm: 27.25, Belt. adj. brackethole pos. 60, Radius: 90.50, Radius: 82.50, B+ Position: 1/4" UNC, Rotation: CR, Regulator Plug: or plug PL_NA, Blower: EF, Pulley w/o, Remarks Regulator Plug: or: HC-CARGO 130679., Total Length: 154.00, Source Prestolite

110178 - Alternator (110178)

Brands > 5 Star , Automotive > Starters & Alternators , Trucks, Trailers and Buses > Starters & Alternators , Agriculture > Starters & Alternators , Industrial > Alternators
Voltage: 14, Amp: 36, Bracket Hole: M8, Belt. adj. bracket hole M8, Width/Holder Arm: 10.00, Belt. adj. brackethole pos. 50, Mount. Bracket Dist.: 87.00, Radius: 82.50, Radius: 82.00, B+ Position: 9.40, Rotation: CR, Regulator Plug: or plug PL22, Blower: EF, Pulley w/o, Total Length: 164.00, Source Lucas

110179 - Alternator (110179)

Brands > 5 Star , Automotive > Starters & Alternators , Trucks, Trailers and Buses > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 36, Bracket Hole: 8.20, Belt. adj. bracket hole 8.20, Width/Holder Arm: 9.75, Belt. adj. brackethole pos. 10, Mount. Bracket Dist.: 88.00, Radius: 81.00, Radius: 83.00, B+ Position: 9.40, Rotation: CR, Regulator Plug: or plug PL22, Blower: EF, Pulley w/o, Remarks For pulley w/ 17.00 mm bore use bushing: HC-CARGO 134894., Total Length: 162.00, Source Lucas

110360 - Alternator (110360)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 45, Bracket Hole: 8.00, Belt. adj. bracket hole 8.00, Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 5, Radius: 80.00, Radius: 86.00, B+ Position: 9.40, Rotation: CR, Regulator Plug: or plug PL22, Blower: w/o, Pulley w/o, Total Length: 154.00, Source Mahle Letrika

110408 - Alternator (110408)

Brands > 5 Star , Automotive > Starters & Alternators
Voltage: 14, Amp: 35, Terminal W, Bracket Hole: 13.00, Belt. adj. bracket hole M8, Width/Holder Arm: 27.00, Belt. adj. brackethole pos. 55, Belt. adj. brackethole pos. 60, Radius: 83.85, Radius: 81.20, Radius: 81.20, Radius: 81.20, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL_NA, Blower: EF, Pulley w/o, Belt. adj. bracket hole M8, Total Length: 145.00, Belt. adj. brackethole pos. 5, Belt. adj. bracket hole M8, Source Prestolite

110449 - Starter (110449)

Brands > 5 Star , Agriculture > Starters & Alternators , Industrial > Starters
Voltage: 12, kW 3.6, Mount. flange 88.90, Drive dist. 48.75, Dist./back 282.25, Dist./front 90.00, No. of teeth 10, B+ M8, Gear type DD, Dist. 126.75, Dist. 2 87.50, Dist. 3 87.50, Rotation: CR, No./mount. holes 3 (0), Drive Type: Steel, Total Length: 370.00, Oil sealed No, Waterproof No, Source Prestolite

110450 - Starter (110450)

Brands > 5 Star , Industrial > Starters , Marine > Starters
Voltage: 12, kW 3.6, Insulator Insulated return, Mount. flange 88.80, Drive dist. 47.50, Dist./back 257.00, Dist./front 90.00, No. of teeth 10, B+ M8, B- M8, Terminal 15a M4, Gear type DD, Dist. 127.00, Dist. 2 89.70, Dist. 3 89.70, Rotation: CR, No./mount. holes 3 (0), Drive Type: Steel, Total Length: 370.00, Oil sealed Yes, Waterproof No, Source Prestolite

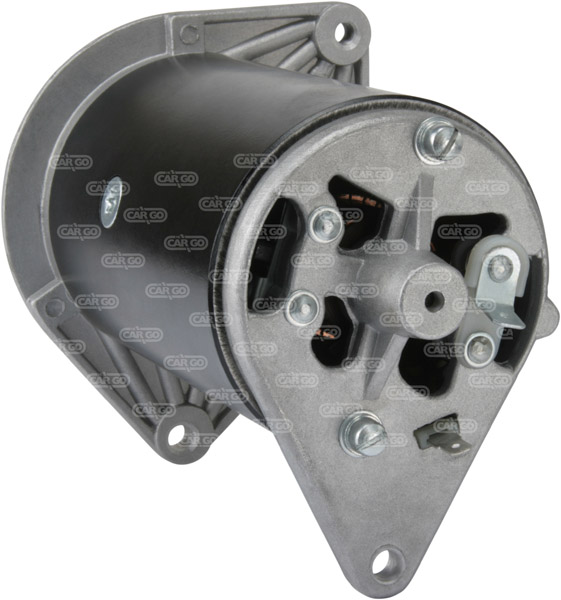

110482 - Generator (110482)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 12, Amp: 22, OD: 144.00, Length mm 230.00, Pulley w/o, Rotation: CR, Source Lucas

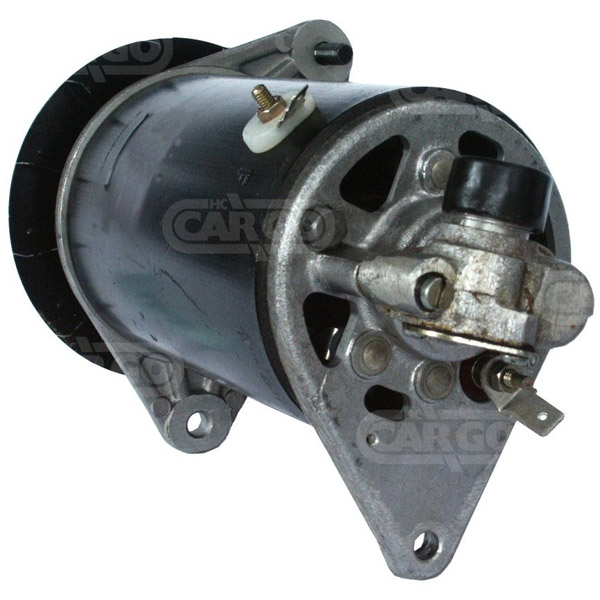

110484 - Generator (110484)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 12, Amp: 22, OD: 144.00, Length mm 238.00, Pulley w/o, Source Lucas

110566 - Starter (110566)

Brands > 5 Star , Industrial > Starters
Voltage: 24, kW 5.2, Mount. flange 88.85, Drive dist. 47.75, Dist./back 281.00, Dist./front 91.45, No. of teeth 10, B+ M8, Gear type DD, Dist. 126.60, Dist. 2 90.35, Dist. 3 90.35, Rotation: CR, No./mount. holes 3 (0), Drive Type: Steel, Total Length: 371.00, Oil sealed No, Waterproof No, Source Prestolite

110969 - Alternator (110969)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 65, Bracket Hole: 8.20, Belt. adj. bracket hole M8, Width/Holder Arm: 11.00, Belt. adj. brackethole pos. 10, Mount. Bracket Dist.: 82.00, Pulley Dia.: 64.00, Pulley Dist.: 38.00, Grooves/Pulley: 1, Radius: 85.15, Radius: 86.35, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL22, Blower: EF, Pulley P, Total Length: 167.50, Source Prestolite

110972 - Alternator (110972)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 65, Bracket Hole: 8.45, Belt. adj. bracket hole 8.25, Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 57, Pulley Dia.: 75.00, Pulley Dist.: 87.90, Grooves/Pulley: 1, Radius: 87.00, Radius: 90.00, B+ Position: Plug, Rotation: CR, Regulator Plug: or plug PL22, Blower: EF, Pulley P, Total Length: 167.50, Source Prestolite

110975 - Alternator (110975)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 65, Terminal W, Bracket Hole: 8.40, Belt. adj. bracket hole 8.15, Width/Holder Arm: 56.25, Belt. adj. brackethole pos. 50, Pulley Dia.: 72.00, Pulley Dist.: 82.85, Grooves/Pulley: 1, Radius: 84.80, Radius: 86.85, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL22, Blower: EF, Pulley P, Total Length: 167.00, Source Prestolite

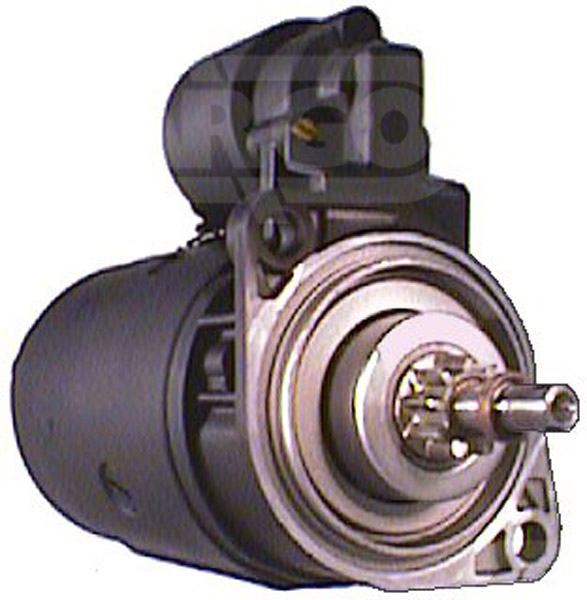

110996 - Starter (110996)

Brands > 5 Star , Automotive > Starters & Alternators
Voltage: 12, kW 1.7, Mount. flange 76.00, Drive dist. 32.00, Dist./back 189.00, Dist./front 67.00, No. of teeth 9, B+ M8, Gear type DD/GR, Dist. 111.00, Rotation: ACR, No./mount. holes 2 (0), Drive Type: Steel, Remarks Bushing D.E. (clutch house): HC-CARGO 140008., Total Length: 265.00, Oil sealed No, Waterproof No, Source Mahle Letrika

110998 - Starter (110998)

Brands > 5 Star , Trucks, Trailers and Buses > Starters & Alternators
Voltage: 24, kW 5.2, Mount. flange 92.00, Drive dist. 21.00, Dist./back 304.00, Dist./front 63.60, No. of teeth 10, B+ M8, Gear type DD, Dist. 145.35, Dist. 2 103.50, Dist. 3 103.50, Rotation: CR, No./mount. holes 3 (0), Drive Type: Steel, Total Length: 166.00, Oil sealed No, Waterproof No, Source Prestolite

111009 - Alternator (111009)

Brands > 5 Star , Trucks, Trailers and Buses > Starters & Alternators
Voltage: 28, Amp: 35, Terminal W, Bracket Hole: 10.20, Belt. adj. bracket hole 8.24, Width/Holder Arm: 27.25, Belt. adj. brackethole pos. 5, Mount. Bracket Dist.: 66.00, Pulley Dia.: 94.00, Pulley Dist.: 51.70, Grooves/Pulley: 1, Radius: >85, Radius: 90.70, B+ Position: M6, Rotation: CR, Regulator Plug: or plug PL_NA, Blower: EF, Pulley P, Total Length: 174.00, Source Magneton

111020 - Starter (111020)

Brands > 5 Star , Industrial > Starters
Voltage: 24, kW 7.5, Mount. flange 92.00, Drive dist. 47.00, Dist./back 302.25, Dist./front 103.80, No. of teeth 12, B+ M10, Gear type GR, Dist. 128.55, Dist. 2 128.55, Dist. 3 128.55, Rotation: CR, No./mount. holes 3 (0), Drive Type: Steel, Remarks w/ safety switch., Total Length: 407.00, Oil sealed Yes, Waterproof No, Source Nikko

111086 - Alternator (111086)

Brands > 5 Star , Automotive > Starters & Alternators
Voltage: 14, Amp: 65, Bracket Hole: 8.25, Belt. adj. bracket hole M8, Width/Holder Arm: 10.80, Belt. adj. brackethole pos. 10, Mount. Bracket Dist.: 81.00, Pulley Dia.: 63.60, Pulley Dist.: 34.60, Grooves/Pulley: 1, Radius: 86.80, Radius: 86.70, B+ Position: Plug, Rotation: CR, Regulator Plug: or plug PL22, Blower: IF, Pulley P, Total Length: 170.00, Source Mahle Letrika

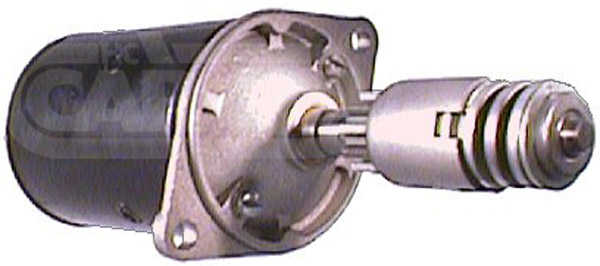

111102 - Starter (111102)

Brands > 5 Star , Automotive > Starters & Alternators
Voltage: 12, kW 0.8, Mount. flange 88.85, Drive dist. 41.00, Dist./back 172.45, Dist./front 137.40, No. of teeth 10, B+ M8, Gear type DD, Dist. 114.15, Rotation: CR, No./mount. holes 2 (0), Clutch type Dry, Drive Type: Steel, Total Length: 310.80, Oil sealed No, Waterproof No, Source Lucas

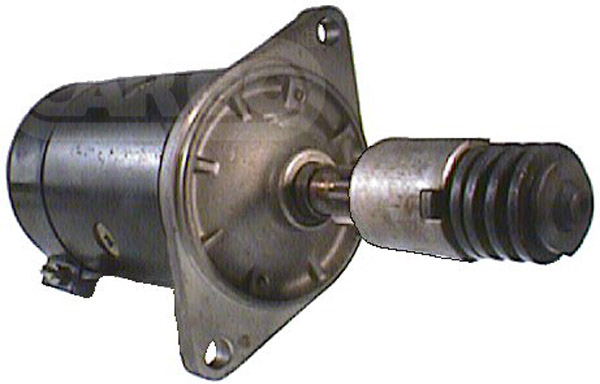

111103 - Starter (111103)

Brands > 5 Star , Automotive > Starters & Alternators
Voltage: 12, kW 0.8, Mount. flange 88.80, Drive dist. 60.35, Dist./back 173.55, Dist./front 138.00, No. of teeth 9, B+ M8, Gear type DD, Dist. 125.45, Rotation: CR, No./mount. holes 2 (0), Drive Type: Steel, Total Length: 321.50, Oil sealed No, Waterproof No, Source Lucas

111168 - Alternator (111168)

Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators
Voltage: 14, Amp: 55, Terminal W, Bracket Hole: 8.20, Belt. adj. bracket hole 8.20, Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 57, Belt. adj. brackethole pos. 60, Pulley Dia.: 72.00, Pulley Dist.: 84.00, Grooves/Pulley: 1, Radius: 85.75, Radius: 88.00, Radius: 87.50, B+ Position: M6, Rotation: ACR, Regulator Plug: or plug PL_NA, Blower: EF, Pulley P, Belt. adj. bracket hole 8.20, Total Length: 169.00, Source Magneton
