Electrical Parts & Engine Management

Electrical Parts & Engine Management Subcategories - Please select

Acoustic Warning, Assortments, Cabin Heaters, Camera & Parking Sensors, Dashboard Gauges, Diesel Parts, Fans & Blowers, Filters & Filter Parts, Ignition Components, Power Management Components, Pumps & Pump Parts, Radio Accessories, Solenoids, Switches, Switches & Sensors - Engine Management, Wiper Systems
070107 - Fuel Pump

070107 - Fuel Pump (70107)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type Universal, Pressure/bar 0.35, Capacity - l/h 130, Fuel Gasoline, diesel, ethanol, methanol, Remarks Hose nipple 8 mm. Suction 1.5 mtr. Connectors can be rotated. Fitting instruction included.

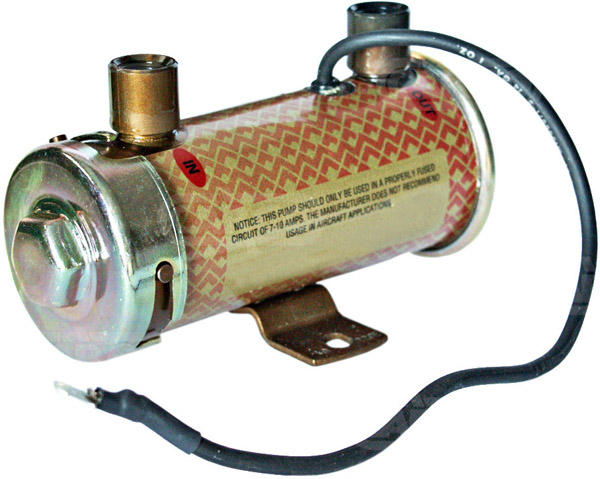

070134 - Fuel Pump

070134 - Fuel Pump (70134)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type Universal, Pressure/psi 4-5, Capacity - l/h 136, Servicing New-Holland, Same, Remarks Filter: HC-CARGO 070177., Thread In 1/4-18"

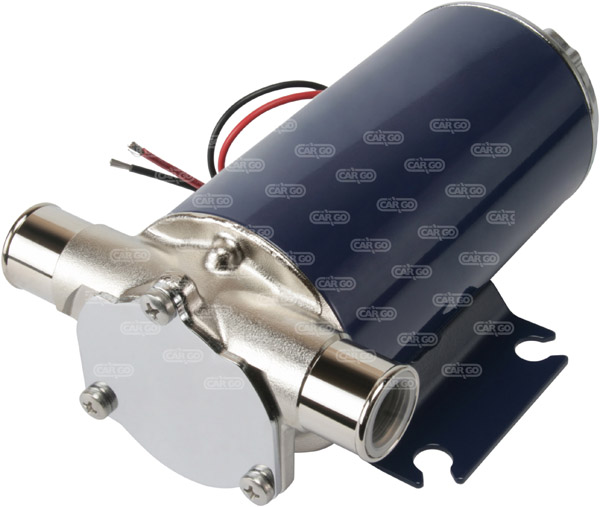

070144 - Water Pump

070144 - Water Pump (70144)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 2 Impeller, Remarks Model UP1-N. Self priming (1.5 m) electric water pump w/ self-lubricating flexible impeller for prolonged service life and better performance. Pump body made of brass w/ stainless steel shaft and a rubber lip seal. 1/2" BSP inner thread and ID: 25 mm bore hose connections. Main application: as a bilge pump., Capacity - l/min 35, Hose connection mm 25, Pump housing Brass, Pump shaft Stainless steel, Impeller Rubber, Non return valve Yes, Pressure/psi 11.6, Dim. mm 176x120x94, Pressure/bar 0.8, Amp: 20, Drawing 070144t, ISO norm 1 8849/8846

070145 - Water Pump

070145 - Water Pump (70145)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type 1 Water, Type 2 Impeller, Remarks Model UP1-N. Self priming (1.5 m) electric water pump w/ self-lubricating flexible impeller for prolonged service life and better performance. Pump body made of brass w/ stainless steel shaft and a rubber lip seal. 1/2" BSP inner thread and ID: 25 mm bore hose connections. Main application: as a bilge pump., Capacity - l/min 35, Hose connection mm 25, Pump housing Brass, Pump shaft Stainless steel, Impeller Rubber, Non return valve Yes, Pressure/psi 11.6, Dim. mm 176x120x94, Pressure/bar 0.8, Amp: 15, Drawing 070145t, ISO norm 1 8849/8846

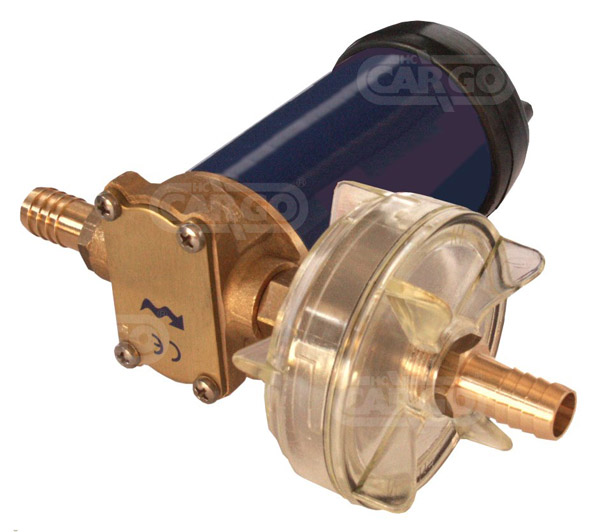

070147 - Fluid Pump

070147 - Fluid Pump (70147)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 2 Gear, Remarks Model UP/3. self-priming 1.5 m. Electric pump w/ bronze gears for transfer of various liquids, complete w/ inline filter. Pump body made of brass w/ stainless steel shaft and a rubber lip seal. 3/8" BSP w/ brass connection for I.D. 14 mm inner tubing., Servicing Main application: transfer of diesel fuel, water antifreeze etc., Capacity - l/min 14, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion Brass, Pressure/psi 29, Dim. mm 163x166x95, Filter w/, Pressure/bar 2, Weight in kg. 1.4, Amp: 10, Drawing 070147t

070148 - Fluid Pump

070148 - Fluid Pump (70148)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type 2 Gear, Remarks Model UP/3. self-priming 1.5 m. Electric pump w/ bronze gears for transfer of various liquids, complete w/ inline filter. Pump body made of brass w/ stainless steel shaft and a rubber lip seal. 3/8" BSP w/ brass connection for I.D. 14 mm inner tubing., Servicing Main application: transfer of diesel fuel, water antifreeze etc., Capacity - l/min 14, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion Brass, Pressure/psi 29, Dim. mm 163x166x95, Filter w/, Pressure/bar 2, Weight in kg. 1.4, Amp: 5, Drawing 070148t

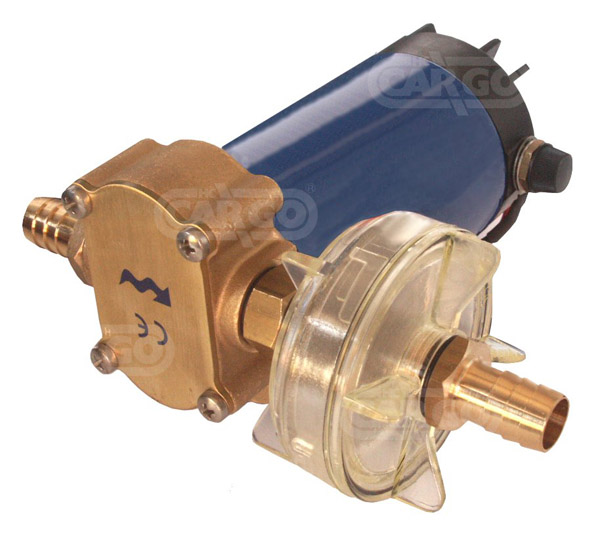

070149 - Fluid Pump

070149 - Fluid Pump (70149)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Fluid, Type 2 Gear, Remarks Self-priming electric pump w/ helical bronze gears, complete with in-line filter. Nickel plated brass body w/ stainless steel shaft. Ports: 1/2” BSP w/ brass connection for Ø 16 mm inner tubing., Servicing Main application: transfer of diesel fuel, water antifreeze etc., Capacity - l/min 26, Hose connection mm 16, Pump housing Brass, Pump shaft Stainless steel, Pinion Brass, Pressure/psi 29, Dim. mm 199x174x108, Filter w/, Pressure/bar 2, Weight in kg. 3.1, Amp: 15, Drawing 070149t

070150 - Fluid Pump

070150 - Fluid Pump (70150)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type 2 Gear, Remarks Self-priming electric pump w/ helical bronze gears, complete with in-line filter. Nickel plated brass body w/ stainless steel shaft. Ports: 1/2” BSP w/ brass connection for Ø 16 mm inner tubing., Servicing Main application: transfer of diesel fuel, water antifreeze etc., Capacity - l/min 26, Hose connection mm 16, Pump housing Brass, Pump shaft Stainless steel, Pinion Brass, Pressure/psi 29, Dim. mm 199x174x108, Filter w/, Pressure/bar 2, Weight in kg. 3.1, Amp: 7.5, Drawing 070150t

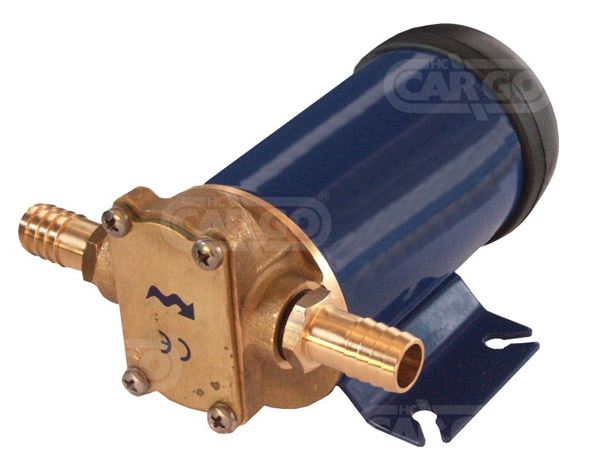

070151 - Fluid Pump

070151 - Fluid Pump (70151)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Fluid, Type 2 Gear, Remarks Model UP3/ oil. Self-priming 1 m. Electrical gear pump particularly suitable for the transfer of lubricating oils or viscous liquids. Complete w/ two brass connections for 14 mm inner tube and one additional quick-fit for 8 mm external tubing. The pump can be used for extracting lubricating oil out of oil sumps of engines. Pump body made of brass w/ bronze gears, stainless steel shaft and a rubber lip seal., Capacity - l/min 5.5, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion Bronze, Gasket Rubber, Non return valve Yes, Pressure/psi 29, Dim. mm 139x108x86, Weight in kg. 1.4, Amp: 7.5, Drawing 070151t

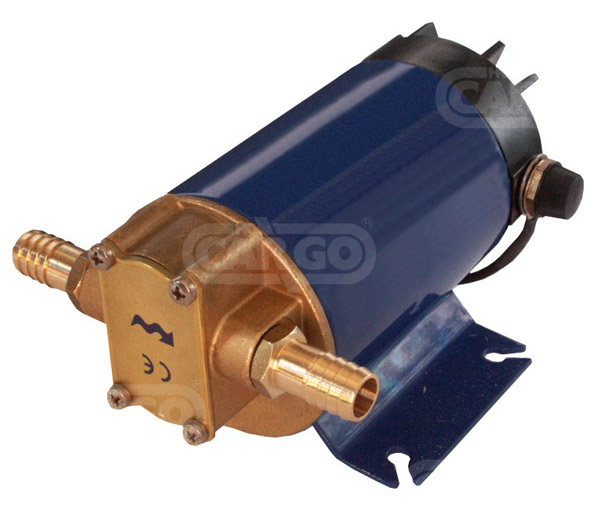

070152 - Fluid Pump

070152 - Fluid Pump (70152)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Fluid, Type 2 Gear, Remarks Model UP6/ oil. Self-priming 1.5 m. Electrical gear pump particularly suitable for the transfer of lubricating oils or viscous liquids. Professional model complete w/ two brass connections for 14 mm inner tube and one additional quick-fit for 8 mm external tubing. The pump can be used for extracting lubricating oil out of oil sumps of engines. Pump body made of brass w/ bronze gears, stainless steel shaft and a rubber lip seal., Capacity - l/min 8, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion Bronze, Pressure/psi 29, Dim. mm 166x117x94, Pressure/bar 2, Weight in kg. 2.5, Amp: 10, Drawing 070152t

070153 - Water Pump

070153 - Water Pump (70153)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 2 Gear, Remarks Model UP3/A. Self priming electric gear pump equipped w/ pressure switch, non-return valve to be used as automatic pump for water pressure system on boats, mobile homes etc. Bronze gears and rubber lip seal., Capacity - l/min 14, Hose connection mm 13, Pump housing Brass, Pump shaft Stainless steel, Pinion PTFE, Non return valve Yes, Pressure/psi 29, Dim. mm 163x249x118, Filter w/, Pressure/bar 2, Weight in kg. 2.2, Amp: 10, Drawing 070153t

070154 - Bilge Pump

070154 - Bilge Pump (70154)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Bilge, Remarks Model UP500. Completely submersible bilge pump. Compact design w/ ABS material housing, corosion resistant. Shaft seal made of ceramic and graphite which ensures lubrication and leak resistance. Water inlet strainer slots will screen particles present in the bilge allowing easy running. Pump body can be dismantled by a simple snap-off movement for easy inspection and cleaning., Lift height m 4, Capacity - l/min 32, Hose connection mm 19, Pump housing ABS plastic, Pump shaft Stainless steel, Gasket Ceramic, Pressure/psi 6.5, Dim. mm 94.5x59, Pressure/bar 0.45, Weight in kg. 0.4, Amp: 5, Drawing 070154t, ISO norm 1 8849/8846

070155 - Bilge Pump

070155 - Bilge Pump (70155)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Bilge, Remarks Model UP1000. Completely submersible bilge pump. Compact design w/ ABS material housing, corosion resistant. Shaft seal made of ceramic and graphite which ensures lubrication and leak resistance. Water inlet strainer slots will screen particles present in the bilge allowing easy running. Pump body can be dismantled by a simple snap-off movement for easy inspection and cleaning., Lift height m 4, Capacity - l/min 63, Hose connection mm 28.6, Pump housing ABS plastic, Pump shaft Stainless steel, Gasket Ceramic, Pressure/psi 6.5, Dim. mm 124.7x78, Pressure/bar 0.45, Weight in kg. 0.8, Amp: 10, ISO norm 1 8849/8846

070156 - Bilge Pump

070156 - Bilge Pump (70156)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Bilge, Remarks Model UP1500. Completely submersible bilge pump. Compact design w/ ABS material housing, corosion resistant. Shaft seal made of ceramic and graphite which ensures lubrication and leak resistance. Water inlet strainer slots will screen particles present in the bilge allowing easy running. Pump body can be dismantled by a simple snap-off movement for easy inspection and cleaning., Lift height m 4, Capacity - l/min 95, Hose connection mm 26.5, Pump housing ABS plastic, Pump shaft Stainless steel, Gasket Ceramic, Pressure/psi 6.5, Dim. mm 160x96, Pressure/bar 0.45, Weight in kg. 1.3, Amp: 20, Drawing 070156t, ISO norm 1 8849/8846

070160 - Automatic Float Switch

070160 - Automatic Float Switch (70160)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12/24, Remarks Made of corrosion resistant materials., Dim. mm 113x83x62, Floating switch w/, Height: - open 57, Height: - closed 22, Amp: 10

070161 - Fuel Pump

070161 - Fuel Pump (70161)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type Universal, Pressure/psi 1.4-5.7, Pressure/kg. 0.1-0.4, Capacity - l/h 80-150, Remarks Hose nipple 8 mm.

070162 - Diesel Transfer/Filter Kit

070162 - Diesel Transfer/Filter Kit (70162)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type 1 Fluid, Type 2 Gear, Remarks Includes: 2.5 m suction hose. 2.5 m pressure hose w/ gun. Wired connection w/ alligator clips. Switch on the pump. Bypass valve on the pump ensures that it is not overloaded by closed gun. Not to gasoline., Capacity - l/min 45, Hose connection mm 25, Impeller Steel, Pressure/psi 17.4, Dim. mm 210x161x120, Filter w/, Pressure/bar 1.2, Amp: 15

070172 - Water Pump

070172 - Water Pump (70172)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type 1 Water, Type 2 Gear, Remarks Model UP4/A. Self priming electric gear pump equipped w/ pressure switch, non-return valve to be used as automatic pump for water pressure system on boats, mobile homes etc. Bronze gears and rubber lip seal., Capacity - l/min 14, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion PTFE, Non return valve Yes, Pressure/psi 29, Dim. mm 163x249x118, Filter w/, Pressure/bar 2, Weight in kg. 2.2, Amp: 5, Drawing 070172t

070173 - Fluid Pump

070173 - Fluid Pump (70173)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type 1 Fluid, Type 2 Gear, Remarks Model UP6 w/ oil. Self-priming 1.5 m. Electrical gear pump particularly suitable for the transfer of lubricating oils or viscous liquids. Professional model complete w/ two brass connections for 14 mm inner tube and one additional quick-fit for 8 mm external tubing. The pump can be used for extracting lubricating oil out of oil sumps of engines., Capacity - l/min 8, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion Bronze, Impeller Rubber, Pressure/psi 29, Dim. mm 166x117x94, Pressure/bar 2, Weight in kg. 2.5, Amp: 7.5, Drawing 070173t

070175 - Diesel Transfer/Filter Kit

070175 - Diesel Transfer/Filter Kit (70175)

Electrical Parts & Engine Management > Pumps & Pump Parts , Trucks, Trailers and Buses > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 24, Type 1 Fluid, Remarks 2.5 m suction hose w/ filter. 2.5 m pressure hose w/ gun. 2 m cable w/ alligator clips. Switch on the pump. Bypass valve on the pump ensure against overloading. Not for gasoline., Capacity - l/min 45.1, Hose connection mm 25, Pressure/psi 17.4, Dim. mm 210x161x120, Filter w/, Pressure/bar 1.2, Amp: 7.5, Drawing 070175

070177 - Filter

070177 - Filter (70177)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Servicing HC-CARGO 070003, 070004, 070058, 070134

070181 - Hose Nipple

070181 - Hose Nipple (70181)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management
Hose ID: mm 8, Thread mm R1/8, Remarks 90°., Servicing HC-CARGO 070003, 070004, 070058

070182 - Brush Set

070182 - Brush Set (70182)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Length mm 18.1, Thickness mm 5.6, Height: mm 8.6, Servicing HC-CARGO 070144, -145, -149, -150, -152

070184 - Fuel Pump

070184 - Fuel Pump (70184)

Electrical Parts & Engine Management > Pumps & Pump Parts , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management
Voltage: 12, Type Universal, Pressure/bar 0.15, Capacity - l/h 120, Fuel Gasoline, diesel, ethanol, methanol, Servicing VW marine, Remarks Hose nipple 8 mm. Waterproof. Suction 1 mtr. Connectors can be rotated.
