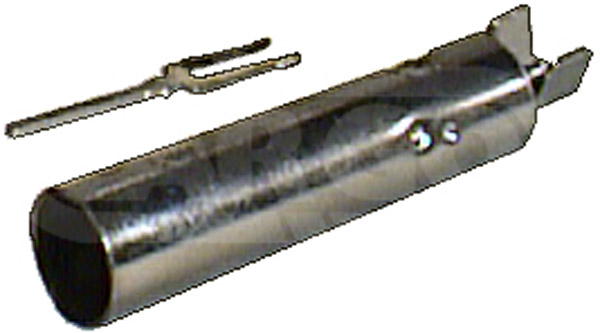

	040095 - Aerial Plug (40095) Outlet > Electrical Parts & Engine Management Male/female Female

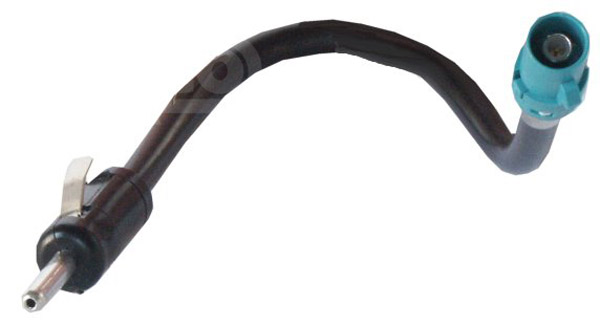

	040207 - Adapter Cable (40207) Outlet > Electrical Parts & Engine Management Remarks Fakra-DIN.

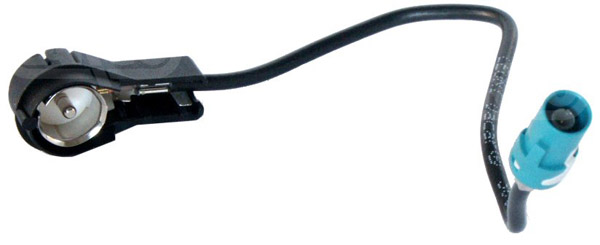

	040208 - Adapter Cable (40208) Outlet > Electrical Parts & Engine Management Remarks Fakra-ISO.
	070157 - Bilge Pump (70157) Outlet > Electrical Parts & Engine Management , Automotive > Electrical Parts & Engine Management , Agriculture > Electrical Parts & Engine Management Voltage: 12, Type 1 Bilge, Remarks Model UP2000. Completely submersible bilge pump. Compact design w/ ABS material housing, corosion resistant. Shaft seal made of ceramic and graphite which ensures lubrication and leak resistance. Water inlet strainer slots will screen particles present in the bilge allowing easy running. Pump body can be dismantled by a simple snap-off movement for easy inspection and cleaning., Lift height m 4, Capacity - l/min 126, Hose connection mm 31.8, Pump housing ABS plastic, Pump shaft Stainless steel, Gasket Ceramic, Pressure/psi 6.5, Dim. mm 200x96, Pressure/bar 0.45, Weight in kg. 1.8, Amp: 25, Drawing 070157t, ISO norm 1 8849/8846

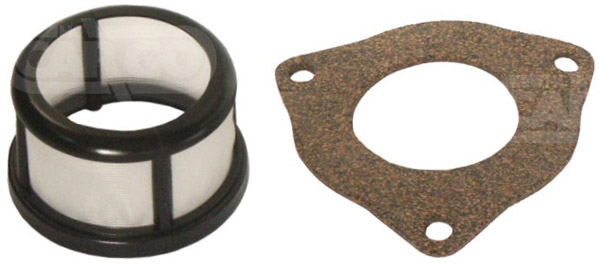

	070183 - Filter Kit (70183) Outlet > Electrical Parts & Engine Management Filter type Insert, Remarks For HC-CARGO 070143., Servicing Thermo King/Carrier pump 6103 W

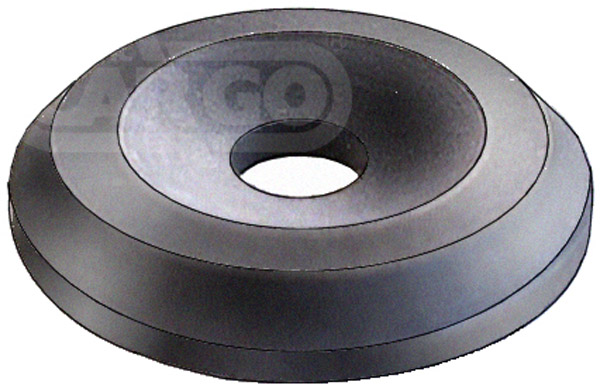

	080039 - Flame Arrester (80039) Outlet > Electrical Parts & Engine Management OD: mm 23.6, ID: mm 5.3, Thickness mm 3.5, Material Steel, Servicing Bosch

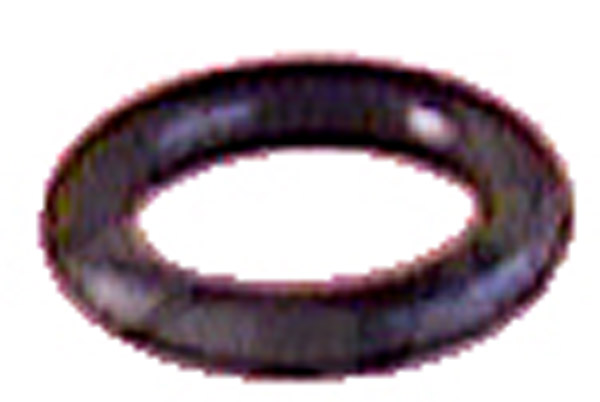

	080063 - O-ring (80063) Outlet > Electrical Parts & Engine Management ID: 5, Thickness mm 1.45, Remarks For feed pump., Servicing Bosch

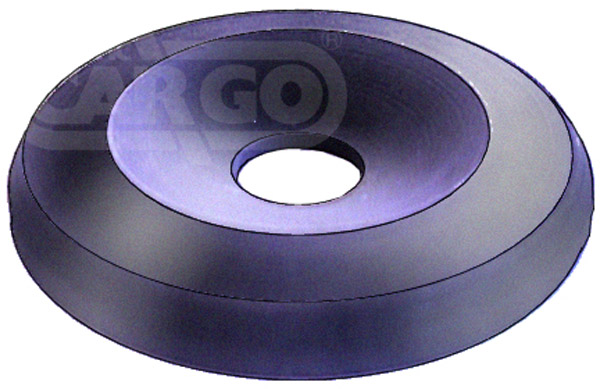

	080385 - Flame Arrester (80385) Outlet > Electrical Parts & Engine Management OD: mm 24.6, ID: mm 8.25, Thickness mm 3.8, Material Steel

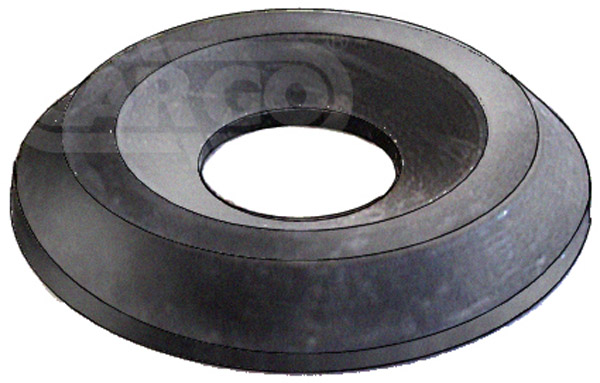

	080386 - Flame Arrester (80386) Outlet > Electrical Parts & Engine Management OD: mm 23.75, ID: mm 5.55, Thickness mm 3.45, Material Steel

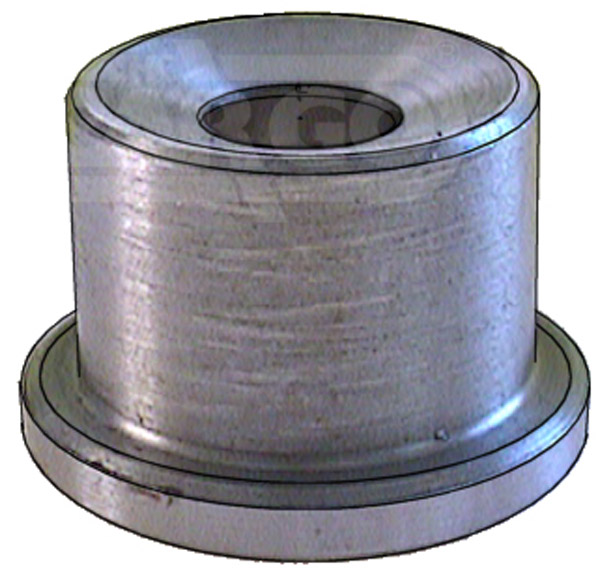

	080409 - Flame Arrester (80409) Outlet > Electrical Parts & Engine Management OD: mm 21.5, ID: mm 7.35, Thickness mm 13.4, Material Steel

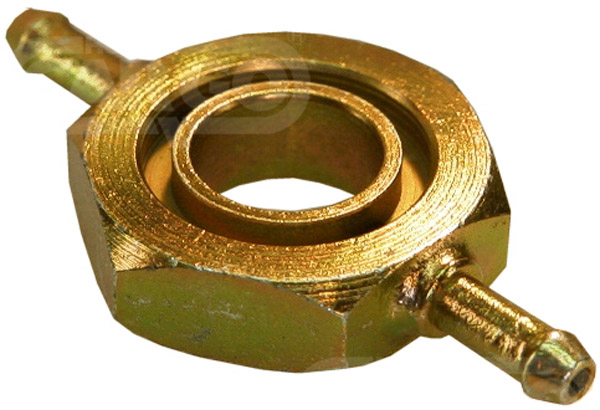

	080583 - Eye Union Overflow (80583) Outlet > Electrical Parts & Engine Management No./nipple 2, Overflow washers Brass, Remarks Spanner size 27 mm.

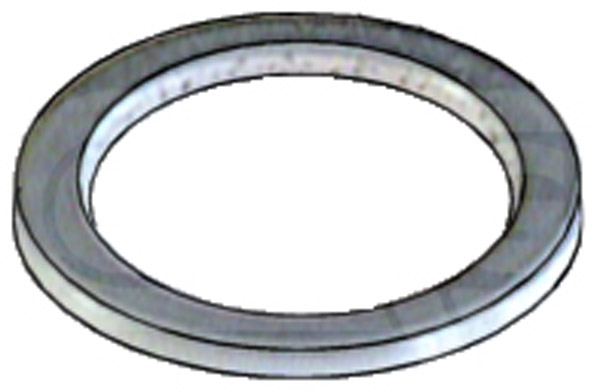

	080733 - Flame Arrester (80733) Outlet > Electrical Parts & Engine Management OD: mm 11.1, ID: mm 8.2, Thickness mm 1, Material Aluminium

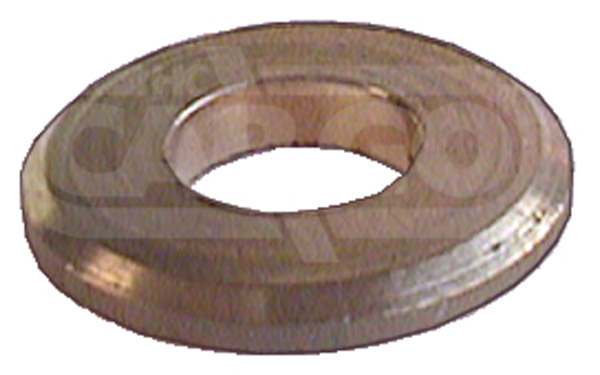

	080764 - Flame Arrester (80764) Outlet > Electrical Parts & Engine Management OD: mm 17, ID: mm 7.7, Thickness mm 2.6, Material Brass
	080879 - Adjustment Shims (80879) Outlet > Electrical Parts & Engine Management , Automotive > Electrical Parts & Engine Management Shims type Nozzles, OD: mm 8.5, ID: mm 3, Thickness mm 0.95, Servicing Bosch

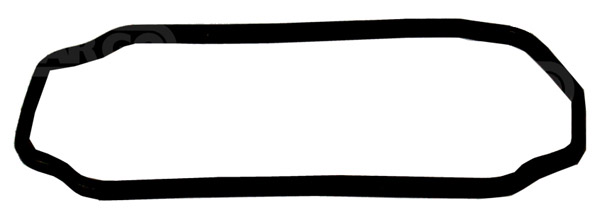

	080972 - Gasket (80972) Outlet > Electrical Parts & Engine Management

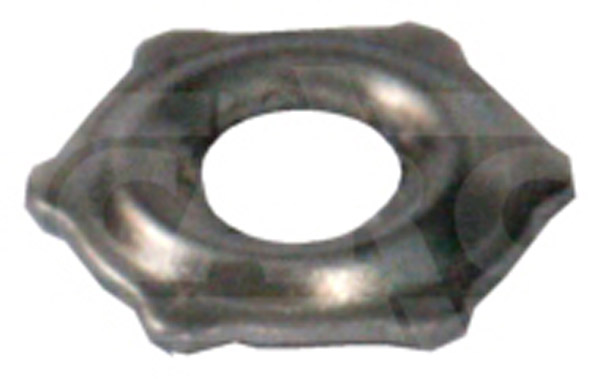

	080989 - Flame Arrester (80989) Outlet > Electrical Parts & Engine Management OD: mm 9.5/10.8, ID: mm 4, Thickness mm 1.3, Material Steel

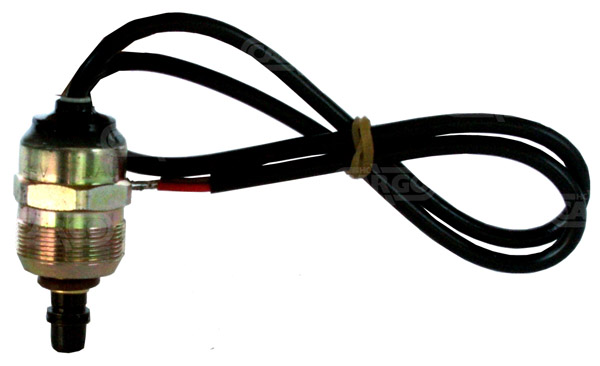

	081001 - Solenoid Stop (81001) Outlet > Electrical Parts & Engine Management Voltage: 24, Manufacturer: Bosch VE, Function Pull, Elect. connection Cable, Voltage: 2 24, Remarks Insulated., Filter w/o, Insulated return Yes

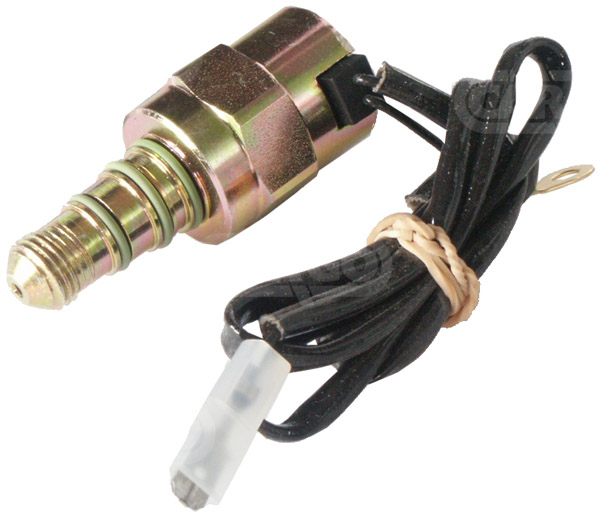

	081118 - Actuator (81118) Outlet > Electrical Parts & Engine Management Voltage: 12
	100281 - Glow Plug (100281) Outlet > Electrical Parts & Engine Management Voltage: 12, Voltage: /glow plug 11, Amp: 10, Length 1 mm 101, Length 2 mm 28, Mount. thread size M10-1.25, Glow duration sec <10, Drawing GLOW, Bolt size mm 12
	100288 - Glow Plug (100288) Outlet > Electrical Parts & Engine Management Voltage: 12, Voltage: /glow plug 12, Amp: 11, Length 1 mm 86, Length 2 mm 22, Mount. thread size M10-1.25, Glow duration sec 7-10, Drawing GLOW, Bolt size mm 12
	100539 - Glow Plug (100539) Outlet > Electrical Parts & Engine Management Voltage: 12, Voltage: /glow plug 11.5, Amp: 10, Length 1 mm 83.0, Length 2 mm 30.0, Glow duration sec 8, Post heating Yes, Drawing GLOW, Double coil w/, Length 3 mm 128.4, Connection thread mm M4, Thread glow Plug mm M10-1, Bolt size mm 10, OD: mm 5.0
	100540 - Glow Plug (100540) Outlet > Electrical Parts & Engine Management , Automotive > Electrical Parts & Engine Management Voltage: 12, Voltage: /glow plug 10.5, Amp: 10, Length 1 mm 53.0, Length 2 mm 27.5, Glow duration sec 8, Post heating Yes, Drawing GLOW, Double coil w/, Length 3 mm 95.9, Connection thread mm M4, Thread glow Plug mm M10-1, Bolt size mm 12, OD: mm 5.0
	100597 - Injector (100597) Outlet > Electrical Parts & Engine Management Servicing Yanmar air cooled single cylinder, Engine type: YDLL YPFE-M, fittet w/ nozzle DLLA 150P 224, Opening pressure: 196 bar
	150168 - Ignition Module (150168) Outlet > Electrical Parts & Engine Management Replaces Ford, Type Amp: lifier, Terminals 7, Plug no. 1 Kl31/Ground, Plug no. 2 KI/C, Plug no. 3 KI15, Plug no. 4 HB+, Plug no. 5 SP, Plug no. 6 PIP, Plug no. 7 Kl31/Ground, Plug diagram 2 P10stik6
