070157 - Bilge Pump (70157)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, Type 1 Bilge, Remarks Model UP2000. Completely submersible bilge pump. Compact design w/ ABS material housing, corosion resistant. Shaft seal made of ceramic and graphite which ensures lubrication and leak resistance. Water inlet strainer slots will screen particles present in the bilge allowing easy running. Pump body can be dismantled by a simple snap-off movement for easy inspection and cleaning., Lift height m 4, Capacity - l/min 126, Hose connection mm 31.8, Pump housing ABS plastic, Pump shaft Stainless steel, Gasket Ceramic, Pressure/psi 6.5, Dim. mm 200x96, Pressure/bar 0.45, Weight in kg. 1.8,
Amp: 25, Drawing 070157t, ISO norm 1 8849/8846
Electrical specifications (Electrical pumps and accessories) | ||||
| Voltage | 12 | |||
| Amp | 25 | |||
Physical specifications (Electrical pumps and accessories) | ||||
| Type | 1 Bilge | |||
| Lift | height m 4 | |||
| Capacity | - l/min 126 | |||
| Hose | connection mm 31.8 | |||
| Pump | housing ABS plastic | |||
| Pump | shaft Stainless steel | |||
| Gasket | Ceramic | |||
| Pressure/psi | 6.5 | |||
| Dim. | mm 200x96 | |||
| Pressure/bar | 0.45 | |||
| Weight | in kg. 1.8 | |||
| ISO | norm 1 8849/8846 | |||
Further information (Electrical pumps and accessories) | ||||
| Remarks | Model UP2000. Completely submersible bilge pump. Compact design w/ ABS material housing, corosion resistant. Shaft seal made of ceramic and graphite which ensures lubrication and leak resistance. Water inlet strainer slots will screen particles present in the bilge allowing easy running. Pump body can be dismantled by a simple snap-off movement for easy inspection and cleaning. | |||

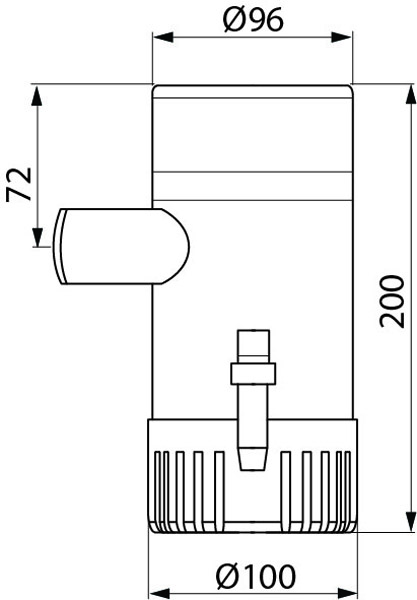

| Drawing | 070157t | |||
