070172 - Water Pump (70172)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 24, Type 1 Water, Type 2 Gear, Remarks Model UP4/A. Self priming electric gear pump equipped w/ pressure switch, non-return valve to be used as automatic pump for water pressure system on boats, mobile homes etc. Bronze gears and rubber lip seal., Capacity - l/min 14, Hose connection mm 14, Pump housing Brass, Pump shaft Stainless steel, Pinion PTFE, Non return valve Yes, Pressure/psi 29, Dim. mm 163x249x118, Filter w/, Pressure/bar 2, Weight in kg. 2.2,

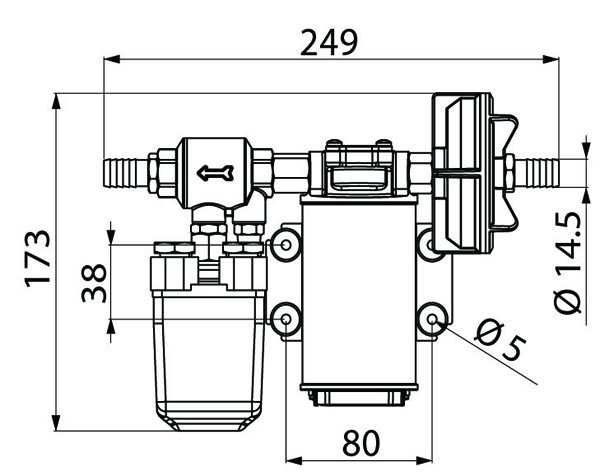

Amp: 5, Drawing 070172t
Electrical specifications (Electrical pumps and accessories) | ||||
| Voltage | 24 | |||
| Amp | 5 | |||
Physical specifications (Electrical pumps and accessories) | ||||
| Type | 1 Water | |||
| Type | 2 Gear | |||
| Capacity | - l/min 14 | |||
| Hose | connection mm 14 | |||
| Pump | housing Brass | |||
| Pump | shaft Stainless steel | |||
| Pinion | PTFE | |||
| Non | return valve Yes | |||
| Pressure/psi | 29 | |||
| Dim. | mm 163x249x118 | |||
| Filter | w/ | |||
| Pressure/bar | 2 | |||
| Weight | in kg. 2.2 | |||
Further information (Electrical pumps and accessories) | ||||
| Remarks | Model UP4/A. Self priming electric gear pump equipped w/ pressure switch, non-return valve to be used as automatic pump for water pressure system on boats, mobile homes etc. Bronze gears and rubber lip seal. | |||
| Drawing | 070172t | |||
