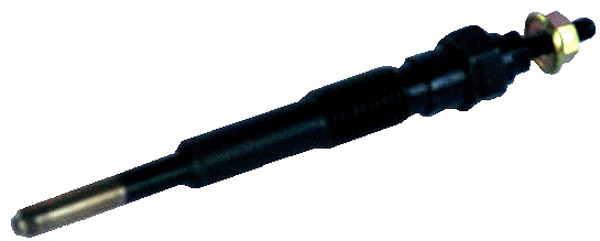

100256 - Glow Plug (100256)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 8.5,
Amp: 9, Length 1 mm 53.0, Length 2 mm 28.0, Glow duration sec 20, Drawing GLOW, Length 3 mm 101.0, Connection thread mm M4, Thread glow Plug mm M10-1.25, Bolt size mm 12,
OD: mm 5.0
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 8.5 | |||
| Amp | 9 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 53.0 | |||
| Length | 2 mm 28.0 | |||
| Glow | duration sec 20 | |||
| Length | 3 mm 101.0 | |||
| A | Connection thread mm M4 | |||
| B | Thread glow Plug mm M10-1.25 | |||
| H | Bolt size mm 12 | |||
| C | OD mm 5.0 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100221148 | BERU | |||
| 0250202004 | BOSCH | |||
| 067100-1170 | DENSO | |||
| 067100-1171 | DENSO | |||
| 067100-1175 | DENSO | |||
| 067100-1350 | DENSO | |||
| 19850-56021 | TOYOTA | |||
| 19850-56022 | TOYOTA | |||
| 19850-68030 | TOYOTA | |||
| 19850-97309-000 | DAIHATSU | |||
UNISTART Price: £7.11
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Daihatsu, Passenger Car EU | Taft | 2.5 | Diesel | 1978 08 | 1982 08 | 45 | 61 | 2530 | 4 | Diesel | DG | 4WD | Taft | |
| Daihatsu, Passenger Car EU | Taft | 2.5 | Diesel | 1978 08 | 1982 08 | 45 | 61 | 2530 | 4 | Diesel | DG | 4WD | Taft | |
| Daihatsu, Passenger Car EU | Taft | 2.5 | Diesel | 1978 08 | 1982 08 | 45 | 61 | 2530 | 4 | Diesel | DG | 4WD | Taft |
