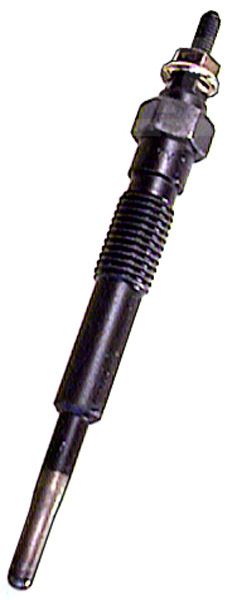

100257 - Glow Plug (100257)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 7,
Amp: 8.5, Length 1 mm 53.0, Length 2 mm 28.0, Glow duration sec 20, Drawing GLOW, Length 3 mm 101.0, Connection thread mm M4, Thread glow Plug mm M10-1.25, Bolt size mm 12,
OD: mm 5.0
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 7 | |||
| Amp | 8.5 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 53.0 | |||
| Length | 2 mm 28.0 | |||
| Glow | duration sec 20 | |||
| Length | 3 mm 101.0 | |||
| A | Connection thread mm M4 | |||
| B | Thread glow Plug mm M10-1.25 | |||
| H | Bolt size mm 12 | |||
| C | OD mm 5.0 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100226180 | BERU | |||
| 0250202051 | BOSCH | |||
| 067100-1430 | DENSO | |||
| 067100-1530 | DENSO | |||
| 19850-64010-000 | DAIHATSU | |||
| 19850-87701-000 | DAIHATSU | |||
| 557mj | BERU | |||
| 886mj | BERU | |||
| ch95 | CHAMPION | |||
| hds233 | LUCAS | |||
UNISTART Price: £8.73
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Camry | 2 | Diesel | 1986 11 | 1991 05 | 62 | 84 | 1975 | 4 | TD | 2C-T | Estate | Camry | |
| Toyota, Passenger Car EU | Carina | 2 | Diesel | 1988 03 | 1993 06 | 54 | 73 | 1974 | 4 | Diesel | 2C-L | Hatchback | Carina | |
| Toyota, Passenger Car EU | Carina | 2 | Diesel | 1987 12 | 1992 01 | 54 | 73 | 1975 | 4 | Diesel | 2C-L | Estate | Carina | |
| Toyota, Passenger Car EU | Camry | 1.8 | Diesel | 1984 10 | 1988 01 | 54 | 73 | 1840 | 4 | TD | 1C-TL | Hatchback | Camry | |
| Toyota, Passenger Car EU | Carina | 2 | Diesel | 1984 02 | 1988 05 | 50 | 68 | 1974 | 4 | Diesel | 2C-L | Hatchback | Carina | |
| Toyota, Passenger Car EU | Camry | 2 | Diesel | 1988 11 | 1991 05 | 63 | 86 | 1975 | 4 | TD | 2C-T | Estate | Camry | |
| Toyota, Passenger Car EU | Corolla | 1.8 | Diesel | 1983 01 | 1983 09 | 43 | 58 | 1839 | 4 | Diesel | 1C | Corolla | ||
| Toyota, Passenger Car EU | Camry | 1.8 | Diesel | 1983 11 | 1988 01 | 54 | 73 | 1840 | 4 | TD | 1C-TL | Camry | ||
| Toyota, Passenger Car EU | Corolla | 1.8 | Diesel | 1983 01 | 1983 09 | 48 | 65 | 1839 | 4 | Diesel | 1C | Hatchback | Corolla | |
| Toyota, Passenger Car EU | Camry | 2 | Diesel | 1986 11 | 1991 05 | 62 | 84 | 1975 | 4 | TD | 2C-T | Camry | ||
| Toyota, Passenger Car EU | Camry | 2 | Diesel | 1988 11 | 1991 05 | 63 | 86 | 1975 | 4 | TD | 2C-T | Camry | ||
| Toyota, Passenger Car EU | Corolla | 1.8 | Diesel | 1985 08 | 1987 08 | 47 | 64 | 1839 | 4 | Diesel | 1C-L | Hatchback | Corolla | |
| Toyota, Passenger Car EU | Carina | 2 | Diesel | 1984 02 | 1988 05 | 50 | 68 | 1974 | 4 | Diesel | 2C-L | Carina | ||
| Toyota, Passenger Car EU | Corolla | 1.8 | Diesel | 1983 06 | 1988 05 | 43 | 58 | 1840 | 4 | Diesel | 1C | DX, GL | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.8 | Diesel | 1983 05 | 1987 08 | 44 | 60 | 1839 | 4 | Diesel | 1C | Estate | Corolla | |
| Toyota, Passenger Car EU | Liteace | 1.8 | Diesel | 1985 10 | 1988 08 | 46 | 63 | 1839 | 4 | Diesel | 1C | Van | Liteace | |
| Toyota, Passenger Car EU | Corolla | 1.8 | Diesel | 1983 06 | 1987 08 | 47 | 64 | 1839 | 4 | Diesel | 1C-L | Hatchback | Corolla | |
| Toyota, Passenger Car EU | Carina | 2 | Diesel | 1985 12 | 1987 11 | 51 | 69 | 1974 | 4 | Diesel | 2C-L | Hatchback | Carina | |
| Toyota, Passenger Car EU | Carina | 1.8 | Diesel | 1982 04 | 1983 09 | 48 | 65 | 1840 | 4 | Diesel | 1C | Estate | Carina | |
| Toyota, Passenger Car EU | Carina | 1.8 | Diesel | 1982 04 | 1983 09 | 48 | 65 | 1840 | 4 | Diesel | 1C | Carina | ||
| Daihatsu, Passenger Car EU | Wildcat | 2.8 | Diesel | 1985 09 | 1987 04 | 65 | 88 | 2765 | 4 | TD | DL50 | Convertible | Wildcat | |
| Daihatsu, Passenger Car EU | Rocky | 2.8 | Diesel | 1991 09 | - | 75 | 102 | 2765 | 4 | TD | DL52 | Convertible | Rocky | |
| Daihatsu, Passenger Car EU | Charade | 1 | Diesel | 1983 10 | 1987 03 | 27 | 37 | 993 | 3 | Diesel | CL10 | Hatchback | Charade | |
| Daihatsu, Passenger Car EU | Rocky | 2.8 | Diesel | 1987 12 | 1993 04 | 67 | 91 | 2765 | 4 | TD | DL51 | Convertible | Rocky | |
| Daihatsu, Passenger Car EU | Wildcat | 2.8 | Diesel | 1985 09 | 1987 04 | 65 | 88 | 2765 | 4 | TD | DL50 | Wildcat | ||
| Daihatsu, Passenger Car EU | Rocky | 2.8 | Diesel | 1987 12 | 1993 04 | 67 | 91 | 2765 | 4 | TD | DL51 | Rocky | ||
| Daihatsu, Passenger Car EU | Rocky | 2.8 | Diesel | 1991 09 | - | 75 | 102 | 2765 | 4 | TD | DL52 | Rocky | ||
| Daihatsu, Passenger Car EU | Rocky | 2.8 | Diesel | 1993 05 | 1998 12 | 72 | 98 | 2765 | 4 | TD | DL52 | Rocky | ||
| Daihatsu, Passenger Car EU | Taft | 2.8 | Diesel | 1982 08 | 1985 02 | 51 | 69 | 2765 | 4 | Diesel | DL | 4WD | Taft |
