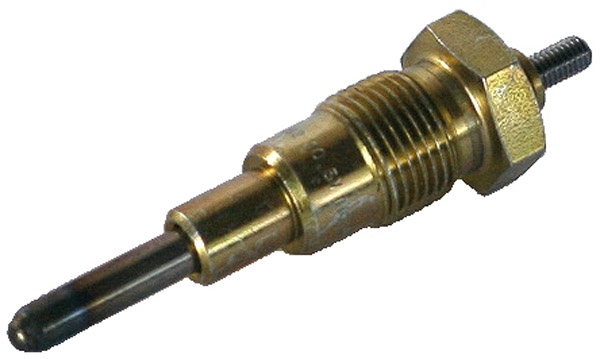

100262 - Glow Plug (100262)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12,
Voltage: /glow plug 10.5,
Amp: 10, Length 1 mm 47.5, Length 2 mm 25.0, Glow duration sec 20, Drawing GLOW, Length 3 mm 87.9, Connection thread mm M5, Thread glow Plug mm M18-1.5, Bolt size mm 21,
OD: mm 6.1

Electrical specifications (Glow plugs)
Voltage 12
Voltage/glow plug 10.5
Amp 10

Physical specifications (Glow plugs)
Length 1 mm 47.5
Length 2 mm 25.0
Glow duration sec 20
Length 3 mm 87.9
A Connection thread mm M5
B Thread glow Plug mm M18-1.5
H Bolt size mm 21
C OD mm 6.1

Further information (Glow plugs)
Drawing GLOW

Replacing
0100222302 BERU
0100222304 BERU
0100222307 BERU
0250200420 BOSCH
107mj BERU
108mj BERU
124mj BERU
171mj BERU
5414813 PEUGEOT
b-029 HKT

UNISTART Price: £7.11

Sorry, this item is out of stock.

The 100262 - Glow Plug is shown in: Electrical Parts & Engine Management > Diesel Parts , Automotive > Electrical Parts & Engine Management.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Peugeot, Passenger Car EU 504 2.1 Diesel 1971 02 1986 07 48 65 2112 4 Diesel XD4X90 504
Peugeot, Passenger Car EU 504 2.3 Diesel 1975 07 1986 07 51 69 2304 4 Diesel 134 (XD2) Estate 504
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Van J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Bus J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Van J7
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Bus J7
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Platform / Chassis J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Platform / Chassis J7
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Platform / Chassis J7
Peugeot, Passenger Car EU 504 1.9 Diesel 1973 03 1986 07 40 54 1948 4 Diesel XD4X88 504
Peugeot, Passenger Car EU 504 2.3 Diesel 1975 07 1983 12 51 69 2304 4 Diesel 134 (XD2) 504
Peugeot, Passenger Car EU 504 2.1 Diesel 1971 04 1986 07 48 65 2112 4 Diesel XD4X90 Estate 504
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Van J7
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Bus J7
Peugeot, Passenger Car EU 504 2.1 Diesel 1971 02 1986 07 48 65 2112 4 Diesel XD4X90 504
Peugeot, Passenger Car EU 504 2.3 Diesel 1975 07 1986 07 51 69 2304 4 Diesel 134 (XD2) Estate 504
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Van J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Bus J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Van J7
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Bus J7
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Platform / Chassis J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Platform / Chassis J7
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Platform / Chassis J7
Peugeot, Passenger Car EU 504 1.9 Diesel 1973 03 1986 07 40 54 1948 4 Diesel XD4X88 504
Peugeot, Passenger Car EU 504 2.3 Diesel 1975 07 1983 12 51 69 2304 4 Diesel 134 (XD2) 504
Peugeot, Passenger Car EU 504 2.1 Diesel 1971 04 1986 07 48 65 2112 4 Diesel XD4X90 Estate 504
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Van J7
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Bus J7
Peugeot, Passenger Car EU 504 2.1 Diesel 1971 02 1986 07 48 65 2112 4 Diesel XD4X90 504
Peugeot, Passenger Car EU 504 2.3 Diesel 1975 07 1986 07 51 69 2304 4 Diesel 134 (XD2) Estate 504
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Van J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Bus J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Van J7
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Bus J7
Peugeot, Passenger Car EU J7 2.1 Diesel - 1977 07 42 57 2112 4 Diesel XDP90 Platform / Chassis J7
Peugeot, Passenger Car EU J7 2.3 Diesel 1977 07 1980 03 49 67 2304 4 Diesel XD2P94 Platform / Chassis J7
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Platform / Chassis J7
Peugeot, Passenger Car EU 504 1.9 Diesel 1973 03 1986 07 40 54 1948 4 Diesel XD4X88 504
Peugeot, Passenger Car EU 504 2.1 Diesel 1971 04 1986 07 48 65 2112 4 Diesel XD4X90 Estate 504
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Van J7
Peugeot, Passenger Car EU J7 1.9 Diesel - 1978 07 40 55 1948 4 Diesel XDP88 Bus J7
