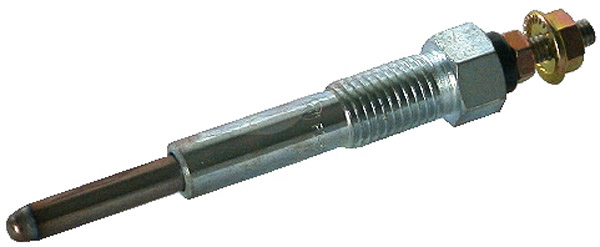

100292 - Glow Plug (100292)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 11,
Amp: 6, Length 1 mm 47, Length 2 mm 24, Glow duration sec 10, Drawing GLOW, Length 3 mm 89, Connection thread mm M4, Thread glow Plug mm M10-1.25, Bolt size mm 12,
OD: mm 5
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 11 | |||
| Amp | 6 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 47 | |||
| Length | 2 mm 24 | |||
| Glow | duration sec 10 | |||
| Length | 3 mm 89 | |||
| A | Connection thread mm M4 | |||
| B | Thread glow Plug mm M10-1.25 | |||
| H | Bolt size mm 12 | |||
| C | OD mm 5 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100226207 | BERU | |||
| 0250202085 | BOSCH | |||
| 1214311 | OPEL | |||
| 1214312 | OPEL | |||
| 592mj | BERU | |||
| 8-94319700-1 | ISUZU | |||
| 94319700 | OPEL | |||
| 946mj | BERU | |||
| hds345 | LUCAS | |||
| pi-58 | HKT | |||
UNISTART Price: £8.87
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1990 03 | 1995 11 | 60 | 82 | 1686 | 4 | TD | X17DT | Vectra A | ||
| Opel, Passenger Car EU | Corsa | 1.5 | Diesel | 1987 10 | 1992 11 | 37 | 50 | 1488 | 4 | Diesel | 15D (4EC1) | Corsa A | ||
| Opel, Passenger Car EU | Kadett | 1.5 | Diesel | 1988 07 | 1991 08 | 53 | 72 | 1488 | 4 | TD | 15DT (T4EC1) | Estate | Kadett E | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1990 03 | 1995 11 | 60 | 82 | 1686 | 4 | TD | 17DT | Vectra A | ||
| Opel, Passenger Car EU | Corsa | 1.5 | Diesel | 1987 09 | 1993 03 | 37 | 50 | 1488 | 4 | Diesel | 15D (4EC1) | Hatchback | Corsa A | |
| Opel, Passenger Car EU | Kadett | 1.5 | Diesel | 1988 07 | 1991 08 | 53 | 72 | 1488 | 4 | TD | 15DT (T4EC1) | Kadett E | ||
| Opel, Passenger Car EU | Campo | 2.2 | Diesel | 1991 08 | 1996 09 | 39 | 53 | 2238 | 4 | Diesel | C223 | Pick Up | 4x4 | Campo |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1990 03 | 1995 11 | 60 | 82 | 1686 | 4 | TD | X17DT | Hatchback | Vectra A | |
| Opel, Passenger Car EU | Corsa | 1.5 | Diesel | 1987 06 | 1989 04 | 37 | 50 | 1488 | 4 | Diesel | 15D (4EC1) | Van | Corsa A | |
| Opel, Passenger Car EU | Kadett | 1.7 | Diesel | 1989 01 | 1994 07 | 42 | 57 | 1700 | 4 | Diesel | 17D | Van | Combo | Kadett E |
| Opel, Passenger Car EU | Kadett | 1.5 | Diesel | 1988 07 | 1991 08 | 53 | 72 | 1488 | 4 | TD | 15DT (T4EC1) | Hatchback | Kadett E | |
| Opel, Passenger Car EU | Campo | 2.2 | Diesel | 1991 08 | 1996 09 | 39 | 53 | 2238 | 4 | Diesel | C223 | Pick Up | Campo | |
| Vauxhall, Passenger Car EU | Nova | 1.5 | Diesel | 1987 09 | 1993 03 | 37 | 50 | 1488 | 4 | Diesel | 15D | Hatchback | Nova A | |
| Vauxhall, Passenger Car EU | Novavan | 1.5 | Diesel | 1991 01 | 1994 10 | 37 | 50 | 1488 | 4 | Diesel | 15D (4EC1) | Van | Novavan | |
| Vauxhall, Passenger Car EU | Cavalier | 1.7 | Diesel | 1988 09 | 1995 11 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Cavalier | ||
| Vauxhall, Passenger Car EU | Nova | 1.5 | Diesel | 1987 09 | 1993 02 | 37 | 50 | 1488 | 4 | Diesel | 15D | Nova A | ||
| Vauxhall, Passenger Car EU | Cavalier | 1.7 | Diesel | 1988 09 | 1995 11 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Hatchback | Cavalier | |
| Vauxhall, Passenger Car EU | Brava | 2.2 | Diesel | 1991 08 | 1996 09 | 39 | 53 | 2238 | 4 | Diesel | C223 | Pick Up | 4x4 | Brava |
| Vauxhall, Passenger Car EU | Brava | 2.2 | Diesel | 1991 08 | 1996 09 | 39 | 53 | 2238 | 4 | Diesel | C223 | Pick Up | Brava | |
| Isuzu, Passenger Car EU | Gemini | 1.5 | Diesel | 1988 02 | 1990 12 | 37 | 50 | 1488 | 4 | Diesel | 4EC1 | Gemini | ||
| Isuzu, Passenger Car EU | Gemini | 1.5 | Diesel | 1988 02 | 1990 12 | 37 | 50 | 1488 | 4 | Diesel | 4EC1 | Hatchback | Gemini | |
| Isuzu, Passenger Car EU | Campo | 2.2 | Diesel | 1986 04 | 1990 12 | 39 | 53 | 2238 | 4 | Diesel | C223 | Pick Up | Campo | |
| Isuzu, Passenger Car EU | Campo | 2.2 | Diesel | 1983 01 | 1990 12 | 39 | 53 | 2238 | 4 | Diesel | C223 | Pick Up | 4WD | Campo |
