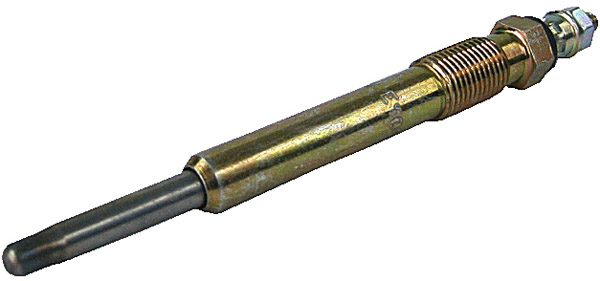

100533 - Glow Plug (100533)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 11,
Amp: 6-11, Length 1 mm 107, Length 2 mm 27.5, Mount. thread size M10-1, Glow duration sec 6, Post heating Yes, Drawing GLOW, Double coil w/, Bolt size mm 10
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 11 | |||
| Amp | 6-11 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 107 | |||
| Length | 2 mm 27.5 | |||
| Mount. | thread size M10-1 | |||
| Glow | duration sec 6 | |||
| Post | heating Yes | |||
| Double | coil w/ | |||
| H | Bolt size mm 10 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100226344 | BERU | |||
| 0250202032 | BOSCH | |||
| 59623c | PEUGEOT | |||
| 59623e | PEUGEOT | |||
| 59627f | PEUGEOT | |||
| 59627g | PEUGEOT | |||
| 8eg008497-231 | HELLA | |||
| 96236383 | PEUGEOT | |||
| 96389858 | PEUGEOT | |||
| gn027 | BERU | |||
UNISTART Price: £10.17
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Peugeot, Passenger Car EU | 406 | 2 | Diesel | 1999 02 | 2004 04 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | Estate | 406 | |
| Peugeot, Passenger Car EU | 406 | 2 | Diesel | 1999 02 | 2004 10 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Estate | 406 | |
| Peugeot, Passenger Car EU | 406 | 2 | Diesel | 2001 08 | 2004 05 | 79 | 107 | 1997 | 4 | HDi | RHS (DW10ATED) | FAP | 406 | |
| Peugeot, Passenger Car EU | 306 | 2 | Diesel | 1999 06 | 2002 04 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Estate | 306 | |
| Peugeot, Passenger Car EU | Boxer | 2 | Diesel | 2002 04 | - | 62 | 84 | 1997 | 4 | HDi | RHV (DW10UTD) | Bus | Boxer | |
| Peugeot, Passenger Car EU | 406 | 2.2 | Diesel | 2000 03 | 2004 10 | 98 | 133 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | Estate | 406 | |
| Peugeot, Passenger Car EU | 406 | 2.2 | Diesel | 2000 03 | 2004 12 | 98 | 133 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | Coupe | 406 | |
| Peugeot, Passenger Car EU | 307 | 2 | Diesel | 2000 08 | - | 79 | 107 | 1997 | 4 | HDi | RHS (DW10ATED4) | Hatchback | 307 | |
| Peugeot, Passenger Car EU | 406 | 2 | Diesel | 2001 08 | 2004 10 | 79 | 107 | 1997 | 4 | HDi | RHS (DW10ATED4) | Estate | FAP | 406 |
| Peugeot, Passenger Car EU | 406 | 2 | Diesel | 1998 06 | 2001 08 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | 406 | ||
| Peugeot, Passenger Car EU | 806 | 2 | Diesel | 1999 08 | 2002 08 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | MPV | 806 | |
| Peugeot, Passenger Car EU | 306 | 2 | Diesel | 1999 06 | 2001 05 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | 306 | ||
| Peugeot, Passenger Car EU | 406 | 2.2 | Diesel | 2000 03 | 2004 05 | 98 | 133 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | 406 | ||
| Peugeot, Passenger Car EU | Boxer | 2.2 | Diesel | 2002 04 | - | 74 | 101 | 2179 | 4 | HDi | 4HY (DW12UTED) | Platform / Chassis | Boxer | |
| Peugeot, Passenger Car EU | Boxer | 2 | Diesel | 2002 04 | - | 62 | 84 | 1997 | 4 | HDi | RHV (DW10UTD) | Van | Boxer | |
| Peugeot, Passenger Car EU | 807 | 2.2 | Diesel | 2002 06 | - | 94 | 128 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | MPV | FAP | 807 |
| Peugeot, Passenger Car EU | Expert | 2 | Diesel | 2000 07 | - | 69 | 94 | 1997 | 4 | HDi | RHX (DW10BTED) | Van | Expert | |
| Peugeot, Passenger Car EU | 607 | 2.2 | Diesel | 2000 02 | - | 98 | 133 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | 607 | ||
| Peugeot, Passenger Car EU | Boxer | 2 | Diesel | 2002 04 | - | 62 | 84 | 1997 | 4 | HDi | RHV (DW10UTD) | Platform / Chassis | Boxer | |
| Peugeot, Passenger Car EU | 807 | 2 | Diesel | 2002 06 | - | 79 | 107 | 1997 | 4 | HDi | RHM (DW10ATED4) | MPV | 807 | |
| Peugeot, Passenger Car EU | 406 | 2 | Diesel | 1999 02 | 2004 05 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | 406 | ||
| Peugeot, Passenger Car EU | 306 | 2 | Diesel | 1999 06 | 2001 05 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Hatchback | 306 | |
| Peugeot, Passenger Car EU | 307 | 2 | Diesel | 2000 08 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Hatchback | 307 | |
| Peugeot, Passenger Car EU | Boxer | 2.2 | Diesel | 2002 04 | - | 74 | 101 | 2179 | 4 | HDi | 4HY (DW12UTED) | Bus | Boxer | |
| Peugeot, Passenger Car EU | Boxer | 2.2 | Diesel | 2002 04 | - | 74 | 101 | 2179 | 4 | HDi | 4HY (DW12UTED) | Van | Boxer | |
| Peugeot, Passenger Car EU | 206 | 2 | Diesel | 2002 07 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Estate | 206 | |
| Peugeot, Passenger Car EU | 206 | 2 | Diesel | 1999 12 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Hatchback | 206 | |
| Peugeot, Passenger Car EU | Partner | 2 | Diesel | 2000 04 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Van | Partner | |
| Peugeot, Passenger Car EU | Expert | 2 | Diesel | 2000 07 | - | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | MPV | Expert | |
| Citroen, Passenger Car EU | Xantia | 2 | Diesel | 1999 02 | 2003 04 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | Hatchback | Xantia | |
| Citroen, Passenger Car EU | C8 | 2 | Diesel | 2002 07 | - | 79 | 107 | 1997 | 4 | HDi | RHK (DW10UTED4) | MPV | C8 | |
| Citroen, Passenger Car EU | C5 | 2.2 | Diesel | 2001 03 | 2004 08 | 98 | 133 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | Hatchback | C5 | |
| Citroen, Passenger Car EU | Jumpy | 2 | Diesel | 1999 10 | - | 69 | 94 | 1997 | 4 | HDi | RHX (DW10BTED) | Van | Jumpy | |
| Citroen, Passenger Car EU | Jumpy | 2 | Diesel | 2000 03 | - | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | MPV | Jumpy | |
| Citroen, Passenger Car EU | Berlingo | 2 | Diesel | 1999 12 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | MPV | Berlingo | |
| Citroen, Passenger Car EU | Xantia | 2 | Diesel | 1999 03 | 2003 04 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Estate | Xantia | |
| Citroen, Passenger Car EU | Jumper | 2 | Diesel | 2002 04 | - | 62 | 84 | 1997 | 4 | HDi | RHV (DW10UTD) | Van | Jumper | |
| Citroen, Passenger Car EU | Jumper | 2.2 | Diesel | 2002 04 | - | 74 | 101 | 2179 | 4 | HDi 16V | 4HY (DW12UTED) | Platform / Chassis | Jumper | |
| Citroen, Passenger Car EU | Xsara | 2 | Diesel | 2001 05 | 2005 03 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | Coupe | Xsara | |
| Citroen, Passenger Car EU | Xsara | 2 | Diesel | 1999 02 | 2005 03 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Coupe | Xsara | |
| Citroen, Passenger Car EU | Xsara | 2 | Diesel | 2001 05 | 2005 08 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | Estate | Xsara | |
| Citroen, Passenger Car EU | Xsara | 2 | Diesel | 1999 02 | 2005 03 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | Xsara | 2 | Diesel | 1999 02 | 2005 08 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Estate | Xsara | |
| Citroen, Passenger Car EU | Xsara | 2 | Diesel | 1999 12 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | MPV | Picasso | Xsara |
| Citroen, Passenger Car EU | Berlingo | 2 | Diesel | 1999 12 | - | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Van | Berlingo | |
| Citroen, Passenger Car EU | C5 | 2 | Diesel | 2001 03 | 2004 08 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | Hatchback | C5 | |
| Citroen, Passenger Car EU | C5 | 2 | Diesel | 2001 06 | 2004 08 | 79 | 107 | 1997 | 4 | HDi | RHS (DW10ATED4) | Estate | C5 | |
| Citroen, Passenger Car EU | C5 | 2.2 | Diesel | 2001 06 | 2004 08 | 98 | 133 | 2179 | 4 | HDi | 4HX (DW12TED4/FAP) | Estate | C5 | |
| Citroen, Passenger Car EU | Jumper | 2.2 | Diesel | 2002 04 | - | 74 | 101 | 2179 | 4 | HDi | 4HY (DW12UTED) | Bus | Jumper | |
| Citroen, Passenger Car EU | Jumper | 2.2 | Diesel | 2002 04 | - | 74 | 101 | 2179 | 4 | HDi | 4HY (DW12UTED4) | Van | Jumper | |
| Citroen, Passenger Car EU | Jumper | 2 | Diesel | 2002 04 | - | 62 | 84 | 1997 | 4 | HDi | RHV (DW10UTD) | Platform / Chassis | Jumper | |
| Citroen, Passenger Car EU | Xantia | 2 | Diesel | 1999 02 | 2003 04 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | Estate | Xantia | |
| Citroen, Passenger Car EU | Evasion | 2 | Diesel | 1999 08 | 2002 07 | 80 | 109 | 1997 | 4 | HDi | RHZ (DW10ATED) | MPV | Evasion | |
| Citroen, Passenger Car EU | Xantia | 2 | Diesel | 1999 03 | 2003 04 | 66 | 90 | 1997 | 4 | HDi | RHY (DW10TD) | Hatchback | Xantia | |
| Citroen, Passenger Car EU | Jumpy | 2 | Diesel | 1999 10 | - | 69 | 94 | 1997 | 4 | HDi | RHX (DW10BTED) | Platform / Chassis | Jumpy | |
| Citroen, Passenger Car EU | Jumpy | 2 | Diesel | 1999 10 | - | 69 | 94 | 1997 | 4 | HDi | RHX (DW10BTED) | MPV | Jumpy | |
| Citroen, Passenger Car EU | Jumper | 2 | Diesel | 2002 04 | - | 62 | 84 | 1997 | 4 | HDi | RHV (DW10UTD) | Bus | Jumper | |
| Citroen, Passenger Car EU | C8 | 2.2 | Diesel | 2002 07 | - | 94 | 128 | 2179 | 4 | HDi | 4HW (DW12TED4) | MPV | C8 | |
| Fiat, Passenger Car EU | Scudo | 2 | Diesel | 1999 12 | - | 69 | 94 | 1997 | 4 | JTD | RHX (DW10BTED) | Van | Scudo | |
| Fiat, Passenger Car EU | Scudo | 2 | Diesel | 1999 12 | 2006 12 | 80 | 109 | 1997 | 4 | JTD | RHZ (DW10ATED) | Estate | Combinato | Scudo |
| Fiat, Passenger Car EU | Ulysse | 2 | Diesel | 1999 10 | 2002 08 | 80 | 109 | 1997 | 4 | JTD | RHZ (DW10ATED) | MPV | Ulysse |
