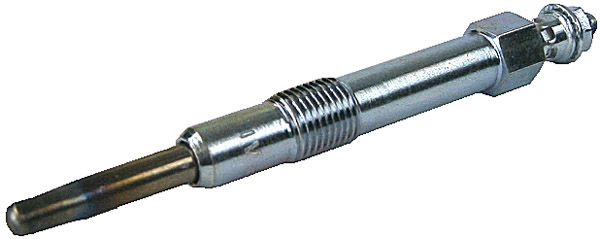

100534 - Glow Plug (100534)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 11,
Amp: 10, Length 1 mm 57.0, Length 2 mm 24.0, Glow duration sec 8, Post heating Yes, Drawing GLOW, Double coil w/, Length 3 mm 96.4, Connection thread mm M4, Thread glow Plug mm M10-1, Bolt size mm 10,
OD: mm 5.0
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 11 | |||
| Amp | 10 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 57.0 | |||
| Length | 2 mm 24.0 | |||
| Glow | duration sec 8 | |||
| Post | heating Yes | |||
| Double | coil w/ | |||
| Length | 3 mm 96.4 | |||
| A | Connection thread mm M4 | |||
| B | Thread glow Plug mm M10-1 | |||
| H | Bolt size mm 10 | |||
| C | OD mm 5.0 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100226372 | BERU | |||
| 0250202028 | BOSCH | |||
| 100328 | CARGO | |||
| 46451951 | ALFA ROMEO | |||
| 46451951 | FIAT | |||
| ch166 | CHAMPION | |||
| gn017 | BERU | |||
| hds356 | LUCAS | |||
UNISTART Price: £10.17
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Bravo | 1.9 | Diesel | 1996 03 | 2001 10 | 74 | 100 | 1910 | 4 | TD | 182A7.000 | Hatchback | Bravo | |
| Fiat, Passenger Car EU | Punto | 1.9 | Diesel | 2000 02 | - | 63 | 86 | 1910 | 4 | JTD | 188A7.000 | Van | Punto | |
| Fiat, Passenger Car EU | Marea | 1.9 | Diesel | 2001 01 | - | 81 | 110 | 1910 | 4 | JTD | 186A6.000 | Marea | ||
| Fiat, Passenger Car EU | Brava | 1.9 | Diesel | 1995 10 | 2001 10 | 48 | 65 | 1929 | 4 | Diesel | 160A7.000 | Hatchback | Brava | |
| Fiat, Passenger Car EU | Bravo | 1.9 | Diesel | 1995 10 | 2001 10 | 48 | 65 | 1929 | 4 | Diesel | 160A7.000 | Hatchback | Bravo | |
| Fiat, Passenger Car EU | Punto | 1.7 | Diesel | 1996 04 | 2000 02 | 52 | 71 | 1698 | 4 | TD | 176A5.000 | Van | Punto | |
| Alfa Romeo, Passenger Car EU | Alfa 166 | 2.4 | Diesel | 2002 04 | - | 110 | 150 | 2387 | 5 | JTD | 841C.000 | Alfa 166 | ||
| Lancia, Passenger Car EU | Kappa | 2.4 | Diesel | 1996 07 | 2001 10 | 91 | 124 | 2387 | 5 | TD | 838A7.000 | Estate | Kappa |
