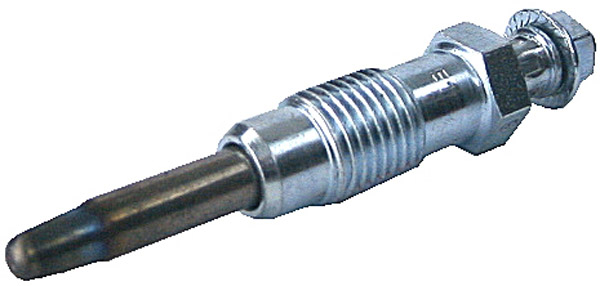

100541 - Glow Plug (100541)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 11,
Amp: 10, Length 1 mm 29.0, Length 2 mm 25.0, Glow duration sec 8, Post heating Yes, Drawing GLOW, Double coil w/, Length 3 mm 69.4, Connection thread mm M5, Thread glow Plug mm M12-1.25, Bolt size mm 12,
OD: mm 6.1
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 11 | |||
| Amp | 10 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 29.0 | |||
| Length | 2 mm 25.0 | |||
| Glow | duration sec 8 | |||
| Post | heating Yes | |||
| Double | coil w/ | |||
| Length | 3 mm 69.4 | |||
| A | Connection thread mm M5 | |||
| B | Thread glow Plug mm M12-1.25 | |||
| H | Bolt size mm 12 | |||
| C | OD mm 6.1 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100226366 | BERU | |||
| 0250201042 | BOSCH | |||
| 59623h | PEUGEOT | |||
| 59623j | PEUGEOT | |||
| 9613572480 | PEUGEOT | |||
| 9633214380 | PEUGEOT | |||
| gn013 | BERU | |||
UNISTART Price: £9.33
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Citroen, Passenger Car EU | Xsara | 1.5 | Diesel | 1997 04 | 2000 09 | 42 | 57 | 1527 | 4 | Diesel | VJZ (TUD5) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | XM | 2.1 | Diesel | 1994 05 | 2000 10 | 80 | 109 | 2088 | 4 | TD 12V | PHZ (XUD11ATE) | Estate | XM | |
| Citroen, Passenger Car EU | Xantia | 1.9 | Diesel | 1998 01 | 2003 04 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9SD) | Hatchback | Xantia | |
| Citroen, Passenger Car EU | Xantia | 1.9 | Diesel | 1998 01 | 2003 04 | 66 | 90 | 1905 | 4 | TD | DHY (XUD9TE/Y) | Hatchback | Xantia | |
| Citroen, Passenger Car EU | Xantia | 2.1 | Diesel | 1998 01 | 1999 02 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | Hatchback | Xantia | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1997 10 | 2000 09 | 50 | 68 | 1905 | 4 | Diesel | DJY (XUD9A) | Estate | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1997 10 | 2000 09 | 66 | 90 | 1905 | 4 | TD | DHY (XUD9TE/Y) | Estate | Xsara | |
| Citroen, Passenger Car EU | Jumper | 1.9 | Diesel | 1999 07 | 2002 04 | 50 | 68 | 1905 | 4 | Diesel | DJY (XUD9A) | Van | Jumper | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1999 02 | 2005 03 | 51 | 70 | 1868 | 4 | Diesel | WJZ (DW8) | Coupe | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.8 | Diesel | 1997 10 | 2000 09 | 43 | 58 | 1769 | 4 | Diesel | A9A (XUD7) | Estate | Xsara | |
| Citroen, Passenger Car EU | Xantia | 1.9 | Diesel | 1998 01 | 2003 04 | 66 | 90 | 1905 | 4 | TD | D8B (XUD9TF) | Estate | Xantia | |
| Citroen, Passenger Car EU | Jumper | 1.9 | Diesel | 1994 02 | 2002 04 | 51 | 69 | 1905 | 4 | Diesel | D9B (XUD9A/U) | Van | Jumper | |
| Citroen, Passenger Car EU | Jumper | 1.9 | Diesel | 1994 03 | 2002 04 | 66 | 90 | 1905 | 4 | TD | DHX (XUD9TF/BTF) | Platform / Chassis | Jumper | |
| Citroen, Passenger Car EU | Berlingo | 1.9 | Diesel | 1996 07 | - | 51 | 70 | 1905 | 4 | Diesel | DJY (XUD9A) | Van | Berlingo | |
| Citroen, Passenger Car EU | Xantia | 1.9 | Diesel | 1998 01 | 2003 04 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9SD) | Estate | Xantia | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1998 02 | 2000 09 | 50 | 68 | 1905 | 4 | Diesel | DJY (XUD9A) | Coupe | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.5 | Diesel | 1997 10 | 2000 09 | 42 | 57 | 1527 | 4 | Diesel | VJZ (TUD5) | Estate | Xsara | |
| Citroen, Passenger Car EU | Xantia | 2.1 | Diesel | 1998 01 | 1999 02 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | Estate | Xantia | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1998 07 | 2005 08 | 51 | 70 | 1868 | 4 | Diesel | WJZ (DW8) | Estate | Xsara | |
| Citroen, Passenger Car EU | XM | 2.1 | Diesel | 1994 05 | 2000 10 | 80 | 109 | 2088 | 4 | TD 12V | P8A (XUD11ATE) | Hatchback | XM | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1998 01 | 2000 09 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9BSD) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1998 02 | 2000 09 | 66 | 90 | 1905 | 4 | TD | DHY (XUD9TE/Y) | Coupe | Xsara | |
| Citroen, Passenger Car EU | XM | 2.1 | Diesel | 1994 05 | 2000 10 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | Hatchback | XM | |
| Citroen, Passenger Car EU | XM | 2.1 | Diesel | 1994 05 | 2000 10 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | Estate | XM | |
| Citroen, Passenger Car EU | Xantia | 1.9 | Diesel | 1998 01 | 2003 04 | 66 | 90 | 1905 | 4 | TD | DHX (XUD9TF/BTF) | Hatchback | Xantia | |
| Citroen, Passenger Car EU | Xsara | 1.8 | Diesel | 1997 04 | 2000 09 | 43 | 58 | 1769 | 4 | Diesel | 161A (XUD7) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1997 04 | 2000 09 | 50 | 68 | 1905 | 4 | Diesel | DJY (XUD9A) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1998 07 | 2005 03 | 51 | 70 | 1868 | 4 | Diesel | WJZ (DW8) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.9 | Diesel | 1998 01 | 2000 09 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9BSD) | Estate | Xsara | |
| Citroen, Passenger Car EU | Berlingo | 1.8 | Diesel | 1998 07 | - | 43 | 58 | 1769 | 4 | Diesel | A9A (XUD7) | MPV | Berlingo | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1994 06 | 2001 05 | 66 | 90 | 1905 | 4 | Diesel | DHY (XUD9TE) | SRDT | 306 | |
| Peugeot, Passenger Car EU | 806 | 2.1 | Diesel | 1996 06 | 1999 08 | 80 | 109 | 2088 | 4 | TD | P8C (XUD11BTE) | MPV | 806 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 09 | 2002 04 | 51 | 69 | 1868 | 4 | Diesel | WJZ (DW8) | Estate | 306 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 03 | 2001 05 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9BSD) | Hatchback | 306 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 03 | 2002 04 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9BSD) | Estate | 306 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1994 06 | 2001 05 | 47 | 64 | 1905 | 4 | Diesel | DJZ (XUD9Y) | SLD | 306 | |
| Peugeot, Passenger Car EU | 406 | 2.1 | Diesel | 1996 01 | 2004 05 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | 406 | ||
| Peugeot, Passenger Car EU | 406 | 1.9 | Diesel | 1996 10 | 2004 10 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9SD) | Estate | 406 | |
| Peugeot, Passenger Car EU | 605 | 2.1 | Diesel | 1994 08 | 1999 09 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | 605 | ||
| Peugeot, Passenger Car EU | 406 | 1.9 | Diesel | 1996 10 | 2004 05 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9SD) | 406 | ||
| Peugeot, Passenger Car EU | Boxer | 2.5 | Diesel | 1999 07 | 2002 04 | 63 | 86 | 2446 | 4 | Diesel | T9A (DJ5) | Platform / Chassis | 4x4 | Boxer |
| Peugeot, Passenger Car EU | 806 | 1.9 | Diesel | 1995 07 | 2002 08 | 66 | 90 | 1905 | 4 | TD | DHX (XUD9TE) | MPV | 806 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 09 | - | 51 | 69 | 1868 | 4 | Diesel | WJY (DW8B) | Estate | 306 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 09 | 2001 05 | 51 | 69 | 1868 | 4 | Diesel | WJZ (DW8) | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 09 | 2001 05 | 51 | 69 | 1868 | 4 | Diesel | WJY (DW8B) | 306 | ||
| Peugeot, Passenger Car EU | 406 | 1.9 | Diesel | 1996 10 | 2004 10 | 66 | 90 | 1905 | 4 | TD | DHX (XUD9TE) | Estate | 406 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 09 | 2001 05 | 51 | 69 | 1868 | 4 | Diesel | WJY (DW8B) | Hatchback | 306 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 03 | 2001 05 | 55 | 75 | 1905 | 4 | Diesel | DHW (XUD9BSD) | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1994 06 | 2001 05 | 50 | 68 | 1905 | 4 | Diesel | DJY (XUD9A) | SLD | 306 | |
| Peugeot, Passenger Car EU | 406 | 2.1 | Diesel | 1996 10 | 2004 10 | 80 | 109 | 2088 | 4 | TD 12V | P8C (XUD11BTE) | Estate | 406 | |
| Peugeot, Passenger Car EU | 806 | 1.9 | Diesel | 1997 05 | 2002 08 | 68 | 92 | 1905 | 4 | TD | DHY (XUD9TE) | MPV | 806 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1997 03 | 2002 04 | 50 | 68 | 1905 | 4 | Diesel | DJY (XUD9A) | Estate | 306 | |
| Peugeot, Passenger Car EU | 306 | 1.9 | Diesel | 1998 09 | 2001 05 | 51 | 69 | 1868 | 4 | Diesel | WJZ (DW8) | Hatchback | 306 | |
| Fiat, Passenger Car EU | Ulysse | 2.1 | Diesel | 1996 03 | 1999 10 | 80 | 109 | 2088 | 4 | TD | P8C | MPV | Ulysse | |
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1998 04 | 2002 04 | 50 | 68 | 1905 | 4 | Diesel | DJY | Bus | Ducato | |
| Fiat, Passenger Car EU | Ulysse | 1.9 | Diesel | 1995 02 | 2002 08 | 66 | 90 | 1905 | 4 | TD | DHX (XUD9TF/L) | MPV | Ulysse | |
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1998 04 | 2002 04 | 50 | 68 | 1905 | 4 | Diesel | DJY | Van | Ducato | |
| Fiat, Passenger Car EU | Ducato | 1.9 | Diesel | 1998 04 | 2002 04 | 50 | 68 | 1905 | 4 | Diesel | DJY | Platform / Chassis | Ducato |
