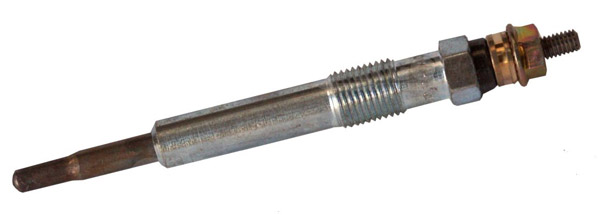

100565 - Glow Plug (100565)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 10,
Amp: 10, Length 1 mm 54.5, Length 2 mm 24.5, Glow duration sec 10, Drawing GLOW, Length 3 mm 96, Connection thread mm M4, Thread glow Plug mm M10-1, Bolt size mm 10,
OD: mm 5
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 10 | |||
| Amp | 10 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 54.5 | |||
| Length | 2 mm 24.5 | |||
| Glow | duration sec 10 | |||
| Length | 3 mm 96 | |||
| A | Connection thread mm M4 | |||
| B | Thread glow Plug mm M10-1 | |||
| H | Bolt size mm 10 | |||
| C | OD mm 5 | |||
Further information (Glow plugs) | ||||
| Drawing | GLOW | |||
Replacing | ||||
| 0100226301 | BERU | |||
| 0100226384 | BERU | |||
| 1079401 | FORD | |||
| b-105 | HKT | |||
| ch196/002 | CHAMPION | |||
| ezd37 | FORD | |||
| gn993 | BERU | |||
UNISTART Price: £14.28
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1998 10 | 2004 11 | 66 | 90 | 1753 | 4 | TDDi | C9DC | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDA | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDB | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDA | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDB | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Focus | ||
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1998 10 | 2004 11 | 66 | 90 | 1753 | 4 | TDDi | C9DC | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDA | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDB | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDA | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDB | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Focus | ||
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1998 10 | 2004 11 | 66 | 90 | 1753 | 4 | TDDi | C9DC | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDA | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDB | Estate | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDA | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 1999 08 | 2004 11 | 55 | 75 | 1753 | 4 | TDDi | BHDB | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Hatchback | Focus | |
| Ford, Passenger Car EU | Focus | 1.8 | Diesel | 2002 09 | 2004 11 | 74 | 100 | 1753 | 4 | TDCi | FFDA | Focus |
