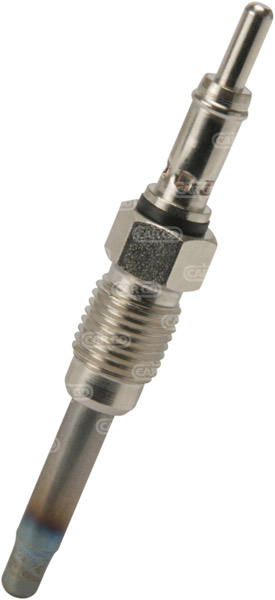

100671 - Glow Plug (100671)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12,
Voltage: /glow plug 12,
Amp: 10, Length 1 mm 26.0, Length 2 mm 28.5, Glow duration sec 8, Drawing Glow, Length 3 mm 84.0, Connection thread mm Ø4, Thread glow Plug mm M12-1.25, Bolt size mm 12,
OD: mm 6.1
Electrical specifications (Glow plugs) | ||||
| Voltage | 12 | |||
| Voltage/glow | plug 12 | |||
| Amp | 10 | |||
Physical specifications (Glow plugs) | ||||
| Length | 1 mm 26.0 | |||
| Length | 2 mm 28.5 | |||
| Glow | duration sec 8 | |||
| Length | 3 mm 84.0 | |||
| A | Connection thread mm Ø4 | |||
| B | Thread glow Plug mm M12-1.25 | |||
| H | Bolt size mm 12 | |||
| C | OD mm 6.1 | |||
Further information (Glow plugs) | ||||
| Drawing | Glow | |||
Replacing | ||||
| 0100226376 | BERU | |||
| 60815294 | FIAT | |||
| 69657138 | FIAT | |||
| 71713981 | FIAT | |||
| GN020 | BERU | |||
UNISTART Price: £11.04
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 2000 09 | 2002 05 | 103 | 140 | 2387 | 5 | JTD | 839A6.000 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 1.9 | Diesel | 2001 05 | - | 85 | 116 | 1910 | 4 | JTD | 937A2.000 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 2002 05 | - | 110 | 150 | 2387 | 5 | JTD | 841C.000 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 2002 05 | - | 110 | 150 | 2387 | 5 | JTD | 841C.000 | Estate | Lybra | |
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 1999 07 | 2000 09 | 99 | 135 | 2387 | 5 | JTD | 839A5.000 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 1.9 | Diesel | 2000 09 | 2001 05 | 81 | 110 | 1910 | 4 | JTD | AR37101 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 1.9 | Diesel | 2000 09 | 2001 05 | 81 | 110 | 1910 | 4 | JTD | AR37101 | Estate | SW | Lybra |
| Lancia, Passenger Car EU | Lybra | 1.9 | Diesel | 2001 05 | - | 85 | 116 | 1910 | 4 | JTD | 937A2.000 | Estate | Lybra | |
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 1999 07 | 2000 09 | 99 | 135 | 2387 | 5 | JTD | AR32501 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 1.9 | Diesel | 1999 07 | 2000 09 | 77 | 105 | 1910 | 4 | JTD | AR32302 | Estate | Lybra | |
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 2000 09 | - | 103 | 140 | 2387 | 5 | JTD | 839A6.000 | Estate | SW | Lybra |
| Lancia, Passenger Car EU | Kappa | 2.4 | Diesel | 1998 06 | 2001 10 | 100 | 136 | 2387 | 5 | JTD | 838A8.000 | Kappa | ||
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 1999 10 | 2000 09 | 99 | 135 | 2387 | 5 | JTD | AR32501 | Estate | Lybra | |
| Lancia, Passenger Car EU | Lybra | 1.9 | Diesel | 1999 07 | 2000 09 | 77 | 105 | 1910 | 4 | JTD | AR32302 | Lybra | ||
| Lancia, Passenger Car EU | Lybra | 2.4 | Diesel | 1999 10 | 2000 09 | 99 | 135 | 2387 | 5 | JTD | 839A5.000 | Estate | Lybra | |
| Lancia, Passenger Car EU | Kappa | 2.4 | Diesel | 1998 06 | 2001 10 | 100 | 136 | 2387 | 5 | JTD | 838A8.000 | Estate | Kappa | |
| Fiat, Passenger Car EU | Brava | 1.9 | Diesel | 1998 12 | 2001 10 | 77 | 105 | 1910 | 4 | JTD | 182B4.000 | Hatchback | Brava | |
| Fiat, Passenger Car EU | Multipla | 1.9 | Diesel | 2001 03 | 2002 07 | 81 | 110 | 1910 | 4 | JTD | 186A6.000 | MPV | Multipla | |
| Fiat, Passenger Car EU | Marea | 1.9 | Diesel | 1999 04 | 2001 01 | 77 | 105 | 1910 | 4 | JTD | 182B4.000 | Marea | ||
| Fiat, Passenger Car EU | Marea | 2.4 | Diesel | 1999 04 | - | 96 | 130 | 2387 | 5 | JTD | 185A6.000 | Marea | ||
| Fiat, Passenger Car EU | Marea | 2.4 | Diesel | 1999 04 | - | 96 | 130 | 2387 | 5 | JTD | 839A5.000 | Estate | Marea | |
| Fiat, Passenger Car EU | Bravo | 1.9 | Diesel | 1998 12 | 2001 10 | 77 | 105 | 1910 | 4 | JTD | 182B4.000 | Hatchback | Bravo | |
| Fiat, Passenger Car EU | Punto | 1.9 | Diesel | 1999 09 | - | 59 | 80 | 1910 | 4 | JTD | 188A2.000 | Hatchback | Punto | |
| Fiat, Passenger Car EU | Marea | 1.9 | Diesel | 1999 04 | - | 77 | 105 | 1910 | 4 | JTD | 182B4.000 | Estate | Marea | |
| Fiat, Passenger Car EU | Marea | 2.4 | Diesel | 1999 04 | - | 96 | 130 | 2387 | 5 | JTD | 185A6.000 | Estate | Marea | |
| Fiat, Passenger Car EU | Punto | 1.9 | Diesel | 2001 10 | - | 63 | 86 | 1910 | 4 | JTD | 188A7.000 | Hatchback | Punto | |
| Fiat, Passenger Car EU | Multipla | 1.9 | Diesel | 1999 04 | 2010 06 | 77 | 105 | 1910 | 4 | JTD | 182B4.000 | MPV | Multipla | |
| Fiat, Passenger Car EU | Marea | 1.9 | Diesel | 2001 01 | - | 81 | 110 | 1910 | 4 | JTD | 186A6.000 | Estate | Marea | |
| Alfa Romeo, Passenger Car EU | Alfa 156 | 1.9 | Diesel | 2000 10 | 2001 05 | 81 | 110 | 1910 | 4 | JTD | AR37101 | Alfa 156 | ||
| Alfa Romeo, Passenger Car EU | Alfa 156 | 1.9 | Diesel | 1997 09 | 2000 10 | 77 | 105 | 1910 | 4 | JTD | AR32302 | Alfa 156 | ||
| Alfa Romeo, Passenger Car EU | Alfa 145 | 1.9 | Diesel | 1999 02 | 2001 01 | 77 | 105 | 1910 | 4 | JTD | AR32302 | Hatchback | Alfa 145 | |
| Alfa Romeo, Passenger Car EU | Alfa 156 | 1.9 | Diesel | 2001 05 | 2006 05 | 85 | 115 | 1910 | 4 | JTD | 937A2.000 | Estate | Alfa 156 | |
| Alfa Romeo, Passenger Car EU | Alfa 156 | 2.4 | Diesel | 2003 10 | 2006 05 | 129 | 175 | 2387 | 5 | JTD | 841G.000 | Estate | Alfa 156 | |
| Alfa Romeo, Passenger Car EU | Alfa 166 | 2.4 | Diesel | 1998 09 | 2000 10 | 100 | 136 | 2387 | 5 | JTD | AR34202 | Alfa 166 | ||
| Alfa Romeo, Passenger Car EU | Alfa 156 | 1.9 | Diesel | 2000 10 | 2001 05 | 81 | 110 | 1910 | 4 | JTD | AR37101 | Estate | Alfa 156 | |
| Alfa Romeo, Passenger Car EU | Alfa 156 | 1.9 | Diesel | 2000 05 | 2000 10 | 77 | 105 | 1910 | 4 | JTD | AR32302 | Estate | Alfa 156 | |
| Alfa Romeo, Passenger Car EU | Alfa 147 | 1.9 | Diesel | 2003 06 | 2010 03 | 74 | 101 | 1910 | 4 | JTD | 182B9.000 | Hatchback | Alfa 147 | |
| Alfa Romeo, Passenger Car EU | Alfa 156 | 1.9 | Diesel | 2001 05 | 2005 09 | 85 | 115 | 1910 | 4 | JTD | 937A2.000 | Alfa 156 |
