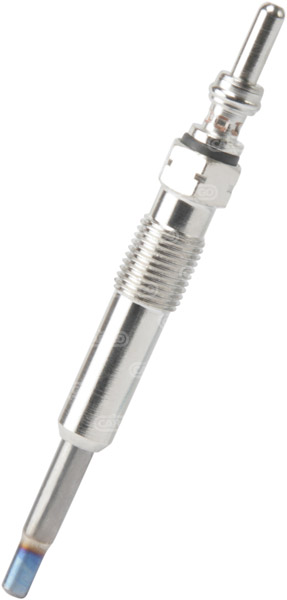

100684 - Glow Plug (100684)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: /glow plug 11,
Amp: 10, Length 1 mm 44.5, Length 2 mm 24.0, Glow duration sec 8, Drawing Glow, Length 3 mm 90.5, Connection thread mm Ø4, Thread glow Plug mm M10X1, Bolt size mm 10,
OD: mm 5.0

Electrical specifications (Glow plugs)
Voltage/glow plug 11
Amp 10

Physical specifications (Glow plugs)
Length 1 mm 44.5
Length 2 mm 24.0
Glow duration sec 8
Length 3 mm 90.5
A Connection thread mm Ø4
B Thread glow Plug mm M10X1
H Bolt size mm 10
C OD mm 5.0

Further information (Glow plugs)
Drawing Glow

Replacing
0250212009 BOSCH
GN018 BERU

UNISTART Price: £9.30

Sorry, this item is out of stock.

The 100684 - Glow Plug is shown in: Electrical Parts & Engine Management > Diesel Parts , Automotive > Electrical Parts & Engine Management.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2005 08 - 45 61 1461 4 DCi K9K710 Van X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 50 68 1461 4 DCi K9K716 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 62 85 1461 4 DCi K9K710 MPV X76 Kubistar
Nissan, Passenger Car EU Micra 1.5 Diesel 2005 06 2010 06 63 86 1461 4 DCi K9K276 Hatchback Micra
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K722 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 48 65 1461 4 DCi K9K704 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 48 65 1461 4 DCi K9K714 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 48 65 1461 4 DCi K9K716 MPV X76 Kubistar
Nissan, Passenger Car EU Micra 1.5 Diesel 2003 09 2010 06 60 82 1461 4 DCi K9K722 Hatchback Micra
Nissan, Passenger Car EU Primastar 1.9 Diesel 2002 09 - 60 82 1870 4 DCi F9Q762 Van Primastar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2005 08 - 45 61 1461 4 DCi K9K714 Van X76 Kubistar
Nissan, Passenger Car EU Interstar 1.9 Diesel 2002 07 - 60 82 1870 4 DCi F9Q772 Van Interstar
Nissan, Passenger Car EU Primastar 1.9 Diesel 2001 03 - 60 80 1870 4 DCi F9Q762 Bus Primastar
Nissan, Passenger Car EU Almera 1.5 Diesel 2003 01 2006 11 60 82 1461 4 DCi K9K722 Hatchback Almera
Nissan, Passenger Car EU NV 200 1.5 Diesel 2010 02 - 63 86 1461 4 DCi Bus NV 200
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K702 Van X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2005 08 - 45 61 1461 4 DCi K9K714 MPV X76 Kubistar
Nissan, Passenger Car EU Note 1.5 Diesel 2006 03 - 63 86 1461 4 DCi K9K276 MPV Note
Nissan, Passenger Car EU Interstar 1.9 Diesel 2002 07 - 60 82 1870 4 DCi F9Q772 Bus Interstar
Nissan, Passenger Car EU Primastar 1.9 Diesel 2002 09 - 74 100 1870 4 DCi F9Q760 Van Primastar
Nissan, Passenger Car EU Primera 1.9 Diesel 2003 04 - 88 120 1870 4 DCi F9Q Hatchback Primera
Nissan, Passenger Car EU Micra 1.5 Diesel 2003 01 2010 06 48 65 1461 4 DCi K9K704 Hatchback Micra
Nissan, Passenger Car EU Almera 1.5 Diesel 2003 01 2006 11 60 82 1461 4 DCi K9K722 Almera
Nissan, Passenger Car EU NV 200 1.5 Diesel 2010 02 - 63 86 1461 4 DCi K9K Van NV 200
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K722 Van X76 Kubistar
Nissan, Passenger Car EU Qashqai 1.5 Diesel 2008 07 - 76 103 1461 4 DCi K9K410 Qashqai
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 48 65 1461 4 DCi K9K704 Van X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 50 68 1461 4 DCi K9K700 MPV X76 Kubistar
Nissan, Passenger Car EU Primera 1.9 Diesel 2002 08 - 85 116 1870 4 DCi Hatchback Primera
Nissan, Passenger Car EU Qashqai 1.5 Diesel 2007 02 - 78 106 1461 4 DCi K9K732 MPV Qashqai
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 50 68 1461 4 DCi K9K704 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 62 85 1461 4 DCi K9K276 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 50 68 1461 4 DCi K9K714 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 62 85 1461 4 DCi K9K718 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2006 04 - 62 85 1461 4 DCi K9K722 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K710 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K718 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K710 Van X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 60 82 1461 4 DCi K9K718 Van X76 Kubistar
Nissan, Passenger Car EU Note 1.5 Diesel 2008 07 - 76 103 1461 4 DCi K9K292 MPV Note
Nissan, Passenger Car EU Qashqai 1.5 Diesel 2010 11 - 81 110 1461 4 DCi K9K430 Qashqai
Nissan, Passenger Car EU Primera 1.9 Diesel 2002 08 - 85 116 1870 4 DCi Primera
Nissan, Passenger Car EU Primera 1.9 Diesel 2002 08 - 85 116 1870 4 DCi Estate Primera
Nissan, Passenger Car EU Tiida 1.5 Diesel 2007 09 - 78 106 1461 4 DCi K9K728 Hatchback Tiida
Nissan, Passenger Car EU Tiida 1.5 Diesel 2007 09 - 78 106 1461 4 DCi Tiida
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2003 08 - 42 57 1461 4 DCi K9K710 MPV X76 Kubistar
Nissan, Passenger Car EU Kubistar 1.5 Diesel 2005 08 - 45 61 1461 4 DCi K9K710 MPV X76 Kubistar
Renault, Passenger Car EU Kangoo 1.9 Diesel 2001 10 - 59 80 1870 4 DCi F9Q790 MPV 4x4 Kangoo
Renault, Passenger Car EU Scénic 1.9 Diesel 2000 11 2003 08 75 102 1870 4 DCi F9Q732 MPV Scénic
Renault, Passenger Car EU Laguna 1.5 Diesel 2007 10 - 81 110 1461 4 DCi K9K780 Hatchback Laguna
Renault, Passenger Car EU Scénic 1.9 Diesel 2000 11 2003 08 75 102 1870 4 DCi F9Q733 MPV Scénic
Renault, Passenger Car EU Kangoo 1.9 Diesel 2001 10 - 59 80 1870 4 DCi F9Q782 Van Express 4x4 Kangoo
Renault, Passenger Car EU Scénic 1.9 Diesel 2002 12 2003 08 74 101 1870 4 DCi F9Q732 MPV Scénic
Renault, Passenger Car EU Modus 1.5 Diesel 2004 12 - 50 68 1461 4 DCi K9K762 Hatchback Modus
Renault, Passenger Car EU Modus 1.5 Diesel 2004 12 - 63 86 1461 4 DCi K9K760 Hatchback Modus
Renault, Passenger Car EU Modus 1.5 Diesel 2004 12 - 63 86 1461 4 DCi K9K766 Hatchback Modus
Renault, Passenger Car EU Kangoo 1.9 Diesel 2000 02 - 59 80 1870 4 DTi F9Q780 MPV Kangoo
Renault, Passenger Car EU Kangoo 1.9 Diesel 2003 10 - 62 84 1870 4 DCi F9Q790 MPV 4x4 Kangoo
Renault, Passenger Car EU Megane 1.9 Diesel 2004 03 - 68 92 1870 4 DCi F9Q808 Megane
Renault, Passenger Car EU Kangoo 1.9 Diesel 2001 10 - 59 80 1870 4 DCi F9Q782 MPV 4x4 Kangoo
Renault, Passenger Car EU Scénic 1.9 Diesel 2002 12 2003 08 74 101 1870 4 DCi F9Q796 MPV Scénic
Renault, Passenger Car EU Scénic 1.9 Diesel 2002 12 2003 08 74 101 1870 4 DCi F9Q748 MPV Scénic
Renault, Passenger Car EU Kangoo 1.9 Diesel 2003 07 - 62 84 1870 4 DCi F9Q790 Van Express 4x4 Kangoo
Renault, Passenger Car EU Kangoo 1.9 Diesel 2000 02 - 59 80 1870 4 DTi F9Q780 Van Express Kangoo
Renault, Passenger Car EU Modus 1.5 Diesel 2004 12 - 50 68 1461 4 DCi K9K768 Hatchback Modus
Renault, Passenger Car EU Kangoo 1.9 Diesel 2001 10 - 59 80 1870 4 DCi F9Q790 Van Express 4x4 Kangoo
Renault, Passenger Car EU Laguna 1.5 Diesel 2007 10 - 81 110 1461 4 DCi K9K780 Estate Laguna
Renault, Passenger Car EU Kangoo 1.9 Diesel 2003 07 - 62 84 1870 4 DCi F9Q790 Van Express Kangoo
Mitsubishi, Passenger Car EU Space Star 1.9 Diesel 2001 02 - 75 102 1870 4 Diesel Di F9Q1 MPV Space Star
Mitsubishi, Passenger Car EU Carisma 1.9 Diesel 2000 09 2006 06 85 115 1870 4 Diesel Di F9Q2 Hatchback Carisma
Mitsubishi, Passenger Car EU Space Star 1.9 Diesel 2002 10 - 85 115 1870 4 Diesel Di F9Q2 MPV Space Star
Mitsubishi, Passenger Car EU Carisma 1.9 Diesel 2000 09 2006 06 75 102 1870 4 Diesel Di F9Q1 Carisma
Mitsubishi, Passenger Car EU Carisma 1.9 Diesel 2000 09 2006 06 75 102 1870 4 Diesel Di F9Q1 Hatchback Carisma
Mitsubishi, Passenger Car EU Carisma 1.9 Diesel 2000 09 2006 06 85 115 1870 4 Diesel Di F9Q2 Carisma
