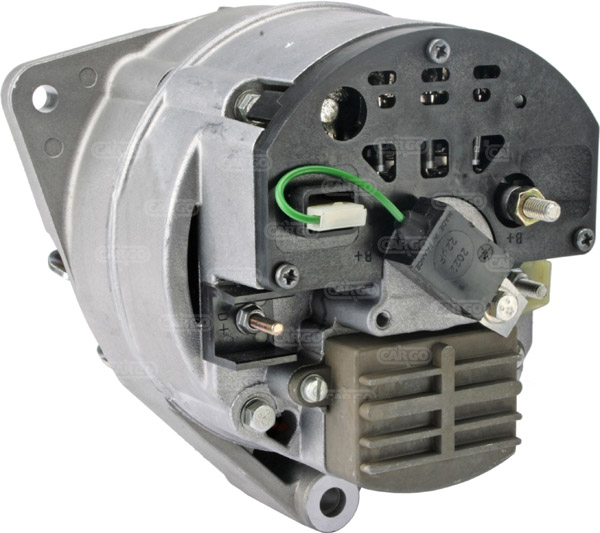

110117 - Alternator (110117)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 28,
Amp: 35,
Bracket Hole: 8.00, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 50,
Radius: 89.50,
Radius: 85.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Bracket Hole: 8.00,
Blower: EF, Pulley w/o,
Total Length: 183.50, Source Valeo

Electrical specifications (Alternator)
Voltage 28
Amp 35

Physical specifications (Alternator)
D Bracket hole 8.00
G Belt. adj. bracket hole 8.00
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 50
j Radius 89.50
j Radius 85.50
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
D Bracket hole 8.00
R Total length 183.50
Source Valeo

Further information (Alternator)
Blower EF
Pulley w/o

Replacing
01162135 KHD
0120489731 BOSCH
100211-4200 DENSO
100211-4201 DENSO
11.209.447 ISKRA
1162135 KHD
27070-23040-71 TOYOTA
2960120 VALEO
510-427 MOTOROLA
9ar6012 MOTOROLA

UNISTART Price: £287.12

Sorry, this item is out of stock.

The 110117 - Alternator is shown in: Brands > 5 Star , Trucks, Trailers and Buses > Starters & Alternators , Agriculture > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Iveco, Trucks EU P/PA Series 12.8 Diesel 1984 03 1986 06 188 256 12763 8 F8L413F Dump Truck P/PA 260-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1979 12 1985 10 162 220 12765 8 F8L413F Concrete Mixer P/PA 260-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1984 03 1986 06 188 256 12763 8 F8L413F Concrete Mixer P/PA 260-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1983 07 1986 06 188 256 12763 8 F8L413F Semi-Trailer P/PA 190-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1986 01 1990 09 188 256 12763 8 F8L413F Dump Truck P/PA 190-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1983 07 1986 12 188 256 12763 8 F8L413F Dump Truck P/PA 190-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1983 07 1987 12 188 256 12763 8 F8L413F Dump Truck P/PA 190-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1984 03 1986 06 188 256 12763 8 F8L413F Platform / Chassis P/PA 260-25
Iveco, Trucks EU P/PA Series 12.8 Diesel 1986 07 1987 12 188 256 12763 8 F8L413F Semi-Trailer P/PA 190-25
Iveco, Trucks EU 100 12.8 Diesel 1983 07 1990 09 188 256 12763 8 F8L413F 190-25 AN..
Magirus-Deutz, Trucks EU Various Models Diesel - - 0 0 0 Various Models
Various Agriculture Vehicles, Agricultural Various Agriculture Vehicles - - 0 0 0
Various Agriculture Vehicles, Agricultural Various Agriculture Vehicles - - 0 0 0
