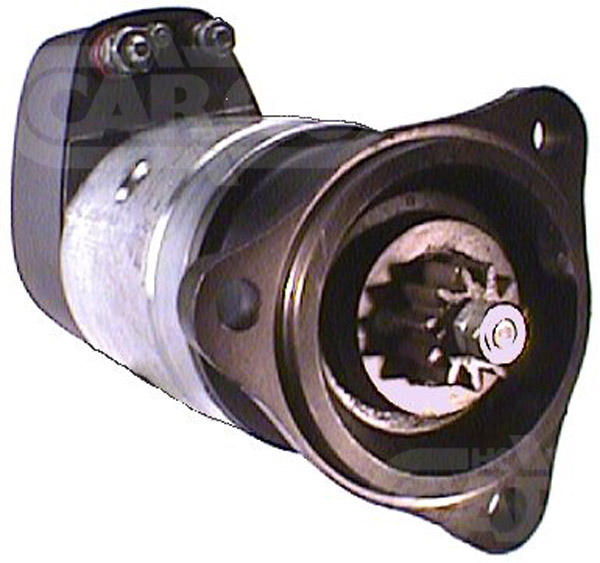

110213 - Starter (110213)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 24, kW 6.6, Mount. flange 115.00, Drive dist. 20.80, Dist./back 365.35, Dist./front 36.40, No. of teeth 11, B+ M12, B- M10, Gear type DD, Dist. 127.00, Dist. 2 127.00, Dist. 3 127.00,
Rotation: CR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 407.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 24
kW 6.6

Physical specifications (Starter)
A Mount. flange 115.00
B Drive dist. 20.80
F Dist./back 365.35
G Dist./front 36.40
H No. of teeth 11
I B+ M12
S B- M10
N Gear type DD
O Dist. 127.00
O Dist. 2 127.00
O Dist. 3 127.00
P Rotation CR
R Total length 407.00

Further information (Starter)
No./mount. holes 3 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001410065 BOSCH
0001411025 BOSCH
0001417005 BOSCH
0070000 ELMOT
11.139.020 ISKRA
19024053 REMY (DELCO)
22703 EFEL
4732242 FIAT
4782803 FIAT
63226301 MAGNETI MARELLI

UNISTART Price: £177.79

Sorry, this item is out of stock.

The 110213 - Starter is shown in: Starters & Alternators > Starters , Trucks, Trailers and Buses > Starters & Alternators , Agriculture > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.165 Platform / Chassis 240-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.186 Platform / Chassis 240-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1984 07 1986 09 243 330 13798 6 8210.22.105 Platform / Chassis 190-33
Iveco, Trucks EU TurboStar 13.8 Diesel 1986 10 1987 05 243 330 13798 6 8210.22.105 Platform / Chassis 190-33
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.191 Platform / Chassis 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.181 Semi-Trailer 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.154 Platform / Chassis 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.162 Platform / Chassis 190-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1993 12 224 305 13798 6 8210.22.175 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.511 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.535 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.511 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.521 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.523 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 224 305 13798 6 8210.22.511 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.535 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.511 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.535 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.521 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.235 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.269 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.270 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.269 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.210 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.270 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.271 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 10 265 360 13798 6 8210.42.235 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 10 265 360 13798 6 8210.42.270 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.269 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.235 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.271 Semi-Trailer P/PA 330-36
Iveco, Trucks EU EuroTrakker 13.8 Diesel 1999 11 2004 11 309 420 13798 6 8210.42L(TCA) Platform / Chassis 410 E 42
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.537 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.525 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.537 Platform / Chassis P/PA 190-30
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.161 Platform / Chassis 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.154 Semi-Trailer 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.181 Platform / Chassis 190-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.175 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.521 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 224 305 13798 6 8210.22.521 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.525 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.523 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.537 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1990 01 1992 12 224 305 13798 6 8210.22.511 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.270 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 10 265 360 13798 6 8210.42.237 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 10 265 360 13798 6 8210.42.269 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.271 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.271 Dump Truck P/PA 330-36
Iveco, Trucks EU EuroTrakker 14 Diesel 1993 01 2004 11 272 370 13798 6 8210.42K Semi-Trailer 440 E 37
Iveco, Trucks EU EuroTrakker 14 Diesel 1993 01 2004 11 309 420 13798 6 8210.42L Semi-Trailer 720 E 42
Iveco, Trucks EU EuroTrakker 14 Diesel 1993 01 2004 11 309 420 13798 6 8210.42L Platform / Chassis 410 E 42
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.195 Platform / Chassis 240-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1986 10 1987 05 243 330 13798 6 8210.22.105 Semi-Trailer 190-33
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.152 Platform / Chassis 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.182 Platform / Chassis 190-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.152 Semi-Trailer 190-36
Iveco, Trucks EU EuroTrakker 13.8 Diesel 1999 11 2004 11 309 420 13798 6 8210.42L(TCA) Platform / Chassis 260 E 42
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.152 Semi-Trailer 220-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.155 Platform / Chassis 240-36
Iveco, Trucks EU EuroTrakker 14 Diesel 1993 01 2004 11 309 420 13798 6 8210.42L Dump Truck 340 E 42
Iveco, Trucks EU EuroTrakker 14 Diesel 1993 01 2004 11 309 420 13798 6 8210.42L Dump Truck 380 E 42
Iveco, Trucks EU TurboStar 13.8 Diesel 1990 07 1993 12 277 377 13798 6 8210.42.191 Semi-Trailer 190-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.523 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 224 305 13798 6 8210.22.537 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.511 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.270 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.271 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.210 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.237 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.210 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.210 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 10 265 360 13798 6 8210.42.210 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 10 265 360 13798 6 8210.42.271 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.210 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.269 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.237 Dump Truck P/PA 330-36
Iveco, Trucks EU Various Models - - 0 0 0 Various Models
Iveco, Trucks EU EuroTrakker 14 Diesel 1993 01 2004 11 309 420 13798 6 8210.42L Semi-Trailer 400 E 42
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.525 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 224 305 13798 6 8210.22.525 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 224 305 13798 6 8210.22.535 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.525 Dump Truck P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.521 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.523 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1990 01 1992 12 224 305 13798 6 8210.22.535 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1990 01 1992 12 224 305 13798 6 8210.22.537 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.271 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.269 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.270 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.270 Dump Truck P/PA 330-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.151 Platform / Chassis 190-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.171 Semi-Trailer 190-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.155 Semi-Trailer 220-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.172 Semi-Trailer 220-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.185 Platform / Chassis 240-36
Iveco, Trucks EU EuroTrakker 13.8 Diesel 1999 11 2004 11 309 420 13798 6 8210.42L. Platform / Chassis 340 E 42
Iveco, Trucks EU EuroTrakker 13.8 Diesel 1999 11 2004 11 272 370 13798 6 8210.42K(TCA) Platform / Chassis 410 E 37
Iveco, Trucks EU P/PA Series 13.8 Diesel 1987 04 1990 12 224 305 13798 6 8210.22.535 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 224 305 13798 6 8210.22.523 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 224 305 13798 6 8210.22.537 Platform / Chassis P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1990 01 1992 12 224 305 13798 6 8210.22.521 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1990 01 1992 12 224 305 13798 6 8210.22.523 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1990 01 1992 12 224 305 13798 6 8210.22.525 Semi-Trailer P/PA 190-30
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1992 12 265 360 13798 6 8210.42.237 Dump Truck P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.235 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1989 01 1990 12 265 360 13798 6 8210.42.237 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.235 Semi-Trailer P/PA 330-36
Iveco, Trucks EU P/PA Series 13.8 Diesel 1991 01 1992 12 265 360 13798 6 8210.42.237 Semi-Trailer P/PA 330-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.171 Platform / Chassis 190-36
Iveco, Trucks EU TurboTech 13.8 Diesel 1990 01 1992 12 277 377 13798 6 8210.42.175 Platform / Chassis 240-36
Iveco, Trucks EU TurboStar 13.8 Diesel 1984 07 1986 09 243 330 13798 6 8210.22.105 Semi-Trailer 190-33
Iveco, Trucks EU TurboStar 13.8 Diesel 1986 01 1987 12 243 330 13798 6 8210.22.105 Platform / Chassis 190-33
Iveco, Trucks EU TurboStar 13.8 Diesel 1987 07 1990 06 265 360 13798 6 8210.42.101 Semi-Trailer 190-33
Iveco, Trucks EU TurboStar 13.8 Diesel 1987 07 1990 06 265 360 13798 6 8210.42.101 Platform / Chassis 190-36
Iveco, Trucks EU EuroTrakker 13.8 Diesel 1999 11 2004 11 309 420 13798 6 8210.42L(TCA) Platform / Chassis 190 E 42
Iveco, Trucks EU EuroTrakker 13.8 Diesel 1999 11 2004 11 309 420 13798 6 8210.42L(TCA) Platform / Chassis 380 E 42
Fiat, Agricultural 400 Diesel 1984 01 - 0 0 0 Diesel 420
Fiat, Agricultural 500 - - 0 0 0 580, DT
