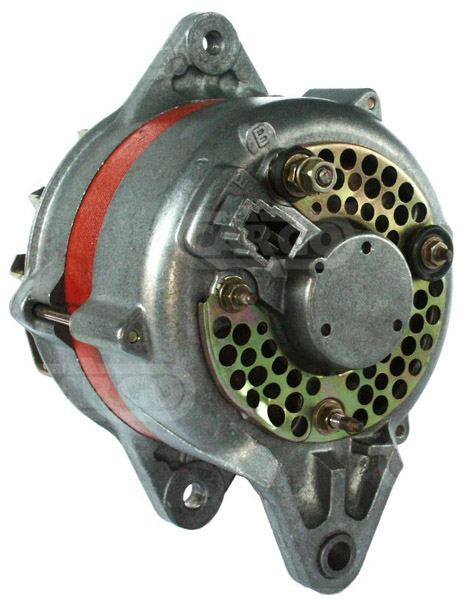

110248 - Alternator (110248)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 40,
Bracket Hole: 10.25, Belt. adj. bracket hole M8-1.25,
Width/Holder Arm: 12.30, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 76.00,
Pulley Dia.: 62.00,
Pulley Dist.: 44.50,
Grooves/Pulley: 4,
Radius: 90.50,
Radius: 87.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL15,
Blower: EF, Pulley SP, Remarks
Regulator Plug: or: HC-CARGO 130627.,
Total Length: 160.00

Electrical specifications (Alternator)
Voltage 14
Amp 40

Physical specifications (Alternator)
D Bracket hole 10.25
G Belt. adj. bracket hole M8-1.25
B Width/holder arm 12.30
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 76.00
H Pulley dia. 62.00
A Pulley dist. 44.50
i Grooves/pulley 4
j Radius 90.50
j Radius 87.00
k B+ position M6
n Rotation CR
o Regulator plug PL15
R Total length 160.00

Further information (Alternator)
Blower EF
Pulley SP
Remarks Regulator: HC-CARGO 130627.

Replacing
021000-0140 DENSO
021000-0441 DENSO
021000-5190 DENSO
021000-8270 DENSO
021000-8271 DENSO
021000-8310 DENSO
021000-8311 DENSO
121000-0430 DENSO
121000-0431 DENSO
121000-0432 DENSO

UNISTART Price: £118.48

Sorry, this item is out of stock.

The 110248 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Model F 1.8 Gasoline 1982 11 1984 08 58 79 1812 4 2Y Bus Model F
Toyota, Passenger Car EU Hiace 1.8 Gasoline 1983 03 1989 11 58 79 1812 4 2Y Bus Hiace
Toyota, Passenger Car EU Hiace 1.8 Gasoline 1983 03 1989 11 58 79 1812 4 2Y Van Hiace
Toyota, Passenger Car EU Hilux 1.8 Gasoline 1988 08 1994 07 61 83 1812 4 2Y Pick Up Hilux
Toyota, Passenger Car EU Model F 1.8 Gasoline 1982 11 1984 08 58 79 1812 4 2Y-C Bus Model F
Toyota, Passenger Car EU Hiace 2 Gasoline 1984 01 1989 11 65 88 1998 4 3Y Van Hiace
Toyota, Passenger Car EU Dyna 2 Gasoline 1984 09 1987 08 79 107 1998 4 3Y Platform / Chassis Dyna
Toyota, Passenger Car EU Liteace 1.8 Diesel 1982 10 1985 09 41 56 1839 4 Diesel 1C Bus Liteace
Toyota, Passenger Car EU Model F 2 Gasoline 1984 08 1988 08 65 88 1998 4 3Y-C Bus Model F
Toyota, Passenger Car EU Model F 2 Gasoline 1984 08 1988 08 65 88 1998 4 3Y Bus Model F
Toyota, Passenger Car EU Hilux 2.2 Gasoline 1987 01 1989 12 69 94 2237 4 4Y Pick Up 4WD Hilux
Toyota, Passenger Car EU Hiace 2 Gasoline 1985 01 1989 08 65 88 1998 4 3Y Bus Hiace
Toyota, Passenger Car EU Hilux 2 Gasoline 1984 01 1986 12 65 88 1998 4 3Y Pick Up Hilux
Honda, Passenger cars US Prelude 1.8 Gasoline 1979 01 1982 01 0 0 1751 L4 EK1 Prelude
Honda, Passenger cars US Accord 1.6 Gasoline 1976 01 1978 01 0 0 1599 L4 EF1 Accord
Honda, Passenger cars US Accord 1.8 Gasoline 1981 01 1981 01 0 0 1751 L4 SE Accord
Honda, Passenger cars US Accord 1.8 Gasoline 1979 01 1980 01 0 0 1751 L4 EK1 DX Accord
Honda, Passenger cars US Accord 1.6 Gasoline 1978 01 1978 01 0 0 1599 L4 EF1 LX Accord
Honda, Passenger cars US Accord 1.8 Gasoline 1979 01 1982 01 0 0 1751 L4 EK1 LX Accord
Honda, Passenger cars US Accord 1.8 Gasoline 1981 01 1982 01 0 0 1751 L4 Accord
Honda, Passenger cars US Accord 1.8 Gasoline 1979 01 1980 01 0 0 1751 L4 EK1 Accord
Buick, Passenger cars US Opel 1.8 Gasoline 1977 01 1979 01 0 0 1816 L4 Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1977 01 - 0 0 1816 L4 Deluxe Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1979 01 - 0 0 1816 L4 Deluxe Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1978 01 - 0 0 1816 L4 Sport Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1978 01 - 0 0 1816 L4 Deluxe Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1979 01 - 0 0 1816 L4 Sport Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1977 01 - 0 0 1816 L4 Deluxe Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1977 01 1979 01 0 0 1816 L4 Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1979 01 - 0 0 1816 L4 Deluxe Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1978 01 - 0 0 1816 L4 Sport Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1978 01 - 0 0 1816 L4 Deluxe Opel
Buick, Passenger cars US Opel 1.8 Gasoline 1979 01 - 0 0 1816 L4 Sport Opel
