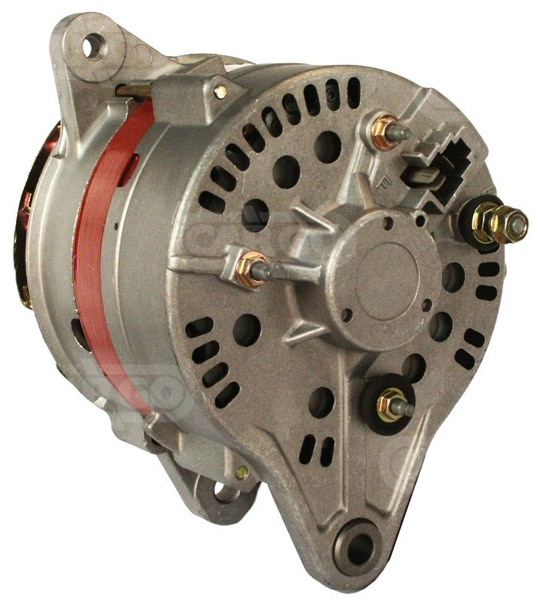

110250 - Alternator (110250)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 50,
Bracket Hole: 10.30, Belt. adj. bracket hole M8,
Width/Holder Arm: 12.00, Belt. adj. brackethole pos. 6,
Mount. Bracket Dist.: 66.50,
Pulley Dia.: 55.00,
Pulley Dist.: 41.00,
Grooves/Pulley: 5,
Radius: 88.00,
Radius: 88.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL15,
Blower: EF, Pulley SP, Remarks
Regulator Plug: or: HC-CARGO 130627.,
Total Length: 165.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 50 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.30 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 12.00 | |||
| E | Belt. adj. brackethole pos. 6 | |||
| C | Mount. bracket dist. 66.50 | |||
| H | Pulley dia. 55.00 | |||
| A | Pulley dist. 41.00 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 88.00 | |||
| j | Radius 88.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL15 | |||
| R | Total length 165.50 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | SP | |||
| Remarks | Regulator: HC-CARGO 130627. | |||
Replacing | ||||
| 121000-0450 | DENSO | |||
| 121000-0451 | DENSO | |||
| 121000-1010 | DENSO | |||
| 121000-1011 | DENSO | |||
| 121000-1012 | DENSO | |||
| 27020-16030 | TOYOTA | |||
| 27020-16040 | TOYOTA | |||
| 27020-63010 | TOYOTA | |||
UNISTART Price: £88.95
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 09 | 51 | 69 | 1296 | 4 | 2A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1986 10 | 1987 11 | 63 | 86 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Celica | 1.6 | Gasoline | 1977 08 | 1981 07 | 63 | 86 | 1588 | 4 | 4A-L | Coupe | Celica | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 08 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 08 | 1987 08 | 53 | 72 | 1587 | 4 | 4A-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 08 | 1987 08 | 54 | 73 | 1587 | 4 | 4A-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 10 | 51 | 69 | 1296 | 4 | 2A-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1983 06 | 1987 08 | 62 | 84 | 1588 | 4 | 4A-L | Corolla | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 01 | 1987 09 | 54 | 73 | 1587 | 4 | 4A-LC | Hatchback | FX | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 70 | 95 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Land Cruiser | 2.4 | Gasoline | 1988 12 | 1996 12 | 84 | 114 | 2366 | 4 | 22RE | Land Cruiser | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1989 12 | 66 | 90 | 1587 | 4 | 4A-F | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1983 06 | 1987 08 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 66 | 90 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 12 | 1988 05 | 54 | 73 | 1587 | 4 | 4A-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 07 | 1988 05 | 63 | 86 | 1587 | 4 | 4A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 09 | 51 | 69 | 1296 | 4 | 2A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1986 10 | 1987 11 | 63 | 86 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Celica | 1.6 | Gasoline | 1977 08 | 1981 07 | 63 | 86 | 1588 | 4 | 4A-L | Coupe | Celica | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 08 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 08 | 1987 08 | 53 | 72 | 1587 | 4 | 4A-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 08 | 1987 08 | 54 | 73 | 1587 | 4 | 4A-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 10 | 51 | 69 | 1296 | 4 | 2A-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1983 06 | 1987 08 | 62 | 84 | 1588 | 4 | 4A-L | Corolla | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 01 | 1987 09 | 54 | 73 | 1587 | 4 | 4A-LC | Hatchback | FX | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 70 | 95 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Land Cruiser | 2.4 | Gasoline | 1988 12 | 1996 12 | 84 | 114 | 2366 | 4 | 22RE | Land Cruiser | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1989 12 | 66 | 90 | 1587 | 4 | 4A-F | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1983 06 | 1987 08 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 66 | 90 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 07 | 1988 05 | 63 | 86 | 1587 | 4 | 4A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 12 | 1988 05 | 54 | 73 | 1587 | 4 | 4A-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 09 | 51 | 69 | 1296 | 4 | 2A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 10 | 51 | 69 | 1296 | 4 | 2A-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-LC | Corolla | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1989 12 | 66 | 90 | 1587 | 4 | 4A-F | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 70 | 95 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 66 | 90 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 09 | 51 | 69 | 1296 | 4 | 2A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1986 10 | 1987 11 | 63 | 86 | 1588 | 4 | 4A-L | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Celica | 1.6 | Gasoline | 1977 08 | 1981 07 | 63 | 86 | 1588 | 4 | 4A-L | Coupe | Celica | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 08 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 08 | 1987 08 | 53 | 72 | 1587 | 4 | 4A-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 08 | 1987 08 | 54 | 73 | 1587 | 4 | 4A-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1983 06 | 1984 10 | 51 | 69 | 1296 | 4 | 2A-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1983 06 | 1987 08 | 62 | 84 | 1588 | 4 | 4A-L | Corolla | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Hatchback | Carina | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 62 | 84 | 1588 | 4 | 4A-L | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 01 | 1987 09 | 54 | 73 | 1587 | 4 | 4A-LC | Hatchback | FX | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1989 12 | 66 | 90 | 1587 | 4 | 4A-F | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 70 | 95 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Land Cruiser | 2.4 | Gasoline | 1988 12 | 1996 12 | 84 | 114 | 2366 | 4 | 22RE | Land Cruiser | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1983 06 | 1987 08 | 62 | 84 | 1588 | 4 | 4A-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1987 08 | 1992 04 | 66 | 90 | 1587 | 4 | 4A-F | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1983 10 | 1987 11 | 55 | 75 | 1587 | 4 | 4A-LC | Carina | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 12 | 1988 05 | 54 | 73 | 1587 | 4 | 4A-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1985 07 | 1988 05 | 63 | 86 | 1587 | 4 | 4A-L | Hatchback | Corolla |
