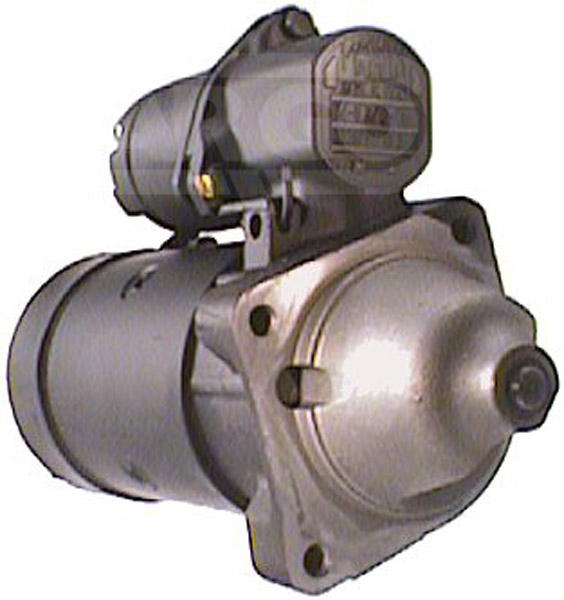

110338 - Starter (110338)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 0.8, Mount. flange 66.90, Drive dist. 12.00, Dist./back 193.00, Dist./front 51.00, No. of teeth 9, B+ M8, Gear type DD, Dist. 96.00, Dist. 2 61.50, Dist. 3 67.00,
Rotation: CR, No./mount. holes 3 (3),
Drive Type: Steel,
Total Length: 254.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 0.8

Physical specifications (Starter)
A Mount. flange 66.90
B Drive dist. 12.00
F Dist./back 193.00
G Dist./front 51.00
H No. of teeth 9
I B+ M8
N Gear type DD
O Dist. 96.00
O Dist. 2 61.50
O Dist. 3 67.00
P Rotation CR
R Total length 254.00

Further information (Starter)
No./mount. holes 3 (3)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
11.130.321 ISKRA
11.130.519 ISKRA
11.130.964 ISKRA
4198600 FIAT
4198601 FIAT
4436732 FIAT
46231525 FIAT
63220701 MAGNETI MARELLI
63220721 MAGNETI MARELLI
63220731 MAGNETI MARELLI

UNISTART Price: £101.53

Sorry, this item is out of stock.

The 110338 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 09 1988 12 55 75 1498 4 138C2.048 Hatchback Ritmo
Fiat, Passenger Car EU 128 1.3 Gasoline 1972 03 1979 12 55 75 1290 4 128AC.000 Coupe 1300 128
Fiat, Passenger Car EU 128 1.1 Gasoline - 1984 12 40 55 1116 4 128A.000 1100 128
Fiat, Passenger Car EU 128 1.3 Gasoline 1974 08 1984 12 44 60 1290 4 128A1.000 1300 Sport 128
Fiat, Passenger Car EU Regata 1.3 Gasoline 1983 09 1989 07 48 65 1301 4 149A3.000 ES Regata
Fiat, Passenger Car EU 128 1.1 Gasoline 1972 03 1981 02 47 64 1116 4 128AC5.000 Coupe 1100 128
Fiat, Passenger Car EU 128 1.1 Gasoline 1975 02 1981 02 33 45 1116 4 128A.048 Estate 1100 128
Fiat, Passenger Car EU 128 1.3 Gasoline 1974 12 1982 10 44 60 1290 4 128A1.000 Estate 1300 128
Fiat, Passenger Car EU 128 1.1 Gasoline 1975 02 1981 09 33 45 1116 4 128A.048 1100 128
Fiat, Passenger Car EU Ritmo 1.1 Gasoline 1982 10 1985 10 40 55 1116 4 138B.000 Hatchback Ritmo
Fiat, Passenger Car EU Ritmo 1.1 Gasoline 1985 04 1987 12 43 58 1116 4 146A4.048 Hatchback Ritmo
Fiat, Passenger Car EU Ritmo 1.3 Gasoline 1983 01 1985 04 50 68 1301 4 138B2.000 Hatchback Ritmo
Fiat, Passenger Car EU X-1/9 1.3 Gasoline 1973 05 1979 12 55 75 1290 4 128AS.000 Convertible X1/9
Fiat, Passenger Car EU Uno 1.3 Gasoline 1983 01 1985 04 50 68 1302 4 138B2.000 Hatchback Uno
Fiat, Passenger Car EU 128 1.1 Gasoline 1975 08 1981 02 48 65 1116 4 128AC5.000 Coupe 1100 128
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 09 1988 12 55 75 1498 4 149C1.000 Hatchback Ritmo
Fiat, Passenger Car EU Ritmo 1.3 Gasoline 1983 11 1985 08 48 65 1301 4 149A3.000 Hatchback Ritmo
Fiat, Passenger Car EU Ritmo 1.3 Gasoline 1983 11 1985 08 48 65 1301 4 149A7.000 Hatchback Ritmo
Fiat, Passenger Car EU Ritmo 1.3 Gasoline 1985 10 1987 12 50 68 1302 4 138B2.000 Convertible Bertone Ritmo
Fiat, Passenger Car EU 128 1.3 Gasoline 1975 06 1979 12 54 73 1290 4 128AC.000 Coupe 1300 Berlinetta 128
Fiat, Passenger Car EU Ritmo 1.3 Gasoline 1978 01 1982 09 48 65 1301 4 138A1.000 Hatchback Ritmo
Fiat, Passenger Car EU Regata 1.3 Gasoline 1983 09 1989 07 48 65 1301 4 149A7.000 ES Regata
Fiat, Passenger Car EU X-1/9 1.3 Gasoline 1975 10 1978 06 54 73 1290 4 128AS.000 Convertible X1/9
Fiat, Passenger Car EU Uno 1.1 Gasoline 1983 01 1989 08 40 54 1116 4 138B.000 Hatchback Uno
Fiat, Passenger Car EU Uno 1.3 Gasoline 1985 05 1989 08 48 65 1302 4 149A7.000 Hatchback Uno
Fiat, Passenger Car EU 128 1.3 Gasoline 1971 09 1976 02 49 67 1290 4 128AR000 1300 Rally 128
Fiat, Passenger Car EU 128 1.1 Gasoline - 1982 10 40 55 1116 4 128A.000 Estate 1100 128
Fiat, Passenger Car EU Ritmo 1.1 Gasoline 1982 10 1985 10 40 55 1116 4 138B1.000 Hatchback Ritmo
Fiat, Passenger Car EU Uno 1.1 Gasoline 1985 05 1989 08 43 58 1116 4 146A4.048 Hatchback Uno
Fiat, Passenger Car EU Regata 1.3 Gasoline 1983 09 1986 07 50 68 1301 4 138B2.000 Regata
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 09 1988 12 55 75 1498 4 138A2.000 Hatchback Ritmo
Zastava, Passenger Car EU 101 1.1 Gasoline 1975 05 1993 12 41 56 1116 4 128A.064 Hatchback 1100 101
Zastava, Passenger Car EU 101 1.1 Gasoline 1973 06 1990 01 40 55 1116 4 128A.000 Hatchback 101
Zastava, Passenger Car EU 101 1.1 Gasoline 1979 07 1981 09 47 64 1116 4 128AC5000 Hatchback Super 101
Zastava, Passenger Car EU Yugo 1.3 Gasoline 1991 03 1993 12 50 68 1302 4 13E.3.064 Hatchback Yugo
Zastava, Passenger Car EU 101 1.1 Gasoline 1975 12 1980 01 37 50 1116 4 128A.000 Hatchback 101
Zastava, Passenger Car EU 101 1.3 Gasoline 1981 10 1993 12 48 65 1290 4 128AR000 Hatchback 1100 101
Lancia, Passenger Car EU Delta 1.3 Gasoline 1979 09 1992 08 55 75 1301 4 831B.000 Hatchback Delta
Lancia, Passenger Car EU Delta 1.3 Gasoline 1979 09 1992 08 55 75 1301 4 831A2.000 Hatchback Delta
Lancia, Passenger Car EU Delta 1.3 Gasoline 1983 09 1992 08 58 79 1301 4 831B.000 Hatchback Delta
Lancia, Passenger Car EU Delta 1.1 Gasoline 1986 01 1990 12 47 64 1116 4 831B8.000 Hatchback Delta
