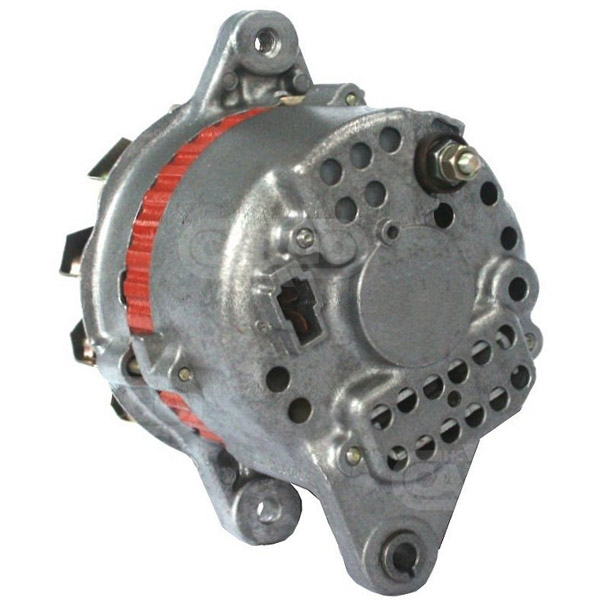

110385 - Alternator (110385)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 40,
Bracket Hole: 8.5, Belt. adj. bracket hole M8,
Width/Holder Arm: 15.0, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 66.0,
Pulley Dia.: 73.00,
Pulley Dist.: 41.0,
Grooves/Pulley: 1,
Radius: 78.0,
Radius: 78.0,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL10,
Blower: EF, Pulley P,
Total Length: 144.0
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 40 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.5 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 15.0 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 66.0 | |||
| H | Pulley dia. 73.00 | |||
| A | Pulley dist. 41.0 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 78.0 | |||
| j | Radius 78.0 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL10 | |||
| R | Total length 144.0 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 31400-80010 | SUZUKI | |||
| 31400-80011 | SUZUKI | |||
| 42990-5600 | SUBARU | |||
| A001T33771 | MITSUBISHI | |||
| a1t33771 | MITSUBISHI | |||
| lr140-128 | HITACHI | |||
UNISTART Price: £0.00
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suzuki, Passenger Car EU | Carry | 1 | Gasoline | 1996 11 | 1999 03 | 29 | 39 | 970 | 4 | F10A | Van | Carry | ||
| Suzuki, Passenger Car EU | Carry | 1 | Gasoline | 1985 07 | 1990 12 | 33 | 45 | 970 | 4 | F10A | Van | Carry | ||
| Suzuki, Passenger Car EU | Alto | 0.8 | Gasoline | 1986 01 | 1993 11 | 29 | 39 | 796 | 3 | F8B | Hatchback | Alto | ||
| Suzuki, Passenger Car EU | SJ | 1 | Gasoline | 1981 09 | 1988 12 | 33 | 45 | 970 | 4 | F10A | Convertible | 4WD | SJ 410 | |
| Suzuki, Passenger Car EU | SJ | 1 | Gasoline | 1981 09 | 1988 12 | 33 | 45 | 970 | 4 | F10A | 4WD | SJ 410 | ||
| Suzuki, Passenger Car EU | Carry | 1 | Gasoline | 1994 09 | 1999 03 | 30 | 41 | 970 | 4 | F10A | Bus | Carry | ||
| Suzuki, Passenger Car EU | Carry | 1 | Gasoline | 1985 10 | 1999 03 | 33 | 45 | 970 | 4 | F10A | Bus | Carry | ||
| Suzuki, Passenger Car EU | Carry | 1 | Gasoline | 1992 10 | 1999 03 | 31 | 42 | 970 | 4 | F10A | Bus | Carry | ||
| Subaru, Passenger Car EU | Rex | 0.5 | Gasoline | 1981 08 | 1987 06 | 23 | 31 | 544 | 2 | EK23 | Hatchback | 550 | Rex | |
| Subaru, Passenger Car EU | Rex | 0.5 | Gasoline | 1983 08 | 1987 06 | 23 | 31 | 544 | 2 | EK23 | Hatchback | 550 4WD | Rex | |
| Subaru, Passenger Car EU | Rex | 0.7 | Gasoline | 1982 08 | 1989 06 | 27 | 37 | 665 | 2 | EK42 | Hatchback | 700 | Rex | |
| Subaru, Passenger Car EU | Rex | 0.5 | Gasoline | 1984 07 | 1987 06 | 30 | 41 | 544 | 2 | Turbo | Hatchback | 550 | Rex | |
| Bedford, Passenger Car EU | Rascal | 1 | Gasoline | 1986 07 | 1990 06 | 34 | 46 | 970 | 4 | FA10A | Van | Rascal | ||
| Bedford, Passenger Car EU | Rascal | 1 | Gasoline | 1986 07 | 1990 06 | 34 | 46 | 970 | 4 | FA10A | Bus | Rascal |
