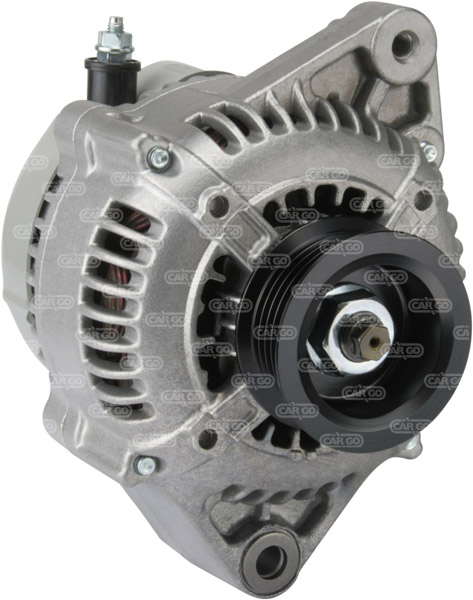

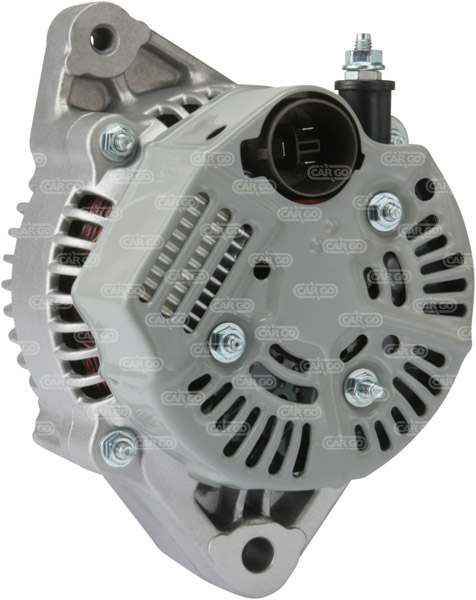

110496 - Alternator (110496)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 60,
Bracket Hole: 10.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00,
Pulley Dia.: 55.00,
Pulley Dist.: 90.00,
Grooves/Pulley: 5,
Radius: 79.00,
Radius: 82.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL12,
Blower: IF, Pulley SP,
Total Length: 153.50

Electrical specifications (Alternator)
Voltage 14
Amp 60

Physical specifications (Alternator)
D Bracket hole 10.00
G Belt. adj. bracket hole M8
B Width/holder arm 58.00
H Pulley dia. 55.00
A Pulley dist. 90.00
i Grooves/pulley 5
j Radius 79.00
j Radius 82.00
k B+ position M6
n Rotation CR
o Regulator plug PL12
R Total length 153.50

Further information (Alternator)
Blower IF
Pulley SP

Replacing
100211-1040 DENSO
100211-1041 DENSO
100211-1320 DENSO
100211-1321 DENSO
100211-1340 DENSO
100211-1341 DENSO
100211-2280 DENSO
100211-2281 DENSO
100211-2300 DENSO
100211-2302 DENSO

UNISTART Price: £102.38

Sorry, this item is out of stock.

The 110496 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Celica 1.6 Gasoline 1983 12 1985 12 91 124 1587 4 4A-GE Coupe GT Celica
Toyota, Passenger Car EU Celica 1.6 Gasoline 1986 04 1989 08 63 86 1588 4 4A-L Celica
Toyota, Passenger Car EU Celica 1.6 Gasoline 1986 04 1989 08 63 86 1588 4 4A-L Hatchback Celica
Toyota, Passenger Car EU Starlet 1 Gasoline 1989 12 1992 12 40 54 999 4 1E Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1984 10 1989 12 55 75 1295 4 2E-LC Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.5 Diesel 1986 12 1989 12 40 54 1453 4 Diesel 1N Hatchback Starlet
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1985 08 1987 08 89 121 1587 4 16V 4A-GEL Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1983 08 1987 07 91 124 1587 4 16V 4A-GE Coupe Corolla
Toyota, Passenger Car EU Camry 2 Gasoline 1983 03 1986 10 79 107 1995 4 2S-EL Camry
Toyota, Passenger Car EU Celica 1.6 Gasoline 1985 09 1989 08 91 124 1587 4 16V 4A-GEL Hatchback GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1985 08 1989 08 110 150 1998 4 3S-GEL Hatchback GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1985 09 1989 08 103 140 1998 4 3S-GELC Hatchback GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1987 01 1989 08 110 150 1998 4 3S-GEL Celica
Toyota, Passenger Car EU Camry 2 Gasoline 1986 04 1988 01 73 99 1995 4 2S-ELC Hatchback Camry
Toyota, Passenger Car EU Camry 2 Gasoline 1986 04 1988 01 73 99 1995 4 2S-E Camry
Toyota, Passenger Car EU Camry 2 Gasoline 1986 04 1988 01 73 99 1995 4 2S-ELC Camry
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1987 07 1993 06 92 125 1587 4 GTi 4A-GE Hatchback Corolla
Toyota, Passenger Car EU Camry 1.8 Gasoline 1986 11 1988 08 66 90 1832 4 1S Estate Camry
Toyota, Passenger Car EU Starlet 1 Gasoline 1984 10 1989 12 40 54 999 4 1E-L Hatchback Starlet
Toyota, Passenger Car EU Carina 1.6 Gasoline 1983 10 1987 11 55 75 1587 4 4A-LC Hatchback Carina
Toyota, Passenger Car EU Camry 1.8 Gasoline 1983 02 1986 10 66 90 1832 4 1S-L Hatchback Camry
Toyota, Passenger Car EU Carina 1.6 Gasoline 1983 10 1987 11 74 101 1832 4 1S-EL Carina
Toyota, Passenger Car EU Camry 1.8 Gasoline 1983 02 1986 10 66 90 1832 4 1S-L Camry
Toyota, Passenger Car EU Celica 1.6 Gasoline 1987 08 1989 08 85 116 1587 4 4A-GELC Hatchback GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1986 10 1989 08 110 150 1998 4 3S-GEL Convertible GT Celica
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1985 12 1987 04 85 115 1587 4 16V 4A-GEC Coupe Corolla
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1989 12 1992 12 55 75 1296 4 12V 2E-E Hatchback Starlet
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1987 08 1992 04 85 116 1587 4 4A-GE Hatchback Corolla
Toyota, Passenger Car EU Carina 1.6 Gasoline 1983 10 1987 11 55 75 1587 4 4A-LC Carina
Toyota, Passenger Car EU Celica 2 Gasoline 1985 08 1989 08 103 140 1998 4 3S-GELC Convertible GT Celica
Toyota, Passenger Car EU MR2 1.6 Gasoline 1984 11 1990 06 85 116 1587 4 16V 4A-GELC Coupe MR2
Toyota, Passenger Car EU MR2 1.6 Gasoline 1984 11 1990 06 91 124 1587 4 16V 4A-GEL Coupe MR2
Toyota, Passenger Car EU Camry 1.8 Gasoline 1986 10 1988 08 66 90 1832 4 i 1S-L Camry
Toyota, Passenger Car EU Celica 1.6 Gasoline 1986 04 1989 08 91 124 1587 4 16V 4A-GEL GT Celica
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1989 12 1992 12 55 75 1296 4 12V 2E Hatchback Starlet
Toyota, Passenger cars US MR2 1.6 Gasoline 1985 01 1989 01 0 0 1587 L4 4A-GELC MR2
Toyota, Passenger cars US Tercel 1.5 Gasoline 1990 01 1994 01 0 0 1456 L4 3EE DLX Tercel
Toyota, Passenger cars US Tercel 1.5 Gasoline 1991 01 1994 01 0 0 1456 L4 3EE Tercel
Toyota, Passenger cars US Corolla 1.6 Gasoline 1985 01 1987 01 0 0 1587 L4 4A-GEC GTS Sport Corolla
Toyota, Passenger cars US Tercel 1.5 Gasoline 1987 01 1988 01 0 0 1456 L4 3E DLX Tercel
Toyota, Passenger cars US Corolla 1.6 Gasoline 1987 01 1988 01 0 0 1587 L4 4A-GELC FX16 GTS Corolla
Toyota, Passenger cars US Paseo 1.5 Gasoline 1992 01 1995 01 0 0 1497 L4 5E-FE Paseo
Toyota, Passenger cars US Tercel 1.5 Gasoline 1988 01 1988 01 0 0 1456 L4 3E EZ Tercel
Toyota, Passenger cars US Tercel 1.5 Gasoline 1990 01 1990 01 0 0 1456 L4 3EE EZ Tercel
Toyota, Passenger cars US Tercel 1.5 Gasoline 1990 01 1990 01 0 0 1456 L4 S Tercel
Toyota, Passenger cars US Tercel 1.5 Gasoline 1991 01 1993 01 0 0 1456 L4 3EE LE Tercel
Toyota, Passenger cars US Corolla 1.6 Gasoline 1987 01 1988 01 0 0 1587 L4 4A-GELC FX16 Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1988 01 1991 01 0 0 1587 L4 4A-GE GTS Corolla
Toyota, Passenger cars US Tercel 1.5 Gasoline 1987 01 1990 01 0 0 1456 L4 3E Tercel
Toyota, Passenger cars US Tercel 1.5 Gasoline 1991 01 1994 01 0 0 1456 L4 S Tercel
