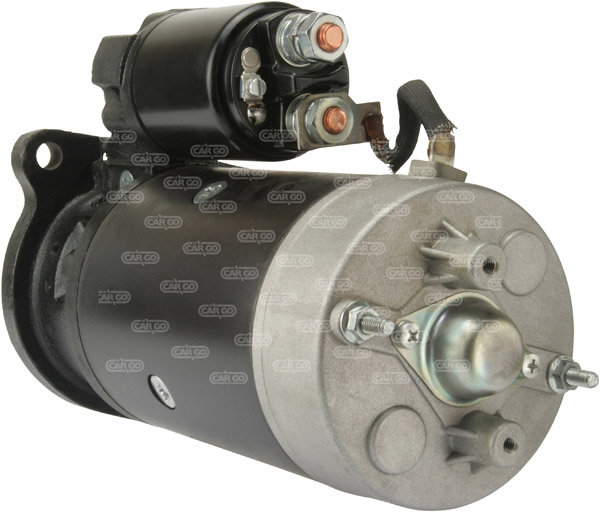

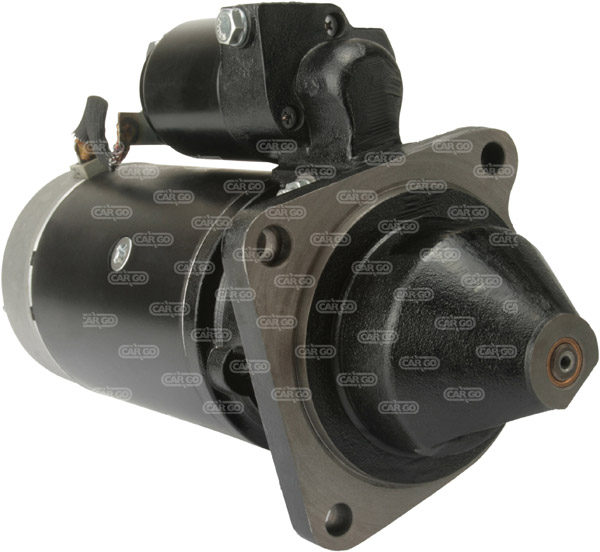

110521 - Starter (110521)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 24, kW 4.0, Mount. flange 110.00, Drive dist. 27.00, Dist./back 255.00, Dist./front 75.00, No. of teeth 9, B+ M10, Gear type DD, Dist. 147.00, Dist. 2 103.00, Dist. 3 103.00,
Rotation: CR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 343.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 24 | |||
| kW | 4.0 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 110.00 | |||
| B | Drive dist. 27.00 | |||
| F | Dist./back 255.00 | |||
| G | Dist./front 75.00 | |||
| H | No. of teeth 9 | |||
| I | B+ M10 | |||
| N | Gear type DD | |||
| O | Dist. 147.00 | |||
| O | Dist. 2 103.00 | |||
| O | Dist. 3 103.00 | |||
| P | Rotation CR | |||
| R | Total length 343.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (0) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001360015 | BOSCH | |||
| 0001360043 | BOSCH | |||
| 0001368019 | BOSCH | |||
| 04763995 | FIAT | |||
| 063216731010 | MAGNETI MARELLI | |||
| 11.130.225 | ISKRA | |||
| 11.130.492 | ISKRA | |||
| 11.139.453 | ISKRA | |||
| 11380 | EFEL | |||
| 11930 | EFEL | |||
UNISTART Price: £129.09
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 100 | 136 | 3908 | 4 | 8040.45.4000TCA | Dump Truck | 60 E 14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 12 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Platform / Chassis | 65 E 12 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4000 | Platform / Chassis | 75 E 14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Platform / Chassis | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Platform / Chassis | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | Zeta | 3.7 | Diesel | 1983 01 | 1986 12 | 63 | 86 | 3666 | 0 | 8040.04.200 | Platform / Chassis | 50-8 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Dump Truck | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5500 | 6 | 8060.04.669 | Platform / Chassis | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 02 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Dump Truck | 65 E 12 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 02 | 100 | 136 | 3908 | 4 | 8040.45.4000TCA | Platform / Chassis | 65 E 14 | ||
| Iveco, Trucks EU | Various Models | - | - | 0 | 0 | 0 | Various Models | |||||||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Platform / Chassis | 60 E 12 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 100 | 136 | 3908 | 4 | 8040.45.4000TCA | Platform / Chassis | 60 E 14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 2000 02 | 85 | 116 | 3908 | 4 | 8040.25X.4000TC | Platform / Chassis | 75 E 12 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Dump Truck | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 01 | 1985 11 | 99 | 135 | 5500 | 6 | 8060.04.660 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 12 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.280 | Twin Cab | 79-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5500 | 6 | 8060.04.669 | Dump Truck | 95-14 | ||
| Iveco, Trucks EU | Zeta | 3.7 | Diesel | 1983 01 | 1986 12 | 63 | 86 | 3666 | 0 | 8040.04.200 | Dump Truck | 50-8 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.660 | Platform / Chassis | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1979 11 | 1983 12 | 96 | 131 | 5500 | 6 | 8060.04.060 | Twin Cab | 79-13 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 07 | 1985 10 | 99 | 135 | 5500 | 6 | 8060.04.669 | Dump Truck | 95-14 | ||
| Iveco, Trucks EU | Zeta | 5.5 | Diesel | 1983 06 | 1985 12 | 99 | 135 | 5500 | 6 | 8060.04.689 | Platform / Chassis | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.289 | Platform / Chassis | 109-14 | ||
| Iveco, Trucks EU | Zeta | 5.9 | Diesel | 1985 11 | 1991 03 | 101 | 137 | 5861 | 6 | 8060.05.289 | Dump Truck | 109-14 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | 1996 12 | 75 | 102 | 3908 | 4 | 8040.25B.4200LTC | Platform / Chassis | 65 E 10 | ||
| Iveco, Trucks EU | EuroCargo | 4 | Diesel | 1991 01 | - | 100 | 136 | 3908 | 4 | 8040.45.4180 | Platform / Chassis | 75 E 14 | ||
| Fiat-Allis, Agricultural | FE | 1981 10 | 1989 10 | 0 | 0 | 0 | FE 16 | |||||||
| Fiat-Allis, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Diesel | Various Models | |||||
| Fiat-Allis, Agricultural | FR | - | - | 0 | 0 | 0 | FR 9 | |||||||
| Fiat-Allis, Agricultural | 65 | 5.9 | Diesel | 1986 01 | 2001 01 | 0 | 0 | 5861 | 6 | Diesel | 8061.. | 65 B | ||
| Fiat-Allis, Agricultural | FR | - | - | 0 | 0 | 0 | FR 7 | |||||||
| Iveco, MOTOR | Aifo | 4.9 | Diesel | 1984 01 | - | 0 | 0 | 4885 | 5 | 8051.05.. | 8051 | |||
| Iveco, MOTOR | Aifo | 3.9 | Diesel | 1986 06 | - | 0 | 0 | 3908 | 4 | 8041.05.. | 8041 | |||
| Iveco, MOTOR | Aifo | 5.5 | Diesel | 1983 06 | - | 0 | 0 | 0 | 8061.04.. | 8061 | ||||
| Iveco, MOTOR | Aifo | 4.9 | Diesel | 1984 01 | - | 0 | 0 | 4885 | 5 | 8051.05.. | 8051 |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
