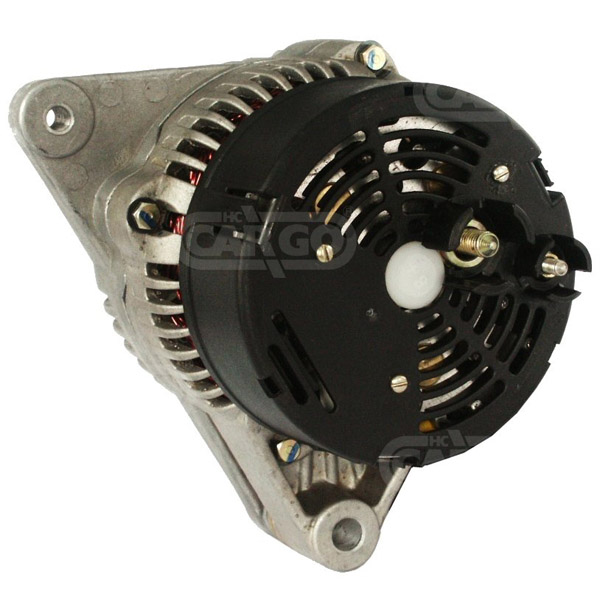

110619 - Alternator (110619)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 56.10, Belt. adj. brackethole pos. 10,
Pulley Dia.: 65.60,
Pulley Dist.: 95.00,
Grooves/Pulley: 1,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley P,
Total Length: 170.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.20 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 56.10 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| H | Pulley dia. 65.60 | |||
| A | Pulley dist. 95.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 90.00 | |||
| j | Radius 90.00 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 170.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 0120335007 | BOSCH | |||
| 2541298 | VALEO | |||
| 2541298a | VALEO | |||
| 2541719 | VALEO | |||
| 2541763 | VALEO | |||
| 2541763A | VALEO | |||
| 2541763C | VALEO | |||
| 2541763D | VALEO | |||
| 63321641 | MAGNETI MARELLI | |||
| 63321770 | MAGNETI MARELLI | |||
UNISTART Price: £94.50
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Peugeot, Passenger Car EU | 405 | 1.4 | Gasoline | 1992 08 | 1995 10 | 55 | 75 | 1361 | 4 | KDX (TU3MC) | 405 | |||
| Peugeot, Passenger Car EU | 106 | 1.3 | Gasoline | 1993 10 | 1996 04 | 72 | 98 | 1294 | 4 | TU2J2 | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 106 | 1.4 | Gasoline | 1991 09 | 1996 04 | 55 | 75 | 1361 | 4 | KDY (TU3M) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 306 | 1.1 | Gasoline | 1994 06 | 2001 05 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | 306 | |||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1997 03 | 2002 04 | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Estate | 306 | |
| Peugeot, Passenger Car EU | 106 | 1 | Gasoline | 1997 01 | - | 37 | 50 | 954 | 4 | i | CDZ (TU9M) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | Partner | 1.1 | Gasoline | 1996 06 | - | 44 | 60 | 1124 | 4 | HFX (TU1JP) | MPV | Partner | ||
| Peugeot, Passenger Car EU | Partner | 1.4 | Gasoline | 1996 06 | - | 55 | 75 | 1360 | 4 | KFX (TU3JP) | MPV | Partner | ||
| Peugeot, Passenger Car EU | 106 | 1.4 | Gasoline | 1991 08 | 1996 03 | 51 | 69 | 1360 | 4 | K5A (TU3) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 106 | 1.6 | Gasoline | 1993 06 | 1996 04 | 65 | 88 | 1587 | 4 | NFZ (TU5JP) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1993 05 | 2001 05 | 55 | 75 | 1360 | 4 | KDX (TU3MC) | Hatchback | 306 | ||
| Peugeot, Passenger Car EU | 405 | 1.4 | Gasoline | 1992 08 | 1996 10 | 55 | 75 | 1361 | 4 | KDX (TU3MC) | Estate | 405 | ||
| Peugeot, Passenger Car EU | 106 | 1.6 | Gasoline | 1994 01 | 1996 04 | 76 | 103 | 1587 | 4 | NFY (TU5J2) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 106 | 1 | Gasoline | 1996 05 | - | 33 | 45 | 954 | 4 | i | CDY (TU9M) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | Partner | 1.1 | Gasoline | 1996 06 | - | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Van | Partner | ||
| Peugeot, Passenger Car EU | Partner | 1.4 | Gasoline | 1996 06 | - | 55 | 75 | 1360 | 4 | KFX (TU3JP) | Van | Partner | ||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 1997 03 | 2000 10 | 65 | 89 | 1587 | 4 | NFZ (TU5JP) | Estate | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 2000 10 | 2001 05 | 72 | 98 | 1587 | 4 | NFT (TU5JP/L4) | 306 | |||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 2000 10 | 2002 04 | 72 | 98 | 1587 | 4 | NFT (TU5JP/L4) | Convertible | 306 | ||
| Peugeot, Passenger Car EU | 106 | 1.1 | Gasoline | 1991 09 | 1996 04 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 1994 06 | 2000 10 | 65 | 89 | 1587 | 4 | NFZ (TU5JP) | SR | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.1 | Gasoline | 1993 05 | 2001 05 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1993 05 | 2001 05 | 55 | 75 | 1360 | 4 | KFX (TU3JP) | Hatchback | 306 | ||
| Peugeot, Passenger Car EU | 106 | 1.4 | Gasoline | 1996 05 | - | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | 106 | 1.1 | Gasoline | 1997 01 | - | 40 | 54 | 1124 | 4 | i | HDY (TU1M) | Hatchback | 106 | |
| Peugeot, Passenger Car EU | 206 | 1.4 | Bi-Fuel | 2006 05 | 2007 09 | 55 | 75 | 1360 | 4 | KFV(TU3JP) | Hatchback | LPG | 206 | |
| Peugeot, Passenger Car EU | 106 | 1 | Gasoline | 1991 09 | 2001 03 | 33 | 45 | 954 | 4 | CDY (TU9M) | Van | 106 | ||
| Peugeot, Passenger Car EU | 106 | 1 | Gasoline | 1991 09 | 1996 04 | 33 | 45 | 954 | 4 | CDY (TU9M) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1994 06 | 2001 05 | 55 | 75 | 1360 | 4 | KFW (TU3JP) | SL | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1997 03 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Estate | 306 | |
| Peugeot, Passenger Car EU | 106 | 1 | Gasoline | 1991 09 | 2001 03 | 33 | 45 | 954 | 4 | TU9 | Van | 106 | ||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 2000 10 | 2002 04 | 72 | 98 | 1587 | 4 | NFT (TU5JP/L4) | Estate | 306 | ||
| Peugeot, Passenger Car EU | 106 | 1.4 | Gasoline | 1991 09 | 1996 04 | 55 | 75 | 1361 | 4 | KDX (TU3MC) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 106 | 1.4 | Gasoline | 1991 09 | 1996 04 | 69 | 94 | 1361 | 4 | KFZ (TU3J2/Z) | Hatchback | 106 | ||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1993 05 | 2001 05 | 55 | 75 | 1360 | 4 | KFW (TU3JP) | Hatchback | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 1993 05 | 2000 10 | 65 | 89 | 1587 | 4 | NFZ (TU5JP) | Hatchback | 306 | ||
| Peugeot, Passenger Car EU | 306 | 1.4 | Gasoline | 1994 06 | 2001 05 | 55 | 75 | 1360 | 4 | KFX (TU3JP) | SL | 306 | ||
| Peugeot, Passenger Car EU | Partner | 1.4 | Gasoline | 1996 06 | - | 55 | 75 | 1360 | 4 | KFW (TU3JP) | MPV | Partner | ||
| Peugeot, Passenger Car EU | 306 | 1.6 | Gasoline | 2000 10 | 2001 05 | 72 | 98 | 1587 | 4 | NFT (TU5JP/L4) | Hatchback | 306 | ||
| Citroen, Passenger Car EU | AX | 1.4 | Diesel | 1991 08 | 1997 12 | 37 | 50 | 1360 | 4 | Diesel | K9Y (TUD3Y) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | Saxo | 1.6 | Gasoline | 1996 05 | 2003 06 | 65 | 88 | 1587 | 4 | NFZ (TU5JP) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Berlingo | 1.4 | Gasoline | 1996 07 | - | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | MPV | Berlingo | |
| Citroen, Passenger Car EU | Saxo | 1.4 | Gasoline | 1996 05 | 2003 06 | 55 | 75 | 1360 | 4 | KFX (TU3JP) | Hatchback | VTS | Saxo | |
| Citroen, Passenger Car EU | Berlingo | 1.4 | Gasoline | 1996 07 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Van | Berlingo | |
| Citroen, Passenger Car EU | Berlingo | 1.4 | Gasoline | 1996 07 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | MPV | Berlingo | |
| Citroen, Passenger Car EU | Xsara | 1.6 | Gasoline | 1997 04 | 2000 09 | 65 | 88 | 1587 | 4 | i | NFZ (TU5JP) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | AX | 1.4 | Diesel | 1988 09 | 1992 06 | 38 | 52 | 1360 | 4 | Diesel | K9A (TUD3) | Hatchback | AX 14 | |
| Citroen, Passenger Car EU | ZX | 1.4 | Gasoline | 1991 03 | 1997 06 | 55 | 75 | 1360 | 4 | i | KDZ (TU3M/Z) | Hatchback | ZX | |
| Citroen, Passenger Car EU | ZX | 1.4 | Gasoline | 1993 10 | 1997 10 | 55 | 75 | 1360 | 4 | i | KDY (TU3M) | Estate | ZX | |
| Citroen, Passenger Car EU | Saxo | 1.1 | Gasoline | 1996 05 | 2003 09 | 40 | 54 | 1124 | 4 | HDZ (TU1M) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1997 10 | 2005 08 | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Estate | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1997 10 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Estate | Xsara | |
| Citroen, Passenger Car EU | ZX | 1.1 | Gasoline | 1991 03 | 1997 06 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | ZX | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1989 01 | 1989 12 | 47 | 64 | 1360 | 4 | K1H (TU3A) | Estate | BX 14 | ||
| Citroen, Passenger Car EU | Berlingo | 1.1 | Gasoline | 1996 07 | - | 44 | 60 | 1124 | 4 | i | HFX (TU1JP) | MPV | Berlingo | |
| Citroen, Passenger Car EU | Saxo | 1 | Gasoline | 1996 05 | 1998 11 | 33 | 45 | 954 | 4 | CDZ (TU9M) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Saxo | 1.4 | Gasoline | 1996 05 | 2003 06 | 55 | 75 | 1360 | 4 | KFW (TU3JP) | Hatchback | VTS | Saxo | |
| Citroen, Passenger Car EU | Xsara | 1.6 | Gasoline | 1997 10 | 2000 09 | 65 | 88 | 1587 | 4 | i | NFZ (TU5JP) | Estate | Xsara | |
| Citroen, Passenger Car EU | Saxo | 1.1 | Gasoline | 1996 05 | 2003 09 | 44 | 60 | 1124 | 4 | HDZ (TU1M) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Saxo | 1 | Gasoline | 1998 05 | 2003 06 | 37 | 50 | 954 | 4 | CDZ (TU9M) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | ZX | 1.4 | Gasoline | 1991 03 | 1997 06 | 55 | 75 | 1360 | 4 | KDZ (TU3M/Z) | Hatchback | ZX | ||
| Citroen, Passenger Car EU | Berlingo | 1.1 | Gasoline | 1996 07 | - | 44 | 60 | 1124 | 4 | i | HDZ (TU1M) | Van | Berlingo | |
| Citroen, Passenger Car EU | Berlingo | 1.4 | Gasoline | 1996 07 | - | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Van | Berlingo | |
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1997 04 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | ZX | 1.4 | Gasoline | 1991 03 | 1997 06 | 55 | 75 | 1360 | 4 | i | KDX (TU3M/Z) | Hatchback | ZX | |
| Citroen, Passenger Car EU | Saxo | 1.1 | Gasoline | 2000 03 | 2003 09 | 44 | 60 | 1124 | 4 | HFX (TU1JP) | Hatchback | Saxo | ||
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1998 03 | - | 55 | 75 | 1360 | 4 | i | KFW (TU3JP) | Coupe | Xsara | |
| Citroen, Passenger Car EU | ZX | 1.1 | Gasoline | 1991 03 | 1993 08 | 40 | 54 | 1124 | 4 | H1A | Hatchback | ZX | ||
| Citroen, Passenger Car EU | ZX | 1.4 | Gasoline | 1991 03 | 1997 06 | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Hatchback | ZX | |
| Citroen, Passenger Car EU | ZX | 1.4 | Gasoline | 1993 10 | 1997 10 | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Estate | ZX | |
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1997 04 | 2005 03 | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Hatchback | Xsara | |
| Citroen, Passenger Car EU | Xsara | 1.4 | Gasoline | 1998 03 | 2005 03 | 55 | 75 | 1360 | 4 | i | KFX (TU3JP) | Coupe | Xsara | |
| Citroen, Passenger cars AO | ZX | 1.4 | Diesel | 1994 07 | 1997 10 | 37 | 50 | 1360 | 4 | Diesel | K9Y (TUD3Y) | Hatchback | ZX |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
