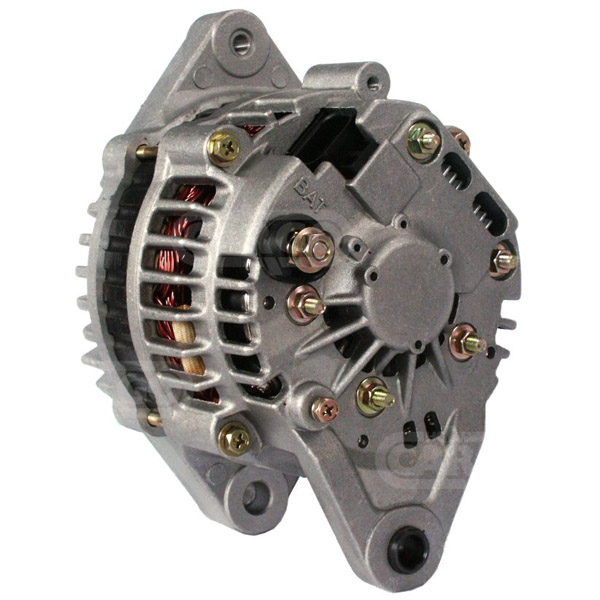

110631 - Alternator (110631)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 10.45, Belt. adj. bracket hole M8,
Width/Holder Arm: 24.85, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 82.20,
Pulley Dia.: 59.30,
Pulley Dist.: 38.00,
Grooves/Pulley: 4,
Radius: 82.95,
Radius: 84.60,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 10.45
G Belt. adj. bracket hole M8
B Width/holder arm 24.85
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 82.20
H Pulley dia. 59.30
A Pulley dist. 38.00
i Grooves/pulley 4
j Radius 82.95
j Radius 84.60
k B+ position M6
n Rotation CR
o Regulator plug PL07

Further information (Alternator)
Blower IF
Pulley SP

Replacing
111263 CARGO
23100-0e700 NISSAN
23100-0e705 NISSAN
23100-0e706 NISSAN
23100-0e711 NISSAN
23100-0e712 NISSAN
23100-0e715 NISSAN
23100-0e716 NISSAN
23100-0e717 NISSAN
23100-50y05 NISSAN

UNISTART Price: £108.51

Sorry, this item is out of stock.

The 110631 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Nissan, Passenger Car EU Sunny 1.4 Gasoline 1990 10 1995 05 55 75 1392 4 i GA14DS Sunny
Nissan, Passenger Car EU Primera 1.6 Gasoline 1990 07 1998 03 66 90 1597 4 i GA16DS Estate Primera
Nissan, Passenger Car EU 100 1.6 Gasoline 1990 03 1994 10 66 90 1597 4 GA16DS Coupe 100NX
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1990 11 1995 05 66 90 1597 4 16V GA16DS Estate Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1990 10 1995 05 66 90 1597 4 i 16V GA16DS 4WD Sunny
Nissan, Passenger Car EU 100 1.6 Gasoline 1993 09 1994 10 75 102 1597 4 GA16DE Coupe 100NX
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1992 10 1995 05 75 102 1597 4 i 16V GA16DE Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1992 10 1995 05 75 102 1597 4 i 16V GA16DE Hatchback Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1992 10 1995 05 75 102 1597 4 i 16V GA16DE Hatchback 4WD Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1990 10 1995 05 66 90 1597 4 i GA16DE Hatchback Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1992 10 2000 03 75 102 1597 4 i 16V GA16DE Estate Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1990 10 1995 05 66 90 1597 4 i GA16DS Hatchback Sunny
Nissan, Passenger Car EU Sunny 1.4 Gasoline 1990 10 1995 06 64 87 1392 4 i 16V GA14DE Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1990 10 1995 05 66 90 1597 4 i GA16DS Sunny
Nissan, Passenger Car EU Sunny 1.4 Gasoline 1990 10 1995 05 55 75 1392 4 i GA14DS Hatchback Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1991 06 2000 03 66 90 1597 4 i GA16DS Estate Sunny
Nissan, Passenger Car EU Sunny 1.6 Gasoline 1992 10 2000 03 66 90 1597 4 i 16V GA16DE Van Sunny
Nissan, Passenger Car EU Sunny 1.4 Gasoline 1990 10 1995 06 64 87 1392 4 i 16V GA14DE Hatchback Sunny
Nissan, Passenger Car EU Primera 1.6 Gasoline 1994 03 1998 03 75 102 1597 4 i GA16DE Estate Primera
Nissan, Passenger Car EU Sunny 1.4 Gasoline 1990 10 1995 05 64 87 1392 4 16V GA14DE Hatchback Sunny
Nissan, Passenger cars US Sentra 1.6 Gasoline 1990 01 1990 01 0 0 1597 L4 GA16I 4WD Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1991 01 1994 01 0 0 1597 L4 GA16DE Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1991 01 1993 01 0 0 1597 L4 GA16DE Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1993 01 1994 01 0 0 1597 L4 GA16DE E Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1993 01 1994 01 0 0 1597 L4 GA16DE SE Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1994 01 1994 01 0 0 1597 L4 GA16DE LE Sentra
Nissan, Passenger cars US NX 1.6 Gasoline 1991 01 1993 01 0 0 1597 L4 GA16DE NX
Nissan, Passenger cars US Sentra 1.6 Gasoline 1989 01 1990 01 0 0 1597 L4 GA16I Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1993 01 1993 01 0 0 1597 L4 GA16DE Sentra
Nissan, Passenger cars US Sentra 1.6 Gasoline 1993 01 1994 01 0 0 1597 L4 GA16DE GXE Sentra
Nissan, Passenger cars US Pulsar 1.6 Gasoline 1990 01 1990 01 0 0 1597 L4 GA16I Pulsar NX
Nissan, Passenger cars US Pulsar 1.6 Gasoline 1989 01 1990 01 0 0 1597 L4 GA16I XE Pulsar NX
Nissan, Passenger cars US Sentra 1.6 Gasoline 1993 01 1994 01 0 0 1597 L4 GA16DE XE Sentra
