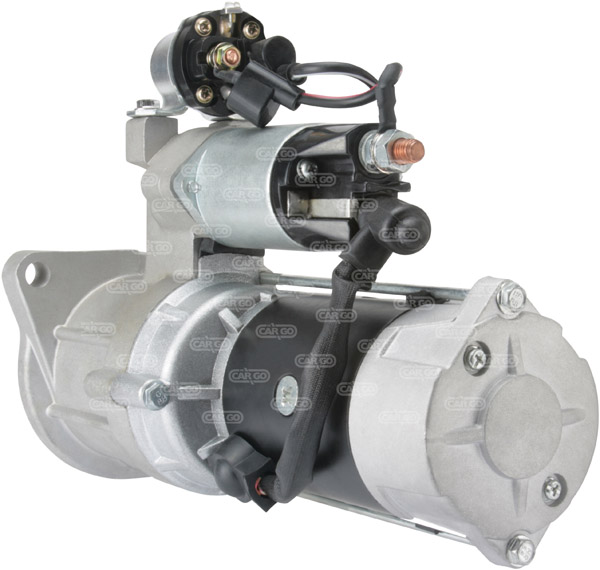

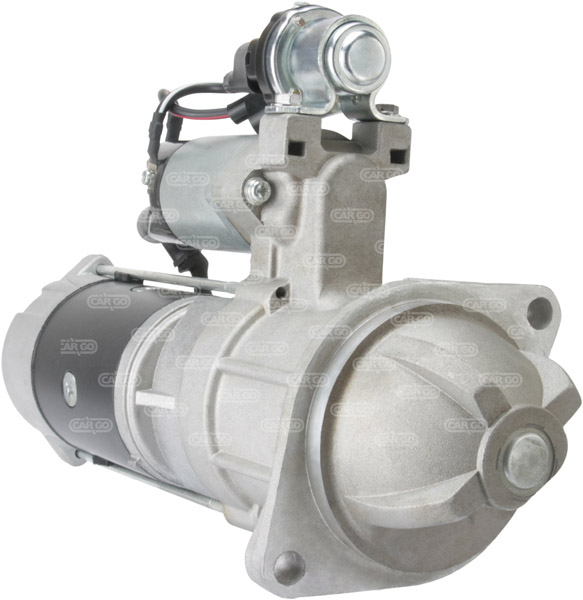

110656 - Starter (110656)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 24, kW 5.5, Mount. flange 104.90, Drive dist. 13.50, Dist./back 300.00, Dist./front 67.00, No. of teeth 11, B+ M10, Gear type GR, Dist. 150.00,
Rotation: CR, No./mount. holes 2 (0),
Drive Type: Steel, Remarks w/ safety switch.,
Total Length: 368.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 24 | |||
| kW | 5.5 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 104.90 | |||
| B | Drive dist. 13.50 | |||
| F | Dist./back 300.00 | |||
| G | Dist./front 67.00 | |||
| H | No. of teeth 11 | |||
| I | B+ M10 | |||
| N | Gear type GR | |||
| O | Dist. 150.00 | |||
| P | Rotation CR | |||
| R | Total length 368.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (0) | |||
| Drive | type Steel | |||
| Remarks | w/ safety switch. | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0-23000-1290 | NIKKO | |||
| 0-23000-1292 | NIKKO | |||
| 0-23000-1410 | NIKKO | |||
| 0-23000-1550 | NIKKO | |||
| 0-23000-1750 | NIKKO | |||
| 0-23000-1752 | NIKKO | |||
| 0-23000-2560 | NIKKO | |||
| 0-23000-2561 | NIKKO | |||
| 600-813-3320 | KOMATSU | |||
| 600-813-4421 | KOMATSU | |||
UNISTART Price: £1303.01
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 4D105 | D41 | ||||||
| Komatsu, Industrials | D | 1986 01 | - | 0 | 0 | 0 | 6D105 | Various Models | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 6D95 | D41 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 4D105 | D31 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 6D95 | D31 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 4D105 | D41 | ||||||
| Komatsu, Industrials | D | 1986 01 | - | 0 | 0 | 0 | 6D105 | Various Models | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 6D95 | D41 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 4D105 | D31 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 6D95 | D31 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 4D105 | D41 | ||||||
| Komatsu, Industrials | D | 1986 01 | - | 0 | 0 | 0 | 6D105 | Various Models | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 6D95 | D41 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 4D105 | D31 | ||||||
| Komatsu, Industrials | D | 1988 01 | - | 0 | 0 | 0 | 6D95 | D31 |
