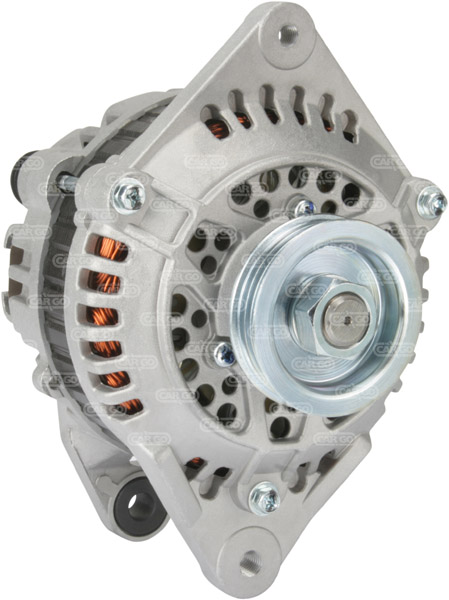

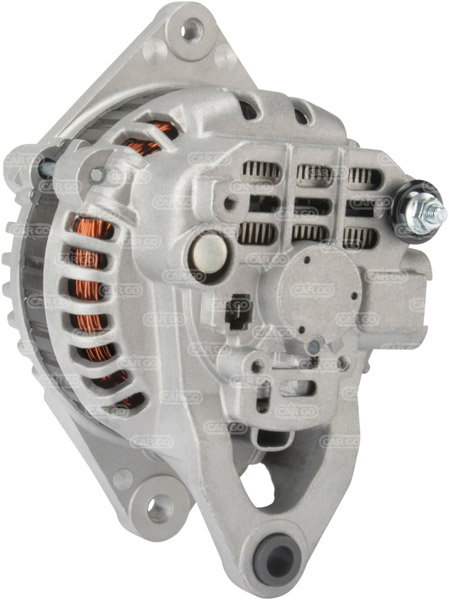

110664 - Alternator (110664)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70, Terminal W,
Bracket Hole: M10, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.10, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 66.30,
Pulley Dia.: 58.08,
Pulley Dist.: 44.50,
Grooves/Pulley: 3,
Radius: 90.00,
Radius: >85,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP,
Total Length: 161.50

Electrical specifications (Alternator)
Voltage 14
Amp 70
Terminal W

Physical specifications (Alternator)
D Bracket hole M10
G Belt. adj. bracket hole M8
B Width/holder arm 13.10
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 66.30
H Pulley dia. 58.08
A Pulley dist. 44.50
i Grooves/pulley 3
j Radius 90.00
j Radius >85
k B+ position M6
n Rotation CR
o Regulator plug PL07
R Total length 161.50

Further information (Alternator)
Blower IF
Pulley SP

Replacing
111340 CARGO
A002T05892 MITSUBISHI
A002T05892A MITSUBISHI
A002T05892B MITSUBISHI
A002T05892ZC MITSUBISHI
A002T05893 MITSUBISHI
A002T05893ZC MITSUBISHI
A002T06092 MITSUBISHI
A002T19991 MITSUBISHI
A002T19991A MITSUBISHI

UNISTART Price: £91.03

Sorry, this item is out of stock.

The 110664 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mazda, Passenger Car EU 626 2.2 Gasoline 1988 06 1992 04 85 115 2184 4 12V F2 Hatchback 626
Mazda, Passenger Car EU 626 2.2 Gasoline 1989 03 1996 11 85 115 2184 4 12V F2 Estate 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 11 1992 05 103 140 1998 4 16V FE 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 11 1992 05 79 107 1984 4 12V FE Hatchback 626
Mazda, Passenger Car EU 626 1.6 Gasoline 1987 06 1992 05 60 82 1597 4 F68 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 11 1990 10 103 140 1998 4 16V FE Hatchback 626
Mazda, Passenger Car EU 626 2 Gasoline 1988 10 1997 09 66 90 1998 4 8V FE Estate 626
Mazda, Passenger Car EU 626 1.8 Gasoline 1987 09 1991 08 65 88 1789 4 F8 Coupe 626
Mazda, Passenger Car EU 626 1.8 Gasoline 1988 01 1992 03 65 88 1789 4 F8 Estate 626
Mazda, Passenger Car EU 626 2.2 Gasoline 1987 11 1990 07 85 115 2184 4 12V F2 Hatchback 4WD 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 09 1992 05 79 107 1998 4 12V FE 626
Mazda, Passenger Car EU 626 1.8 Gasoline 1987 11 1992 05 65 88 1789 4 F8 Hatchback 626
Mazda, Passenger Car EU 626 1.6 Gasoline 1987 06 1992 05 60 82 1597 4 F68 Hatchback 626
Mazda, Passenger Car EU 626 1.6 Gasoline 1987 06 1992 05 60 82 1597 4 Coupe 626
Mazda, Passenger Car EU 626 2.2 Gasoline 1987 11 1991 07 85 115 2184 4 12V F2 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 09 1990 10 66 90 1998 4 8V FE Hatchback 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 09 1990 10 66 90 1998 4 8V FE Coupe 626
Mazda, Passenger Car EU 626 2.2 Gasoline 1988 04 1991 12 85 115 2184 4 12V F2 Coupe 626
Mazda, Passenger Car EU 626 1.8 Gasoline 1987 11 1992 05 65 88 1789 4 F8 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 09 1988 12 79 107 1984 4 FE Coupe 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 06 1989 08 109 148 1998 4 16V FE Hatchback 626
Mazda, Passenger Car EU 626 2 Gasoline 1988 01 1992 03 103 140 1998 4 16V FE Estate 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 09 1990 01 81 110 1998 4 12V FE Estate 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 09 1990 10 66 90 1998 4 FE 626
Mazda, Passenger Car EU 626 2 Gasoline 1987 12 1990 10 103 140 1998 4 16V FE Coupe 626
Mazda, Passenger cars US 626 2.2 Gasoline 1990 01 1992 01 0 0 2184 L4 626
Mazda, Passenger cars US 626 2.2 Gasoline 1990 01 1992 01 0 0 2184 L4 DX 626
Mazda, Passenger cars US 626 2.2 Gasoline 1991 01 - 0 0 2184 L4 LE 626
Mazda, Passenger cars US MX 2.2 Gasoline 1988 01 1992 01 0 0 2184 L4 Turbo GT MX-6
Mazda, Passenger cars US MX 2.2 Gasoline 1992 01 1992 01 0 0 2184 L4 Turbo MX-6
Mazda, Passenger cars US 626 2.2 Gasoline 1988 01 1990 01 0 0 2184 L4 Turbo 626
Mazda, Passenger cars US 626 2.2 Gasoline 1990 01 1992 01 0 0 2184 L4 LX 626
Mazda, Passenger cars US MX 2.2 Gasoline 1988 01 1991 01 0 0 2184 L4 MX-6
Mazda, Passenger cars US MX 2.2 Gasoline 1991 01 1992 01 0 0 2184 L4 LX MX-6
Mazda, Passenger cars US 626 2.2 Gasoline 1988 01 1989 01 0 0 2184 L4 626
Mazda, Passenger cars US 626 2.2 Gasoline 1991 01 1991 01 0 0 2184 L4 Turbo 626
Mazda, Passenger cars US MX 2.2 Gasoline 1992 01 1992 01 0 0 2184 L4 MX-6
Mazda, Passenger cars US 626 2.2 Gasoline 1990 01 1991 01 0 0 2184 L4 Turbo GT 626
Mazda, Passenger cars US MX 2.2 Gasoline 1991 01 1992 01 0 0 2184 L4 DX MX-6
Ford, Passenger cars US Probe 2.2 Gasoline 1989 01 1992 01 0 0 0 L4 GL Probe
Ford, Passenger cars US Probe 2.2 Gasoline 1989 01 1989 01 0 0 0 L4 LX Probe
Ford, Passenger cars US Probe 2.2 Gasoline 1989 01 1992 01 0 0 0 L4 Turbo GT Probe
