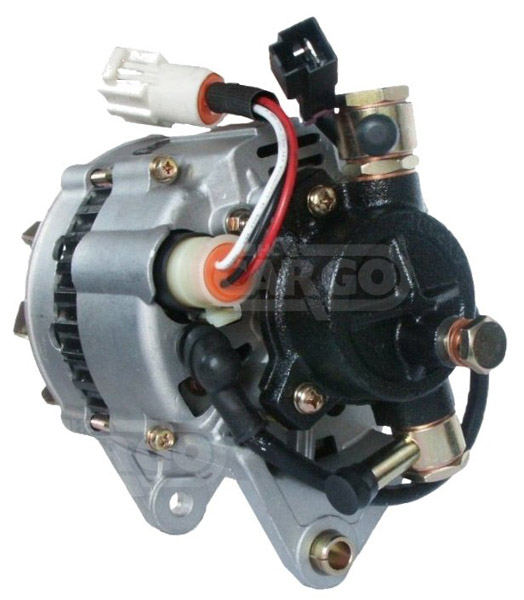

110697 - Alternator (110697)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 50,
Bracket Hole: 10.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.25, Belt. adj. brackethole pos. 55,
Mount. Bracket Dist.: 99.40,
Pulley Dia.: 83.50,
Pulley Dist.: 48.85,
Grooves/Pulley: 1,
Radius: 90.00,
Radius: 84.40,
B+ Position: 9.30,
Rotation: CR,
Regulator Plug: or plug PL01,
Blower: EF, Pulley P,
Total Length: 270.00

Electrical specifications (Alternator)
Voltage 14
Amp 50

Physical specifications (Alternator)
D Bracket hole 10.20
G Belt. adj. bracket hole M8
B Width/holder arm 13.25
E Belt. adj. brackethole pos. 55
C Mount. bracket dist. 99.40
H Pulley dia. 83.50
A Pulley dist. 48.85
i Grooves/pulley 1
j Radius 90.00
j Radius 84.40
k B+ position 9.30
n Rotation CR
o Regulator plug PL01
R Total length 270.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
5812003161 ISUZU
5812003162 ISUZU
5812003163 ISUZU
8944017932 ISUZU
8944050440 ISUZU
8944050442 ISUZU
94405044 OPEL
lr150-136 HITACHI
lr150-136b HITACHI
LR150-136C HITACHI

UNISTART Price: £104.85

Sorry, this item is out of stock.

The 110697 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 03 1991 12 53 72 2238 4 TD C223T Convertible Trooper
Isuzu, Passenger Car EU Campo 2.5 Diesel 1983 01 1990 12 55 75 2499 4 Diesel 4JA1 Pick Up 4WD Campo
Isuzu, Passenger Car EU Campo 2.2 Diesel 1986 04 1990 12 39 53 2238 4 Diesel C223 Pick Up Campo
Isuzu, Passenger Car EU Campo 2.2 Diesel 1983 01 1991 12 45 61 2238 4 Diesel C223 Pick Up Campo
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 05 1989 12 39 53 2238 4 Diesel C223 4WD Trooper
Isuzu, Passenger Car EU Campo 2.5 Diesel 1983 01 1990 12 55 75 2499 4 Diesel 4JA1 Pick Up Campo
Isuzu, Passenger Car EU Campo 2.2 Diesel 1983 01 1990 12 39 53 2238 4 Diesel C223 Pick Up 4WD Campo
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 05 1989 07 39 53 2238 4 C223 Convertible 4WD Trooper
Isuzu, Passenger cars US Pick Up 2.2 Diesel 1986 01 1987 01 0 0 2238 L4 Turbo Pick Up Pick Up
Isuzu, Passenger cars US Pick Up 2.2 Diesel 1987 01 1987 01 0 0 2238 L4 Pick Up Normal cab Pick Up
Isuzu, Passenger cars US Pick Up 2.2 Diesel 1981 01 1987 01 0 0 2238 L4 Pick Up Pick Up
Isuzu, Passenger cars US Trooper 2.2 Diesel 1984 01 - 0 0 2238 L4 Trooper
Isuzu, Passenger cars US Trooper 2.2 Diesel 1986 01 1987 01 0 0 2238 L4 Turbo Trooper
Isuzu, Passenger Car EU Campo 2.2 Diesel 1986 04 1990 12 39 53 2238 4 Diesel C223 Pick Up Campo
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 05 1989 07 39 53 2238 4 C223 Convertible 4WD Trooper
Chevrolet, Passenger cars US Luv 2.2 Diesel 1981 01 - 0 0 0 L4 Diesel Pick Up Luv
