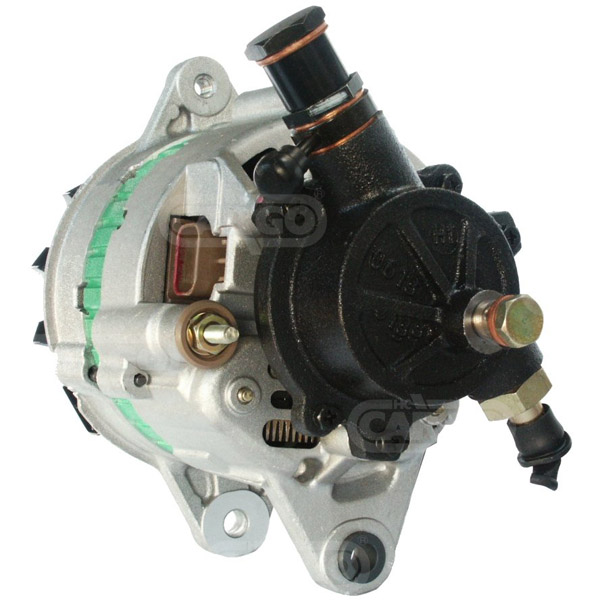

110701 - Alternator (110701)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 50,
Bracket Hole: 10.40, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.30, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 80.50,
Pulley Dia.: 86.00,
Pulley Dist.: 41.80,
Grooves/Pulley: 2,
Radius: 88.50,
Radius: 84.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: EF, Pulley DP,
Total Length: 258.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 50 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.40 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 13.30 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 80.50 | |||
| H | Pulley dia. 86.00 | |||
| A | Pulley dist. 41.80 | |||
| i | Grooves/pulley 2 | |||
| j | Radius 88.50 | |||
| j | Radius 84.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL07 | |||
| R | Total length 258.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | DP | |||
Replacing | ||||
| 23100-02n12 | NISSAN | |||
| 23100-02n16 | NISSAN | |||
| 23100-02n20 | NISSAN | |||
| 23100-11t10 | NISSAN | |||
| 23100-11t13 | NISSAN | |||
| lr150-430 | HITACHI | |||
| lr150-430c | HITACHI | |||
| lr150-430s | HITACHI | |||
| lr150-430t | HITACHI | |||
| lr150-435 | HITACHI | |||
UNISTART Price: £172.72
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nissan, Passenger Car EU | Urvan | 2.5 | Diesel | 1989 05 | 1996 10 | 59 | 80 | 2494 | 4 | Diesel | TD25 | Bus | Urvan | |
| Nissan, Passenger Car EU | Cabstar | 2.5 | Diesel | 1992 01 | 2000 12 | 55 | 75 | 2494 | 4 | Diesel | TD25 | Platform / Chassis | Cabstar | |
| Nissan, Passenger Car EU | Urvan | 2.5 | Diesel | 1988 12 | 1997 05 | 59 | 80 | 2494 | 4 | Diesel | TD25 | Van | Urvan | |
| Nissan, Passenger Car EU | King Van | 2.5 | Diesel | 1988 12 | 1994 07 | 0 | 0 | 0 | 4 | TD | TD25 | King Van | ||
| Nissan, Passenger Car EU | Urvan | 2.3 | Diesel | 1988 01 | 1997 05 | 51 | 69 | 2289 | 4 | Diesel | TD23 | Van | Urvan | |
| Nissan, Passenger Car EU | King Van | 2.3 | Diesel | 1986 11 | 1989 03 | 0 | 0 | 0 | 4 | Diesel | TD23 | King Van | ||
| Nissan, Trucks EU | Cabstar | 2.3 | Diesel | 1981 12 | 1992 06 | 50 | 68 | 2289 | 4 | Diesel | TD23 | Platform / Chassis | Cabstar | |
| Nissan, Trucks EU | Cabstar | 2.7 | Diesel | 1983 02 | 1990 12 | 66 | 90 | 2663 | 4 | Diesel | TD27 | Platform / Chassis | Cabstar | |
| Nissan, Trucks EU | Cabstar | 2.5 | Diesel | 1982 10 | 1992 06 | 59 | 80 | 2494 | 4 | TD25 | Platform / Chassis | Cabstar | ||
| Nissan, Passenger Car EU | Cabstar | 2.5 | Diesel | 1992 01 | 2000 12 | 55 | 75 | 2494 | 4 | Diesel | TD25 | Platform / Chassis | Cabstar | |
| Nissan, Passenger Car EU | King Van | 2.5 | Diesel | 1988 12 | 1994 07 | 0 | 0 | 0 | 4 | TD | TD25 | King Van | ||
| Nissan, Passenger Car EU | King Van | 2.3 | Diesel | 1986 11 | 1989 03 | 0 | 0 | 0 | 4 | Diesel | TD23 | King Van |
