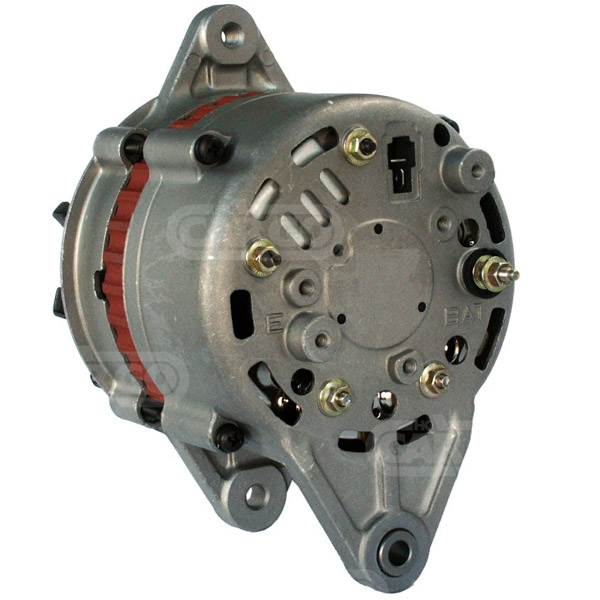

110703 - Alternator (110703)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 55,
Bracket Hole: 8.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 80.25,
Pulley Dia.: 74.60,
Pulley Dist.: 42.66,
Grooves/Pulley: 1,
Radius: 99.00,
Radius: 94.00,
B+ Position: M5,
Rotation: CR,
Regulator Plug: or plug PL08,
Blower: EF, Pulley P,
Total Length: 172.00

Electrical specifications (Alternator)
Voltage 14
Amp 55

Physical specifications (Alternator)
D Bracket hole 8.00
G Belt. adj. bracket hole M8
B Width/holder arm 13.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 80.25
H Pulley dia. 74.60
A Pulley dist. 42.66
i Grooves/pulley 1
j Radius 99.00
j Radius 94.00
k B+ position M5
n Rotation CR
o Regulator plug PL08
R Total length 172.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
10463734 REMY (DELCO)
23700-aa030 SUBARU
23700-aa040 SUBARU
42990-7040 SUBARU
42990-7050 SUBARU
42990-7100 SUBARU
42990-7110 SUBARU
42990-7600 SUBARU
lr150-111 HITACHI
lr150-151 HITACHI

UNISTART Price: £104.81

Sorry, this item is out of stock.

The 110703 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Subaru, Passenger Car EU Leone 1.8 Gasoline 1980 09 1984 10 60 82 1781 4 EA81 Estate 1800 Super 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1989 03 1990 12 96 131 1781 4 Turbo EA82 Estate 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1984 11 1990 12 100 136 1781 4 Turbo EA82 Estate 1800 Super 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1980 09 1984 10 59 80 1781 4 EA81 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1980 09 1984 10 59 80 1781 4 EA81 Hatchback 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.6 Gasoline 1984 11 1991 09 55 74 1595 4 EA71 1600 Leone
Subaru, Passenger Car EU Leone 1.6 Gasoline 1990 01 1994 12 55 75 1595 4 EA71 Estate 4x4 Leone
Subaru, Passenger Car EU Leone 1.6 Gasoline 1990 01 1994 12 55 75 1595 4 EA71 Estate Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1980 09 1984 10 60 82 1781 4 EA81 Hatchback 1800 Turismo 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1988 01 1990 12 88 120 1782 4 EA82 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1988 01 1990 12 88 120 1782 4 EA82 Estate 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1988 01 1990 12 72 98 1782 4 EA82 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1980 09 1984 10 60 82 1781 4 EA81 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.3 Gasoline 1984 11 1991 09 48 65 1299 4 EA65 1300 Leone
Subaru, Passenger Car EU Leone 1.6 Gasoline 1990 01 1994 12 55 74 1595 4 EA71 4x4 Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1980 09 1984 10 59 80 1769 4 EA81 Estate 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1984 11 1990 12 66 90 1781 4 EA82 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.8 Gasoline 1984 11 1990 12 66 90 1781 4 EA82 Estate 1800 4WD Leone
Subaru, Passenger Car EU Leone 1.6 Gasoline 1990 01 1994 12 54 73 1595 4 EA71 4x4 Leone
Nissan, Passenger Car EU Laurel 2.4 Gasoline 1981 01 1984 01 83 113 2393 6 L24 Laurel
Nissan, Passenger Car EU Laurel 2.4 Gasoline 1983 09 1985 12 88 120 2393 6 L24 Laurel
