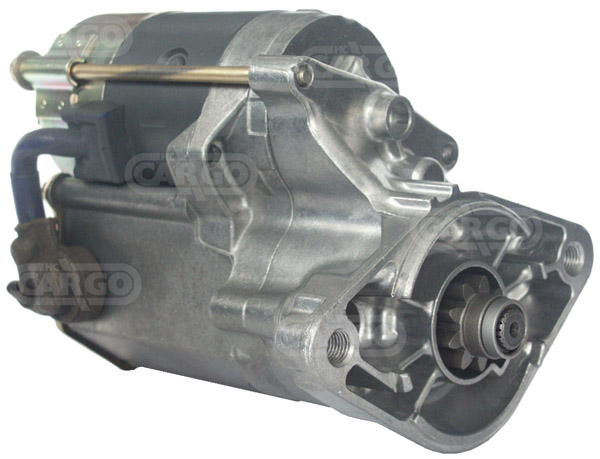

110709 - Starter (110709)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 1.0, Mount. flange 74.00, Drive dist. 5.30, Dist./back 176.85, Dist./front 18.60, No. of teeth 9, B+ M8, Gear type GR, Dist. 114.25,
Rotation: CR, No./mount. holes 2 (2),
Drive Type: Steel,
Total Length: 197.25, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 1.0 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 74.00 | |||
| B | Drive dist. 5.30 | |||
| F | Dist./back 176.85 | |||
| G | Dist./front 18.60 | |||
| H | No. of teeth 9 | |||
| I | B+ M8 | |||
| N | Gear type GR | |||
| O | Dist. 114.25 | |||
| P | Rotation CR | |||
| R | Total length 197.25 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (2) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 128000-1440 | DENSO | |||
| 128000-1441 | DENSO | |||
| 28100-10040 | TOYOTA | |||
UNISTART Price: £71.43
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Corolla | 1.4 | Gasoline | 1992 07 | 1995 09 | 65 | 88 | 1332 | 4 | 16V | 4E-FE | XLi | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1987 08 | 1992 04 | 55 | 75 | 1296 | 4 | i | 2E | Hatchback | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1987 12 | 1992 06 | 55 | 75 | 1296 | 4 | 2E | Estate | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 08 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-L | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.4 | Gasoline | 1992 07 | 1995 09 | 65 | 88 | 1332 | 4 | 16V | 4E-FE | Hatchback | GLi | Corolla |
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1992 07 | 1997 04 | 65 | 88 | 1332 | 4 | 4E-FE | Hatchback | XLi | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1984 10 | 1987 08 | 55 | 75 | 1295 | 4 | 2E-LC | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1987 08 | 1989 12 | 55 | 75 | 1296 | 4 | 2E | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Starlet | 1.3 | Gasoline | 1989 12 | 1996 03 | 55 | 75 | 1296 | 4 | 12V | 2E-E | Hatchback | Starlet | |
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1985 01 | 1987 08 | 55 | 75 | 1296 | 4 | 2E-LC | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1987 08 | 1992 12 | 55 | 75 | 1296 | 4 | i | 2E | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1992 07 | 1995 09 | 65 | 88 | 1332 | 4 | 16V | 4E-FE | Estate | XLi | Corolla |
| Toyota, Passenger Car EU | Corolla | 1.3 | Gasoline | 1989 06 | 1992 06 | 55 | 75 | 1296 | 4 | i | 2E-E | Estate | Corolla | |
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1990 01 | 1994 01 | 0 | 0 | 1456 | L4 | 3EE | DLX | Tercel | ||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1991 01 | 1994 01 | 0 | 0 | 1456 | L4 | 3EE | Tercel | |||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1987 01 | 1988 01 | 0 | 0 | 1456 | L4 | 3E | DLX | Tercel | ||
| Toyota, Passenger cars US | Paseo | 1.5 | Gasoline | 1992 01 | 1995 01 | 0 | 0 | 1497 | L4 | 5E-FE | Paseo | |||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1988 01 | 1988 01 | 0 | 0 | 1456 | L4 | 3E | EZ | Tercel | ||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1990 01 | 1990 01 | 0 | 0 | 1456 | L4 | 3EE | EZ | Tercel | ||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1990 01 | 1990 01 | 0 | 0 | 1456 | L4 | S | Tercel | |||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1991 01 | 1993 01 | 0 | 0 | 1456 | L4 | 3EE | LE | Tercel | ||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1987 01 | 1990 01 | 0 | 0 | 1456 | L4 | 3E | Tercel | |||
| Toyota, Passenger cars US | Tercel | 1.5 | Gasoline | 1991 01 | 1994 01 | 0 | 0 | 1456 | L4 | S | Tercel |
