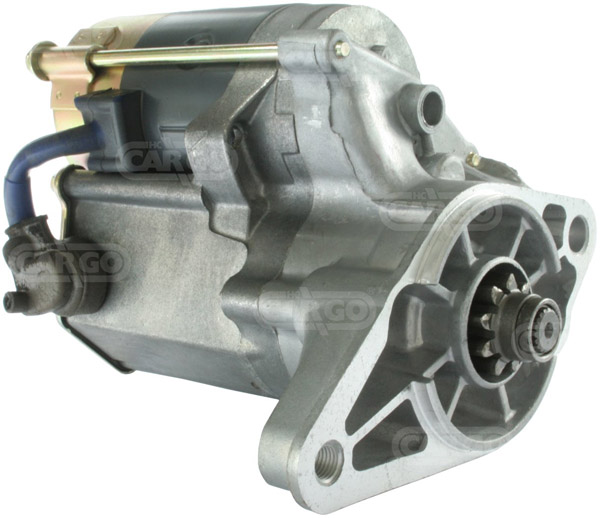

110713 - Starter (110713)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.0, Mount. flange 73.90, Drive dist. 8.00, Dist./back 163.00, Dist./front 20.50, No. of teeth 9, B+ M8, Gear type GR, Dist. 131.50,
Rotation: CR, No./mount. holes 2 (1),
Drive Type: Steel,
Total Length: 199.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.0

Physical specifications (Starter)
A Mount. flange 73.90
B Drive dist. 8.00
F Dist./back 163.00
G Dist./front 20.50
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 131.50
P Rotation CR
R Total length 199.00

Further information (Starter)
No./mount. holes 2 (1)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
128000-4420 DENSO
128000-4421 DENSO
128000-5780 DENSO
128000-5781 DENSO
128000-8350 DENSO
128000-8360 DENSO
128000-8500 DENSO
228000-0311 DENSO
228000-1100 DENSO
228000-1102 DENSO

UNISTART Price: £86.40

Sorry, this item is out of stock.

The 110713 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1992 03 75 102 1587 4 4A-FE Hatchback Carina
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1992 03 72 98 1587 4 4A-FE Estate Carina
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1992 07 1997 04 84 114 1587 4 Si 4A-FE Estate Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1997 04 2000 02 81 110 1587 4 4A-FE Estate Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1997 04 2000 02 79 107 1587 4 4A-FE Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1987 10 1990 08 77 105 1587 4 i 4A-FE 4WD Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1988 02 1992 05 66 90 1587 4 4A-F Estate Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1992 07 1997 04 84 114 1587 4 4A-FE Hatchback GLi Corolla
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1992 03 72 98 1587 4 4A-FE Hatchback Carina
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1992 03 75 102 1587 4 4A-FE Estate Carina
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1997 04 2000 02 79 107 1587 4 4A-FE Estate Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1992 07 1997 04 84 114 1587 4 Si 4A-FE Hatchback Corolla
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1989 11 66 90 1587 4 4A-F Hatchback Carina
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1992 03 75 102 1587 4 4A-FE Carina
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1990 08 66 90 1587 4 4A-F Carina
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1992 03 72 98 1587 4 4A-FE Carina
Toyota, Passenger Car EU Celica 1.6 Gasoline 1989 10 1993 11 77 105 1587 4 4A-FE Coupe Celica
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1987 08 1989 12 66 90 1587 4 4A-F Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1989 08 1992 04 77 105 1587 4 i 4A-FE Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.8 Gasoline 1997 04 2001 10 81 110 1762 4 7A-FE Estate 4WD Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1987 08 1992 04 70 95 1587 4 4A-F Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1989 08 1992 04 77 105 1587 4 4A-FE Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1987 08 1992 04 66 90 1587 4 4A-F Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1988 08 1992 06 77 105 1587 4 4A-FE Estate Corolla
Toyota, Passenger Car EU Carina 1.6 Gasoline 1987 12 1989 12 66 90 1587 4 4A-F Estate Carina
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1995 09 1997 04 84 114 1587 4 Si 4A-FE Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1989 11 1992 06 77 105 1587 4 4A-FE Estate XLi Corolla
Toyota, Passenger Car EU Corolla 1.6 Gasoline 1997 04 2000 02 81 110 1587 4 4A-FE Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1990 01 1992 01 0 0 1587 L4 4A-FE LE Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1988 01 1989 01 0 0 1587 L4 4A-F LE Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1989 01 1989 01 0 0 1587 L4 Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1990 01 1992 01 0 0 1587 L4 4A-FE Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1992 01 1992 01 0 0 1587 L4 LSX Corolla
Toyota, Passenger cars US Celica 1.6 Gasoline 1990 01 1993 01 0 0 1587 L4 4A-FE ST Celica
Toyota, Passenger cars US Corolla 1.6 Gasoline 1988 01 1989 01 0 0 1587 L4 4A-F SR5 Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1990 01 1992 01 0 0 1587 L4 4A-FE DLX Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1990 01 1991 01 0 0 1587 L4 4A-FE SR5 Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1992 01 1992 01 0 0 1587 L4 SR5 Corolla
Toyota, Passenger cars US Corolla 1.8 Gasoline 1993 01 1994 01 0 0 1762 L4 7A-FE LE Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1988 01 1989 01 0 0 1587 L4 4A-F DLX Corolla
Toyota, Passenger cars US Corolla 1.6 Gasoline 1993 01 1994 01 0 0 1587 L4 4A-FE Corolla
Toyota, Passenger cars US Corolla 1.8 Gasoline 1993 01 1993 01 0 0 1762 L4 Corolla
Toyota, Passenger cars US Corolla 1.8 Gasoline 1993 01 1993 01 0 0 1762 L4 All Trac Corolla
Toyota, Passenger cars US Corolla 1.8 Gasoline 1993 01 1994 01 0 0 1762 L4 7A-FE DX Corolla
GEO, Passenger cars US Prizm 1.6 Gasoline 1993 01 1995 01 0 0 1588 L4 LSI Prizm
GEO, Passenger cars US Prizm 1.8 Gasoline 1993 01 1995 01 0 0 1788 L4 LSI Prizm
Toyota, Passenger cars AO Corolla 1.5 Gasoline 1991 06 1997 08 105 143 1498 4 5A-FE Coupe Levin S Corolla
