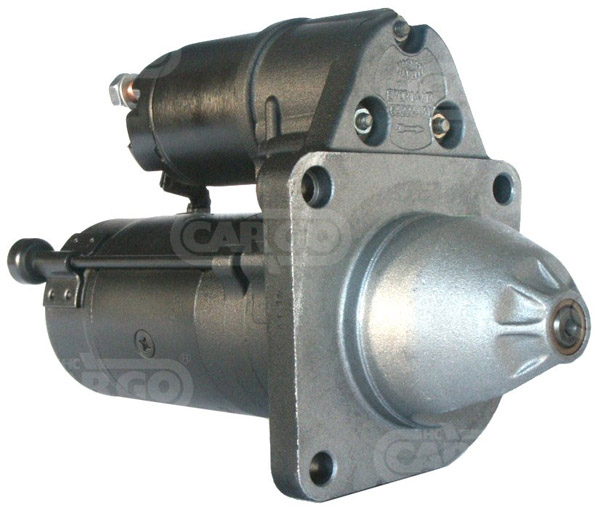

110854 - Starter (110854)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.4, Mount. flange 66.25, Drive dist. 23.00, Dist./back 182.50, Dist./front 59.00, No. of teeth 11, B+ M8, Gear type GR, Dist. 115.00, Dist. 2 81.40, Dist. 3 81.40,
Rotation: CR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 243.35, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.4

Physical specifications (Starter)
A Mount. flange 66.25
B Drive dist. 23.00
F Dist./back 182.50
G Dist./front 59.00
H No. of teeth 11
I B+ M8
N Gear type GR
O Dist. 115.00
O Dist. 2 81.40
O Dist. 3 81.40
P Rotation CR
R Total length 243.35

Further information (Starter)
No./mount. holes 3 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
46406469 FIAT
46406471 FIAT
46406472 FIAT
63223431 MAGNETI MARELLI
63223436 MAGNETI MARELLI
63223530 MAGNETI MARELLI
63223531 MAGNETI MARELLI
7626281 FIAT
7716197 FIAT

UNISTART Price: £83.01

Sorry, this item is out of stock.

The 110854 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Coupe 2 Gasoline 1993 11 1996 08 102 139 1995 4 16V 836A3.000 Coupe Coupe
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1993 03 1995 04 76 103 1756 4 i.e. 835C2.000 Hatchback Tipo
Fiat, Passenger Car EU Tipo 2 Gasoline 1993 03 1995 04 102 139 1995 4 i.e. 16V 836A3.000 Hatchback Sport Tipo
Fiat, Passenger Car EU Tipo 2 Gasoline 1991 07 1995 04 107 146 1995 4 16V 160A8.046 Hatchback Tipo
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1990 10 1993 06 81 110 1756 4 i.e. 159A4.000 Hatchback Tipo
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1989 11 1992 06 100 136 1756 4 i.e. 16V 160A5.000 Hatchback Tipo
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1994 10 1996 08 74 101 1756 4 i.e. 836A5.000 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 66 90 1756 4 i.e. 835C4.000 Tempra
Fiat, Passenger Car EU Coupe 2 Gasoline 1993 11 1996 08 140 190 1995 4 Turbo 16V 175A1.000 Coupe Coupe
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 66 90 1756 4 i.e. 835C4.000 Estate Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1992 03 1996 08 77 105 1756 4 i.e. 159A4.046 Tempra
Fiat, Passenger Car EU Tempra 2 Gasoline 1990 10 1996 08 83 113 1995 4 i.e. 159A6.046 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1992 03 1993 12 77 105 1756 4 i.e. 159A4.046 Estate Tempra
Fiat, Passenger Car EU Tempra 2 Gasoline 1991 01 1995 03 83 113 1995 4 i.e. 159A6.046 Estate Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 76 103 1756 4 i.e. 835C2.000 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1994 10 1996 08 74 101 1756 4 i.e. 836A5.000 Estate Tempra
Fiat, Passenger Car EU Tipo 2 Gasoline 1990 06 1992 03 80 109 1995 4 i.e. 159A5.046 Hatchback Tipo
Fiat, Passenger Car EU Tipo 2 Gasoline 1990 03 1995 04 83 113 1995 4 i.e. 159A6.046 Hatchback Tipo
Fiat, Passenger Car EU Tempra 2 Gasoline 1992 03 1995 03 83 113 1995 4 i.e. 159A6.046 Estate 4x4 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1990 03 1996 08 81 110 1756 4 i.e. 159A4.000 Estate Tempra
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1994 10 1995 10 74 101 1756 4 i.e. 159A4.000 Hatchback Tipo
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 76 103 1756 4 i.e. 835C2.000 Estate Tempra
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1993 09 1995 04 66 90 1756 4 i.e. 835C4.000 Hatchback Tipo
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1990 10 1993 06 77 105 1756 4 i.e. 159A4.046 Hatchback GT Tipo
Lancia, Passenger Car EU Dedra 2 Gasoline 1989 09 1999 07 83 113 1995 4 i.e. 835A5.046 Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1994 07 1999 07 102 139 1995 4 16V 836A3.000 Estate Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1994 07 1999 07 102 139 1995 4 836A3.000 Estate 4WD Integrale Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1990 11 1994 07 124 169 1995 4 835A7.000 HF Integrale Dedra
Lancia, Passenger Car EU Delta 2 Gasoline 1993 06 1999 08 102 139 1995 4 16V 836A3.000 Hatchback Delta
Lancia, Passenger Car EU Dedra 2 Gasoline 1990 11 1994 06 130 177 1995 4 Turbo 835A8.000 Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1994 07 1999 07 102 139 1995 4 16V 836A3.000 Dedra
Lancia, Passenger Car EU Delta 1.8 Gasoline 1994 07 1999 08 66 90 1756 4 i.e. 836C4.000 Hatchback Delta
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1993 08 1999 07 66 90 1756 4 i.e. 835C5.000 LE Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1994 07 1999 07 74 101 1756 4 i.e. 836A5.000 Estate Dedra
Lancia, Passenger Car EU Delta 2 Gasoline 1996 07 1999 08 142 193 1995 4 Turbo 16V 175A4.000 Hatchback HPE Delta
Lancia, Passenger Car EU Delta 1.8 Gasoline 1994 07 1999 08 66 90 1756 4 i.e. 836A6.000 Hatchback Delta
Lancia, Passenger Car EU Dedra 2 Gasoline 1990 05 1994 07 121 165 1995 4 i.e. 835A7.000 Integrale Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1989 09 1994 06 80 109 1756 4 i.e. 835A2.000 Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1989 09 1999 07 77 105 1756 4 i.e. 835A2.046 Dedra
Lancia, Passenger Car EU Delta 1.8 Gasoline 1993 06 1999 08 76 103 1756 4 i.e. 835C2.000 Hatchback Delta
Lancia, Passenger Car EU Delta 2 Gasoline 1993 06 1999 08 137 186 1995 4 Turbo 16V 836A2.000 Hatchback Delta
Lancia, Passenger Car EU Delta 1.8 Gasoline 1994 07 1999 08 66 90 1756 4 i.e. 835C4.000 Hatchback Delta

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
