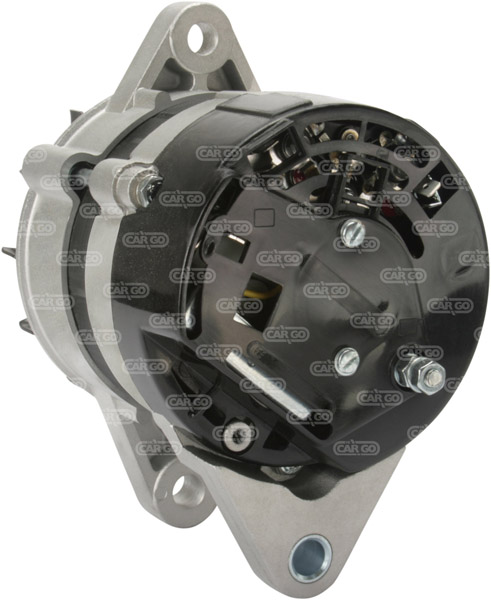

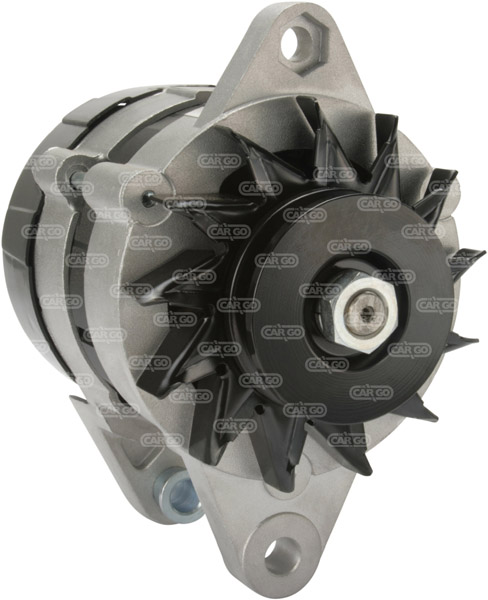

110882 - Alternator (110882)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 45,
Bracket Hole: 12.20, Belt. adj. bracket hole 10.50,
Width/Holder Arm: 16.25, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 63.00,
Pulley Dia.: 71.30,
Pulley Dist.: 47.00,
Grooves/Pulley: 1,
Radius: 84.00,
Radius: 92.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley P,
Total Length: 181.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 45 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 12.20 | |||
| G | Belt. adj. bracket hole 10.50 | |||
| B | Width/holder arm 16.25 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 63.00 | |||
| H | Pulley dia. 71.30 | |||
| A | Pulley dist. 47.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 84.00 | |||
| j | Radius 92.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 181.50 | |||
Further information (Alternator) | ||||
| Blower | w/o | |||
| Pulley | P | |||
Replacing | ||||
| 0120489106 | BOSCH | |||
| 0120489145 | BOSCH | |||
| 0120489761 | BOSCH | |||
| 0120489762 | BOSCH | |||
| 0120489765 | BOSCH | |||
| 021000-0320 | DENSO | |||
| 11.201.070 | ISKRA | |||
| 11.201.336 | ISKRA | |||
| 11.209.443 | ISKRA | |||
| 2022607 | FIAT | |||
UNISTART Price: £114.58
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lamborghini, Agricultural | 1700 | 6.8 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 6842 | 6 | TD | 1106 | 1706 | ||
| Lamborghini, Agricultural | 600 | 4 | Diesel | 1986 06 | 1995 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | Bosso | 674-70 N | |
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 774-80 DT | ||
| Lamborghini, Agricultural | 800 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 874-90 | ||
| Lamborghini, Agricultural | 600 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1300 | 5.5 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 5499 | 6 | TD | 916.6 | DT | 1306 | |
| Lamborghini, Agricultural | 600 | 4 | Diesel | 1986 06 | 1995 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 674-70 N | ||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 774-80 N | ||
| Lamborghini, Agricultural | 900 | 5.5 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 5499 | 6 | Diesel | 916.6 | 956-2 RM | ||
| Lamborghini, Agricultural | C | 4 | Diesel | 1990 09 | 2000 12 | 0 | 0 | 4000 | 4 | Diesel | 1000.4 | C 874-90 | ||
| Lamborghini, Agricultural | C | 4 | Diesel | 1986 06 | 2000 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | C 774-80 | ||
| Lamborghini, Agricultural | 900 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1100 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1700 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1500 | 6.8 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 6842 | 6 | TD | 1106HT | 1506 | ||
| Lamborghini, Agricultural | 600 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 674-70 | ||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 774-80 | ||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1987 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 775 | ||
| Lamborghini, Agricultural | 900 | 5.5 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 5499 | 6 | Diesel | 916.6 | 956 DT | ||
| Lamborghini, Agricultural | C Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1100 | 5.5 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 5499 | 6 | Diesel | 916.6 | 2RM | 1106 | |
| Fiat, Passenger Car EU | Panda | 0.7 | Gasoline | 1982 01 | 2004 07 | 22 | 30 | 652 | 2 | 141A.000 | Hatchback | 650 | Panda | |
| Fiat, Passenger Car EU | Ducato | 2.5 | Diesel | 1986 01 | 1990 08 | 68 | 92 | 2500 | 4 | TD | 8144.21 | Platform / Chassis | Ducato | |
| Fiat, Passenger Car EU | 131 | 2.5 | Diesel | 1979 03 | 1984 12 | 53 | 72 | 2445 | 4 | Diesel | 8144.61 | Estate | 2500 Super Mirafiori | 131 |
| Fiat, Passenger Car EU | Ducato | 2.5 | Diesel | 1982 01 | 1990 08 | 55 | 75 | 2500 | 4 | Diesel | 8144.67 | Van | Ducato | |
| Fiat, Passenger Car EU | Ducato | 2.5 | Diesel | 1982 07 | 1990 08 | 55 | 75 | 2500 | 4 | Diesel | 8144.67 | Platform / Chassis | Ducato | |
| Fiat, Passenger Car EU | Ducato | 2.4 | Diesel | 1982 07 | 1985 12 | 53 | 72 | 2428 | 4 | Diesel | 8144.61 | Bus | Panorama | Ducato |
| Fiat, Passenger Car EU | Ducato | 2.4 | Diesel | 1982 01 | 1990 08 | 53 | 72 | 2428 | 4 | Diesel | 8144.61 | Van | Ducato | |
| Fiat, Passenger Car EU | 131 | 2.5 | Diesel | 1978 06 | 1984 02 | 53 | 72 | 2445 | 4 | Diesel | 8144.61 | 131 | ||
| Fiat, Passenger Car EU | 132 | 2 | Diesel | 1978 07 | 1982 07 | 44 | 60 | 1995 | 4 | Diesel | 8144.65 | 132 | ||
| Fiat, Passenger Car EU | 132 | 2.5 | Diesel | 1978 07 | 1982 07 | 53 | 72 | 2445 | 4 | Diesel | 8144.61 | 132 | ||
| Fiat, Passenger Car EU | 131 | 2 | Diesel | 1978 07 | 1984 08 | 44 | 60 | 1995 | 4 | Diesel | 8144.65 | 131 | ||
| Fiat, Passenger Car EU | Ducato | 2.5 | Diesel | 1986 01 | 1990 08 | 68 | 92 | 2500 | 4 | TD | 8144.21 | Platform / Chassis | Ducato | |
| Fiat, Passenger Car EU | Ducato | 2.4 | Diesel | 1982 07 | 1985 12 | 53 | 72 | 2428 | 4 | Diesel | 8144.61 | Bus | Panorama | Ducato |
| Fiat, Passenger Car EU | 132 | 2 | Diesel | 1978 07 | 1982 07 | 44 | 60 | 1995 | 4 | Diesel | 8144.65 | 132 | ||
| Fiat, Passenger Car EU | 132 | 2.5 | Diesel | 1978 07 | 1982 07 | 53 | 72 | 2445 | 4 | Diesel | 8144.61 | 132 |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
