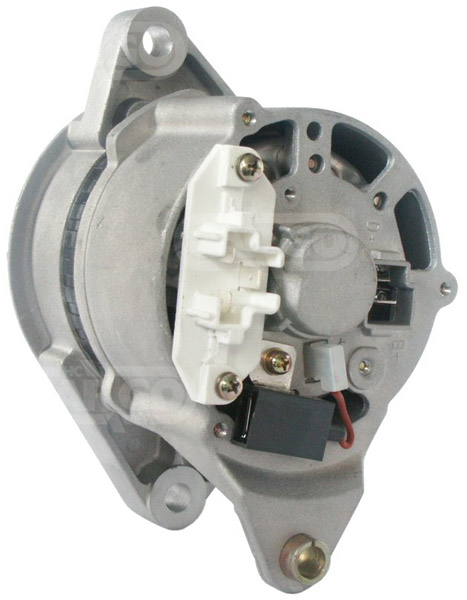

110899 - Alternator (110899)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 33,
Bracket Hole: 10.45, Belt. adj. bracket hole 10.50,
Width/Holder Arm: 24.00, Belt. adj. brackethole pos. 4,
Mount. Bracket Dist.: 74.00,
Pulley Dia.: 82.10,
Pulley Dist.: 48.45,
Grooves/Pulley: 1,
Radius: 86.35,
Radius: 76.50,
B+ Position: Plug,
Rotation: CR,
Regulator Plug: or plug PL29,
Blower: EF, Pulley P, Remarks
Regulator Plug: or: HC-CARGO 130675.,
Total Length: 162.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 33 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.45 | |||
| G | Belt. adj. bracket hole 10.50 | |||
| B | Width/holder arm 24.00 | |||
| E | Belt. adj. brackethole pos. 4 | |||
| C | Mount. bracket dist. 74.00 | |||
| H | Pulley dia. 82.10 | |||
| A | Pulley dist. 48.45 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 86.35 | |||
| j | Radius 76.50 | |||
| k | B+ position Plug | |||
| n | Rotation CR | |||
| o | Regulator plug PL29 | |||
| R | Total length 162.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
| Remarks | Regulator: HC-CARGO 130675. | |||
Replacing | ||||
| 0120300528 | BOSCH | |||
| 0120300529 | BOSCH | |||
| 0120300558 | BOSCH | |||
| 0120300559 | BOSCH | |||
| 0120300568 | BOSCH | |||
| 0120300569 | BOSCH | |||
| 4224325 | FIAT | |||
| 4257063 | FIAT | |||
| 4257074 | FIAT | |||
| 4257771 | FIAT | |||
UNISTART Price: £108.66
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1972 03 | 1979 12 | 55 | 75 | 1290 | 4 | 128AC.000 | Coupe | 1300 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | - | 1984 12 | 40 | 55 | 1116 | 4 | 128A.000 | 1100 | 128 | ||
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1974 08 | 1984 12 | 44 | 60 | 1290 | 4 | 128A1.000 | 1300 Sport | 128 | ||
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1972 03 | 1981 02 | 47 | 64 | 1116 | 4 | 128AC5.000 | Coupe | 1100 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1975 02 | 1981 02 | 33 | 45 | 1116 | 4 | 128A.048 | Estate | 1100 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1974 12 | 1982 10 | 44 | 60 | 1290 | 4 | 128A1.000 | Estate | 1300 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1975 02 | 1981 09 | 33 | 45 | 1116 | 4 | 128A.048 | 1100 | 128 | ||
| Fiat, Passenger Car EU | X-1/9 | 1.3 | Gasoline | 1973 05 | 1979 12 | 55 | 75 | 1290 | 4 | 128AS.000 | Convertible | X1/9 | ||
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1975 08 | 1981 02 | 48 | 65 | 1116 | 4 | 128AC5.000 | Coupe | 1100 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1975 06 | 1979 12 | 54 | 73 | 1290 | 4 | 128AC.000 | Coupe | 1300 Berlinetta | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | - | 1982 10 | 40 | 55 | 1116 | 4 | 128A.000 | Estate | 1100 | 128 | |
| Fiat, Passenger Car EU | X-1/9 | 1.3 | Gasoline | 1975 10 | 1978 06 | 54 | 73 | 1290 | 4 | 128AS.000 | Convertible | X1/9 | ||
| Fiat, Passenger Car EU | 127 | 1 | Gasoline | 1978 07 | 1982 02 | 51 | 70 | 1049 | 4 | 127A1.000 | Hatchback | Sport | 127 | |
| Volvo, Passenger Car EU | 66 | 1.1 | Gasoline | 1975 10 | 1979 11 | 33 | 45 | 1108 | 4 | B11 | Estate | 66 DL | ||
| Volvo, Passenger Car EU | 66 | 1.1 | Gasoline | 1975 08 | 1978 08 | 33 | 45 | 1108 | 4 | B11 | 66 | |||
| Volvo, Passenger Car EU | 66 | 1.3 | Gasoline | 1975 10 | 1979 11 | 42 | 57 | 1289 | 4 | B130 | Estate | 66 GL | ||
| Volvo, Passenger Car EU | 66 | 1.3 | Gasoline | 1975 08 | 1978 08 | 42 | 57 | 1289 | 4 | B130 | 66 | |||
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1975 06 | 1979 12 | 54 | 73 | 1290 | 4 | 128AC.000 | Coupe | 1300 Berlinetta | 128 | |
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1971 09 | 1976 02 | 49 | 67 | 1290 | 4 | 128AR000 | 1300 Rally | 128 |
