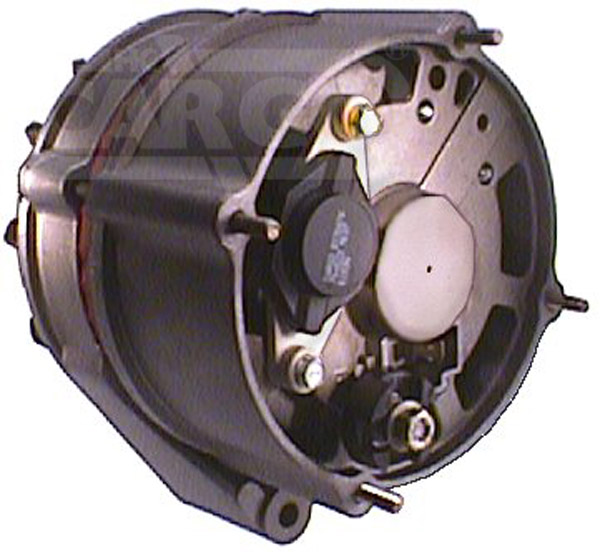

110911 - Alternator (110911)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 55,
Bracket Hole: 8.25, Belt. adj. bracket hole 8.25,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 50,
Pulley Dia.: 69.00,
Pulley Dist.: 77.64,
Grooves/Pulley: 1,
Radius: 85.50,
Radius: 79.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 171.00

Electrical specifications (Alternator)
Voltage 14
Amp 55

Physical specifications (Alternator)
D Bracket hole 8.25
G Belt. adj. bracket hole 8.25
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 50
H Pulley dia. 69.00
A Pulley dist. 77.64
i Grooves/pulley 1
j Radius 85.50
j Radius 79.00
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 171.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120489653 BOSCH
0120489654 BOSCH
0120489657 BOSCH
0120489659 BOSCH
0120489735 BOSCH
0120489759 BOSCH
0120489760 BOSCH
035903015 VOLKSWAGEN
035903015x VOLKSWAGEN
040903015g VOLKSWAGEN

UNISTART Price: £193.95

Sorry, this item is out of stock.

The 110911 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Audi, Passenger Car EU 100 1.9 Gasoline 1980 08 1982 07 74 100 1921 5 WH 100
Audi, Passenger Car EU 80 1.6 Gasoline 1978 08 1983 02 63 85 1588 4 YP 80
Audi, Passenger Car EU 100 2.1 Gasoline 1977 10 1982 07 85 115 2144 5 WE 100
Audi, Passenger Car EU 100 2 Gasoline 1977 08 1980 07 85 115 1984 4 WA Estate 100
Audi, Passenger Car EU 80 1.6 Gasoline 1978 08 1986 07 55 75 1595 4 YN 80
Audi, Passenger Car EU 80 1.6 Gasoline 1979 01 1986 12 81 110 1588 4 GLE YZ 80
Audi, Passenger Car EU 100 2 Gasoline 1976 06 1978 08 85 115 1984 4 WA 100
Audi, Passenger Car EU 100 2.1 Gasoline 1977 03 1982 07 100 136 2144 5 WG 100
Audi, Passenger Car EU 100 2.2 Gasoline 1977 07 1983 02 85 115 2144 5 WB Estate 100
Audi, Passenger Car EU 100 2.2 Gasoline 1977 07 1982 07 85 115 2144 5 WE Estate 100
Audi, Passenger Car EU 100 2.2 Gasoline 1977 07 1983 02 100 136 2144 5 WC Estate 100
Audi, Passenger Car EU 80 2.2 Gasoline 1980 10 1983 07 85 115 2144 5 WE 80
Audi, Passenger Car EU 80 1.6 Gasoline 1978 08 1981 07 51 70 1588 4 YY 80
Audi, Passenger Car EU 100 1.9 Gasoline 1980 08 1982 07 74 100 1921 5 WH Estate 100
Audi, Passenger Car EU 100 2.1 Gasoline 1977 10 1982 07 85 115 2144 5 WB 100
Audi, Passenger Car EU 100 2.1 Gasoline 1977 03 1982 07 100 136 2144 5 WC 100
Audi, Passenger Car EU 200 2.2 Gasoline 1979 10 1982 08 125 170 2144 5 Turbo WJ 200
Audi, Passenger Car EU Coupe 1.9 Gasoline 1980 08 1983 07 85 115 1921 5 WN Coupe Coupe
Audi, Passenger Car EU 100 2.2 Gasoline 1977 07 1983 02 100 136 2144 5 WG Estate 100
Audi, Passenger Car EU 80 1.6 Gasoline 1978 08 1981 07 51 70 1588 4 YT 80
Audi, Passenger cars US 5000 2.2 Gasoline 1978 01 1980 01 0 0 2144 L5 WE 5000
Audi, Passenger cars US 5000 2 Diesel 1979 01 1980 01 0 0 1986 L5 S CN 5000
Audi, Passenger cars US 5000 2 Diesel 1981 01 1981 01 0 0 1986 L5 S CN 5000
Audi, Passenger cars US 5000 2.2 Gasoline 1979 01 1980 01 0 0 2144 L5 S WD 5000
Audi, Passenger cars US 5000 2.2 Gasoline 1981 01 1983 01 0 0 2144 L5 S WD 5000
Audi, Passenger cars US 5000 2.2 Gasoline 1980 01 1980 01 0 0 2144 L5 S Turbo WK 5000
Audi, Passenger cars US 5000 2 Diesel 1979 01 1980 01 0 0 1986 L5 CN 5000
Audi, Passenger cars US 4000 2.2 Gasoline 1980 01 1983 01 85 116 2144 L5 WE 4000
Audi, Passenger cars US 5000 2.2 Gasoline 1981 01 1983 01 0 0 2144 L5 S WE 5000
Audi, Passenger cars US 5000 2.2 Gasoline 1979 01 1980 01 0 0 2144 L5 S WE 5000
Audi, Passenger cars US 5000 2 Diesel 1981 01 1981 01 0 0 1986 L5 CN 5000
Audi, Passenger cars US 5000 2.2 Gasoline 1978 01 1980 01 0 0 2144 L5 WD 5000
Audi, Passenger Car EU 100 2 Gasoline 1977 08 1980 07 85 115 1984 4 WA Estate 100
Audi, Passenger Car EU 100 2 Gasoline 1976 06 1978 08 85 115 1984 4 WA 100
