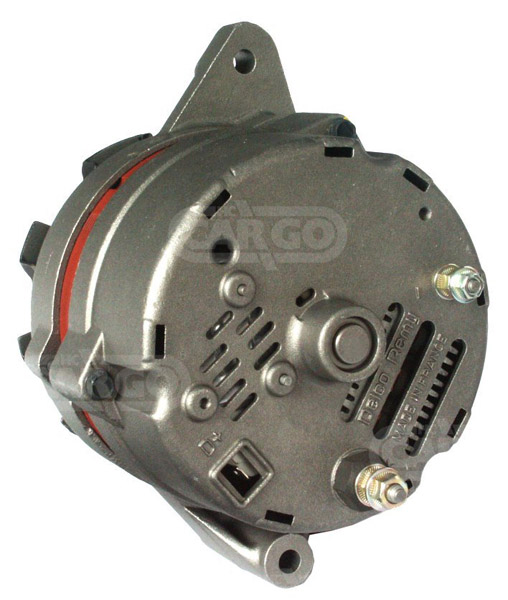

110914 - Alternator (110914)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 45,
Bracket Hole: 8.50, Belt. adj. bracket hole 8.55,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 55,
Pulley Dia.: 67.60,
Pulley Dist.: 86.00,
Grooves/Pulley: 1,
Radius: 87.00,
Radius: 91.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 169.50

Electrical specifications (Alternator)
Voltage 14
Amp 45

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole 8.55
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 55
H Pulley dia. 67.60
A Pulley dist. 86.00
i Grooves/pulley 1
j Radius 87.00
j Radius 91.00
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 169.50

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120489120 BOSCH
0120489122 BOSCH
053 REMY (DELCO)
065 REMY (DELCO)
1204002 OPEL
1204003 OPEL
1204012 OPEL
1204315 OPEL
206 REMY (DELCO)
220 REMY (DELCO)

UNISTART Price: £6.75

Sorry, this item is out of stock.

The 110914 - Alternator is shown in: Outlet > Starters & Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Kadett 1.8 Gasoline 1983 02 1984 08 85 115 1796 4 GT/E 18E Hatchback Kadett D
Opel, Passenger Car EU Rekord 1.8 Gasoline 1985 05 1986 08 74 100 1796 4 C18NV Rekord E
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1986 08 66 90 1598 4 S 16SH Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1987 09 1988 08 62 84 1796 4 E18NV Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1982 09 1986 08 85 115 1796 4 i 18E Ascona C
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 09 1986 08 85 115 1796 4 i 18E Estate Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 55 75 1796 4 18N Rekord E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 66 90 1796 4 S 18S Rekord E
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 i C18NE Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1982 09 1986 08 85 115 1796 4 i 18E Hatchback Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1981 09 1984 08 66 90 1598 4 S 16SH Estate Kadett D
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 10 1986 08 74 100 1796 4 E C18NE Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 09 1986 08 85 115 1796 4 GSi 18E Hatchback Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 55 75 1796 4 18N Estate Rekord E
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 E C18NE Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1981 09 1984 08 66 90 1598 4 S 16SH Hatchback Kadett D
Opel, Passenger Car EU Kadett 1.6 Gasoline 1984 09 1986 08 66 90 1598 4 S 16SH Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 10 1986 08 74 100 1796 4 i C18NE Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1984 09 1986 08 66 90 1598 4 S 16SH Estate Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 10 1986 08 74 100 1796 4 C18NE Estate Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 09 1986 08 85 115 1796 4 i 18E Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1985 05 1986 08 74 100 1796 4 E C18NV Estate Rekord E
Opel, Passenger Car EU Manta 1.8 Gasoline 1982 07 1987 08 66 90 1796 4 S 18S Coupe Manta B
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1987 09 55 75 1598 4 16N Ascona C
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1986 08 66 90 1598 4 S 16SH Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 S18NV Hatchback Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1984 09 1986 08 66 90 1598 4 S 16SH Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i C18NT Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1990 09 1991 08 66 90 1796 4 i C18NT Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i C18NT Estate Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 66 90 1796 4 S 18S Estate Rekord E
Opel, Passenger Car EU Manta 1.8 Gasoline 1982 07 1987 08 66 90 1796 4 S 18S Manta B
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 08 1992 09 66 90 1796 4 i C18NT Van Kadett E
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1982 12 1986 08 65 88 1796 4 S 18S Carlton
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1986 08 1988 08 55 75 1598 4 i C16NZ Cavalier
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1982 11 1986 08 66 90 1796 4 S 18S Estate Carlton MK
Vauxhall, Passenger Car EU Belmont 1.6 Gasoline 1985 09 1991 08 66 90 1598 4 16SH Belmont
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1986 09 1994 03 90 122 1998 4 i 20SE Estate Carlton
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1983 03 1986 08 85 115 1796 4 18E Hatchback GTE Astra D
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1981 09 1988 08 66 90 1598 4 S 16SH Hatchback Cavalier
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 73 99 1998 4 i C20NEJ Estate Carlton
Vauxhall, Passenger Car EU Belmont 1.7 Diesel 1989 01 1991 12 42 57 1699 4 Diesel 17D Belmont
Vauxhall, Passenger Car EU Belmont 1.8 Gasoline 1985 09 1991 08 85 115 1796 4 i 18SE Belmont
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1986 08 1988 08 55 75 1598 4 i C16LZ Cavalier
Vauxhall, Passenger Car EU Belmont 1.8 Gasoline 1985 09 1991 08 85 115 1796 4 i 18E Belmont
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1981 09 1988 08 66 90 1598 4 S 16SH Cavalier
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1983 10 1988 08 66 90 1598 4 16SH Estate Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1981 09 1986 08 82 112 1796 4 i 18E Estate Cavalier
