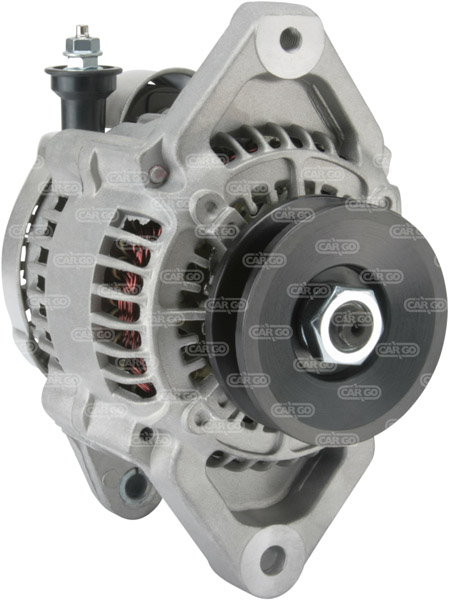

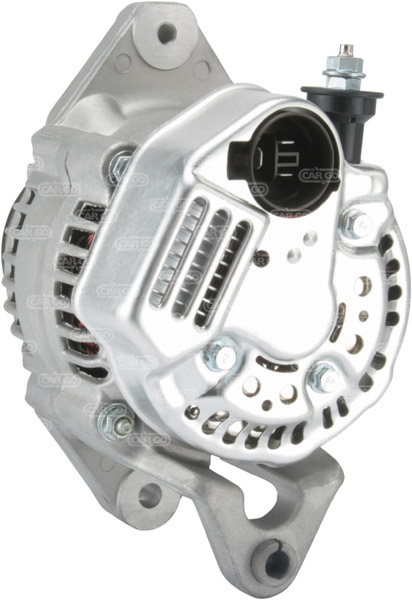

110965 - Alternator (110965)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 50,
Bracket Hole: 8.80, Belt. adj. bracket hole M8,
Width/Holder Arm: 20.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 66.88,
Pulley Dia.: 72.00,
Pulley Dist.: 42.15,
Grooves/Pulley: 1,
Radius: 78.00,
Radius: 77.15,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL11,
Blower: IF, Pulley P,
Total Length: 156.25
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 50 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.80 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 20.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 66.88 | |||
| H | Pulley dia. 72.00 | |||
| A | Pulley dist. 42.15 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 78.00 | |||
| j | Radius 77.15 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL11 | |||
| R | Total length 156.25 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 100211-1410 | DENSO | |||
| 100211-1411 | DENSO | |||
| 100211-1550 | DENSO | |||
| 100211-1551 | DENSO | |||
| 100211-4070 | DENSO | |||
| 100211-4071 | DENSO | |||
| 100211-6270 | DENSO | |||
| 31400-82610 | SUZUKI | |||
| 31400-82611 | SUZUKI | |||
| 31400-83010 | SUZUKI | |||
UNISTART Price: £105.73
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suzuki, Passenger cars US | Samurai | 1.3 | Gasoline | 1990 01 | 1990 01 | 0 | 0 | 1298 | L4 | Samurai | ||||
| Suzuki, Passenger cars US | SJ | 1.3 | Gasoline | 1985 01 | - | 0 | 0 | 1298 | L4 | SJ 413 | ||||
| Suzuki, Passenger cars US | Samurai | 1.3 | Gasoline | 1991 01 | 1993 01 | 0 | 0 | 1298 | L4 | JA | Samurai | |||
| Suzuki, Passenger cars US | Samurai | 1.3 | Gasoline | 1991 01 | 1995 01 | 0 | 0 | 1298 | L4 | JL | Samurai | |||
| Suzuki, Passenger cars US | Sidekick | 1.3 | Gasoline | 1989 01 | 1989 01 | 0 | 0 | 1325 | L4 | Sidekick | ||||
| Suzuki, Passenger cars US | Forsa | 1 | Gasoline | 1987 01 | - | 0 | 0 | 993 | L3 | Forsa | ||||
| Suzuki, Passenger cars US | Forsa | 1 | Gasoline | 1987 01 | - | 0 | 0 | 993 | L3 | V | Forsa | |||
| Suzuki, Passenger cars US | Forsa | 1 | Gasoline | 1988 01 | - | 0 | 0 | 993 | L3 | Forsa | ||||
| Suzuki, Passenger cars US | Forsa | 1 | Gasoline | 1988 01 | - | 0 | 0 | 993 | L3 | Turbo | Forsa | |||
| Suzuki, Passenger cars US | Forsa | 1 | Gasoline | 1987 01 | - | 0 | 0 | 993 | L3 | Turbo | Forsa | |||
| Suzuki, Passenger cars US | Forsa | 1 | Gasoline | 1988 01 | - | 0 | 0 | 993 | L3 | V | Forsa | |||
| Suzuki, Passenger cars US | Samurai | 1.3 | Gasoline | 1985 01 | - | 0 | 0 | 1325 | L4 | Samurai | ||||
| Suzuki, Passenger cars US | Samurai | 1.3 | Gasoline | 1986 01 | 1989 01 | 0 | 0 | 1325 | L4 | Samurai | ||||
| Suzuki, Passenger cars US | Samurai | 1.3 | Gasoline | 1991 01 | 1991 01 | 0 | 0 | 1298 | L4 | JS | Samurai | |||
| Suzuki, Passenger Car EU | Swift | 1 | Gasoline | 1983 10 | 1989 03 | 37 | 50 | 993 | 3 | G10A | Hatchback | Swift | ||
| Suzuki, Passenger Car EU | Samurai | 1.3 | Gasoline | 1988 11 | - | 44 | 60 | 1324 | 4 | G13A | Samurai | |||
| Suzuki, Passenger Car EU | SJ | 1.3 | Gasoline | 1984 09 | 1988 12 | 47 | 64 | 1324 | 4 | G13A | SJ 413 | |||
| Suzuki, Passenger Car EU | Samurai | 1.3 | Gasoline | 1988 11 | - | 47 | 64 | 1324 | 4 | G13A | Samurai | |||
| Suzuki, Passenger Car EU | Swift | 1 | Gasoline | 1983 10 | 1989 03 | 37 | 50 | 993 | 3 | G10 | Hatchback | Swift | ||
| Suzuki, Passenger Car EU | SJ 413 | 1.3 | Gasoline | 1984 09 | 1985 12 | 47 | 63 | 1298 | 4 | G13B | 4x4 | SJ 413 | ||
| Suzuki, Passenger Car EU | Samurai | 1.3 | Gasoline | 1988 11 | - | 51 | 70 | 1298 | 4 | G13BA | Samurai | |||
| Suzuki, Passenger Car EU | Swift | 1.3 | Gasoline | 1984 10 | 1989 03 | 50 | 68 | 1324 | 4 | G13A | Hatchback | Swift | ||
| Suzuki, Passenger Car EU | Swift | 1.3 | Gasoline | 1984 10 | 1989 03 | 54 | 73 | 1324 | 4 | G13A | Hatchback | Swift | ||
| Suzuki, Passenger Car EU | SJ | 1.3 | Gasoline | 1986 08 | 1990 08 | 44 | 60 | 1324 | 4 | G13A | SJ 413 | |||
| Suzuki, Passenger Car EU | Swift | 1 | Gasoline | 1985 02 | 1989 12 | 52 | 71 | 993 | 3 | Turbo | G10T | Hatchback | Swift | |
| Suzuki, Passenger Car EU | Swift | 1.3 | Gasoline | 1986 08 | 1989 03 | 47 | 64 | 1324 | 4 | G13A | Hatchback | Swift | ||
| Pontiac, Passenger cars US | Firefly | 1 | Gasoline | 1987 01 | - | 0 | 0 | 993 | L3 | Firefly | ||||
| Pontiac, Passenger cars US | Firefly | 1 | Gasoline | 1988 01 | - | 0 | 0 | 993 | L3 | Firefly | ||||
| Pontiac, Passenger cars US | Firefly | 1 | Gasoline | 1987 01 | - | 0 | 0 | 993 | L3 | Turbo | Firefly | |||
| Pontiac, Passenger cars US | Firefly | 1 | Gasoline | 1988 01 | - | 0 | 0 | 993 | L3 | Turbo | Firefly |
