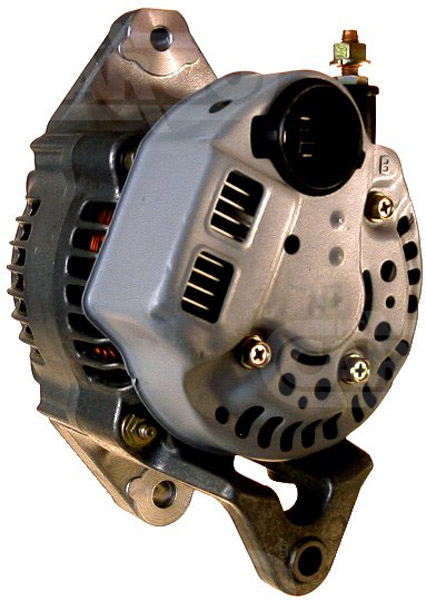

110967 - Alternator (110967)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 50,
Bracket Hole: 8.80, Belt. adj. bracket hole M8 x 1,25,
Width/Holder Arm: 19.90, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 67.00,
Pulley Dia.: 55.00,
Pulley Dist.: 37.30,
Grooves/Pulley: 4,
Radius: 77.00,
Radius: 77.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL11,
Blower: IF, Pulley SP,
Total Length: 156.65

Electrical specifications (Alternator)
Voltage 14
Amp 50

Physical specifications (Alternator)
D Bracket hole 8.80
G Belt. adj. bracket hole M8 x 1,25
B Width/holder arm 19.90
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 67.00
H Pulley dia. 55.00
A Pulley dist. 37.30
i Grooves/pulley 4
j Radius 77.00
j Radius 77.00
k B+ position M6
n Rotation CR
o Regulator plug PL11
R Total length 156.65

Further information (Alternator)
Blower IF
Pulley SP

Replacing
100211-1570 DENSO
100211-1571 DENSO
100211-1573 DENSO
100211-2120 DENSO
100211-6600 DENSO
100211-6710 DENSO
100211-672 DENSO
100211-6720 DENSO
100211-6721 DENSO
101211-2120 DENSO

UNISTART Price: £120.11

Sorry, this item is out of stock.

The 110967 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1990 01 0 0 1298 L4 GL Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1991 01 1991 01 0 0 1298 L4 GL Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1990 01 0 0 1298 L4 L Swift
Suzuki, Passenger cars US Swift 1.6 Gasoline 1993 01 - 0 0 1590 L4 GLX Swift
Suzuki, Passenger cars US Swift 1.6 Gasoline 1992 01 - 0 0 1590 L4 GLX Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1991 01 1991 01 0 0 1298 L4 GLX Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1992 01 1994 01 0 0 1298 L4 GS Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1989 01 1994 01 0 0 1298 L4 GT Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1990 01 0 0 1298 L4 S Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1991 01 1994 01 0 0 1298 L4 L Swift
Suzuki, Passenger cars US Swift 1 Gasoline 1993 01 - 0 0 993 L3 GA Swift
Suzuki, Passenger cars US Swift 1.6 Gasoline 1993 01 - 0 0 1590 L4 GL Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1989 01 1991 01 0 0 1298 L4 Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1994 01 0 0 1298 L4 GA Swift
Suzuki, Passenger cars US Swift 1 Gasoline 1992 01 - 0 0 993 L3 GA Swift
Suzuki, Passenger cars US Swift 1 Gasoline 1994 01 - 0 0 993 L3 GA Swift
Suzuki, Passenger cars US Swift 1.6 Gasoline 1992 01 - 0 0 1590 L4 GL Swift
Suzuki, Passenger Car EU Swift 1 Gasoline 1989 03 2001 05 37 50 993 3 G10A Hatchback Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 03 1991 12 52 71 1324 4 G13A Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 10 1991 12 52 71 1324 4 G13A Hatchback 4WD Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 03 2001 05 74 101 1298 4 GTi G13B Hatchback Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 03 2001 05 50 68 1324 4 G13A Swift
Suzuki, Passenger Car EU Swift 1 Gasoline 1991 09 2001 05 39 53 993 3 i G10A Hatchback Swift
Suzuki, Passenger Car EU Alto 1 Gasoline 2000 01 2002 06 43 58 993 4 G10B Hatchback Alto
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 03 - 50 68 1298 4 G13A Hatchback Swift
Suzuki, Passenger Car EU Swift 1 Gasoline 1989 03 1991 12 40 54 993 3 i G10A Hatchback Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1991 09 1996 10 50 68 1298 4 G13BA Convertible Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 03 2001 05 50 68 1324 4 G13A Hatchback 4WD Swift
Suzuki, Passenger Car EU Swift 1.3 Gasoline 1989 03 1991 12 52 71 1324 4 G13A Hatchback Swift
GEO, Passenger cars US Metro 1 Gasoline 1992 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1990 01 1994 01 0 0 993 L3 XFI Metro
GEO, Passenger cars US Metro 1 Gasoline 1990 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1995 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1991 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1989 01 1994 01 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1989 01 1995 01 0 0 993 L3 LSI Metro
