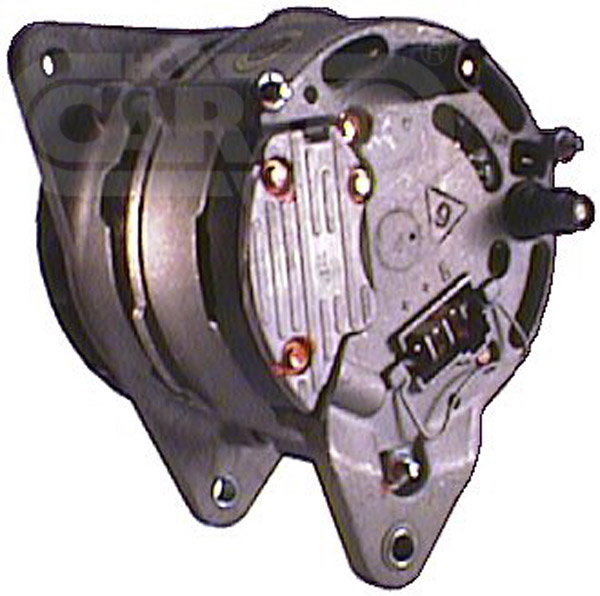

110969 - Alternator (110969)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 65,
Bracket Hole: 8.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 11.00, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 64.00,
Pulley Dist.: 38.00,
Grooves/Pulley: 1,
Radius: 85.15,
Radius: 86.35,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: EF, Pulley P,
Total Length: 167.50, Source Prestolite
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 65 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.20 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 11.00 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| C | Mount. bracket dist. 82.00 | |||
| H | Pulley dia. 64.00 | |||
| A | Pulley dist. 38.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 85.15 | |||
| j | Radius 86.35 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL22 | |||
| R | Total length 167.50 | |||
| Source | Prestolite | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 23582 | LUCAS | |||
| 23582a | LUCAS | |||
| 23582b | LUCAS | |||
| 23582d | LUCAS | |||
| 23667 | LUCAS | |||
| 23667a | LUCAS | |||
| 23667b | LUCAS | |||
| 23667d | LUCAS | |||
| 23696 | LUCAS | |||
| 23696a | LUCAS | |||
UNISTART Price: £90.57
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Land Rover, Passenger Car EU | Land Rover | 3.5 | Gasoline | 1983 09 | 1990 07 | 100 | 136 | 3528 | 8 | V8 | Land Rover | |||
| Land Rover, Passenger Car EU | Defender | 3.5 | Gasoline | 1990 08 | 1998 12 | 100 | 136 | 3532 | 8 | V8 | Defender | |||
| Various Agriculture Vehicles, Agricultural | Various Agriculture Vehicles | - | - | 0 | 0 | 0 | ||||||||
| Various Agriculture Vehicles, Agricultural | Various Agriculture Vehicles | - | - | 0 | 0 | 0 |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
