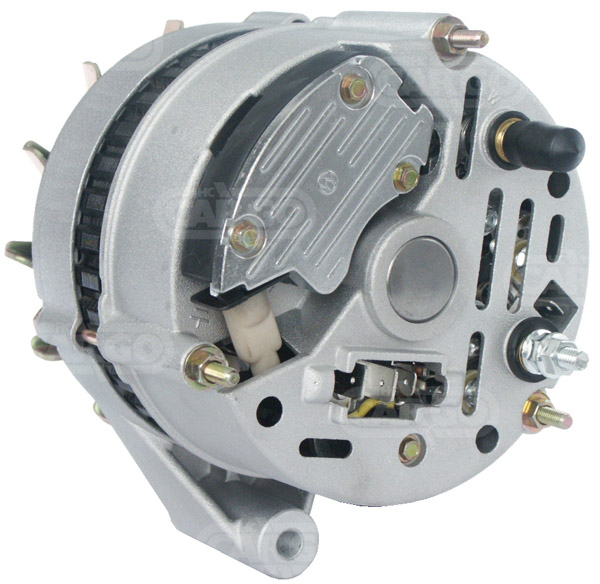

110975 - Alternator (110975)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 65, Terminal W,
Bracket Hole: 8.40, Belt. adj. bracket hole 8.15,
Width/Holder Arm: 56.25, Belt. adj. brackethole pos. 50,
Pulley Dia.: 72.00,
Pulley Dist.: 82.85,
Grooves/Pulley: 1,
Radius: 84.80,
Radius: 86.85,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: EF, Pulley P,
Total Length: 167.00, Source Prestolite
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 65 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.40 | |||
| G | Belt. adj. bracket hole 8.15 | |||
| B | Width/holder arm 56.25 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| H | Pulley dia. 72.00 | |||
| A | Pulley dist. 82.85 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 84.80 | |||
| j | Radius 86.85 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL22 | |||
| R | Total length 167.00 | |||
| Source | Prestolite | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 0120300563 | BOSCH | |||
| 0120300564 | BOSCH | |||
| 0120300584 | BOSCH | |||
| 0120400670 | BOSCH | |||
| 0120489058 | BOSCH | |||
| 0120489551 | BOSCH | |||
| 0120489569 | BOSCH | |||
| 0120489789 | BOSCH | |||
| 0120489975 | BOSCH | |||
| 0120489999 | BOSCH | |||
UNISTART Price: £146.78
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VW, Passenger cars US | Dasher | 1.5 | Gasoline | 1975 01 | 1975 01 | 0 | 0 | 1471 | L4 | XR | Dasher | |||
| VW, Passenger cars US | Dasher | 1.5 | Gasoline | 1974 01 | 1974 01 | 0 | 0 | 1471 | L4 | XY | Dasher | |||
| VW, Passenger cars US | Dasher | 1.6 | Gasoline | 1976 01 | 1980 01 | 0 | 0 | 1588 | L4 | YG | Dasher | |||
| VW, Passenger cars US | Dasher | 1.6 | Gasoline | 1976 01 | 1976 01 | 0 | 0 | 1588 | L4 | YK | Dasher | |||
| VW, Passenger cars US | Dasher | 1.5 | Gasoline | 1974 01 | 1974 01 | 0 | 0 | 1471 | L4 | XW | Dasher | |||
| VW, Passenger cars US | Dasher | 1.5 | Gasoline | 1974 01 | 1974 01 | 0 | 0 | 1471 | L4 | XZ | Dasher | |||
| VW, Passenger cars US | Dasher | 1.5 | Gasoline | 1975 01 | 1975 01 | 0 | 0 | 1471 | L4 | XS | Dasher | |||
| VW, Passenger cars US | Dasher | 1.6 | Gasoline | 1976 01 | 1980 01 | 0 | 0 | 1588 | L4 | YH | Dasher | |||
| VW, Passenger cars US | Dasher | 1.5 | Gasoline | 1974 01 | 1974 01 | 0 | 0 | 1471 | L4 | XV | Dasher | |||
| Audi, Passenger cars US | Fox | 1.6 | Gasoline | 1976 01 | - | 0 | 0 | 1588 | L4 | YK | Fox | |||
| Various Agriculture Vehicles, Agricultural | Various Agriculture Vehicles | - | - | 0 | 0 | 0 |
