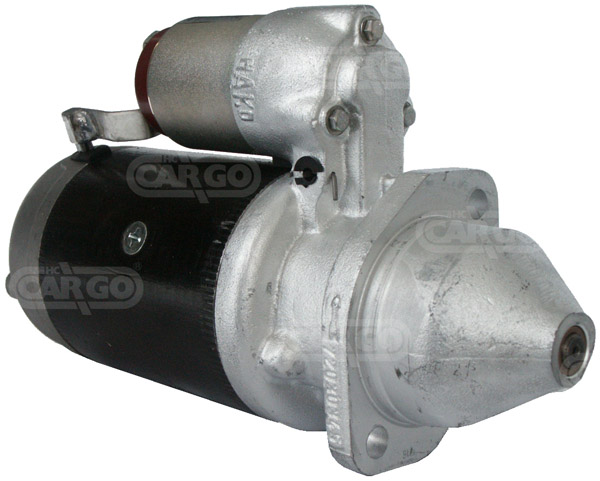

111001 - Starter (111001)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 3.0, Mount. flange 82.00, Drive dist. 21.60, Dist./back 253.00, Dist./front 67.00, No. of teeth 9,11, B+ M10, Gear type DD, Dist. 104.50,
Rotation: CR, No./mount. holes 2 (0),
Drive Type: Steel,
Total Length: 340.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 3.0 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 82.00 | |||
| B | Drive dist. 21.60 | |||
| F | Dist./back 253.00 | |||
| G | Dist./front 67.00 | |||
| H | No. of teeth 9,11 | |||
| I | B+ M10 | |||
| N | Gear type DD | |||
| O | Dist. 104.50 | |||
| P | Rotation CR | |||
| R | Total length 340.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (0) | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001230012 | BOSCH | |||
| 0001262029 | BOSCH | |||
| 0001262030 | BOSCH | |||
| 0001358005 | BOSCH | |||
| 0001359038 | BOSCH | |||
| 0001359056 | BOSCH | |||
| 0001359083 | BOSCH | |||
| 0001359113 | BOSCH | |||
| 0001362023 | BOSCH | |||
| 0001362036 | BOSCH | |||
UNISTART Price: £190.59
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lamborghini, Agricultural | 600 | 4 | Diesel | 1986 06 | 1995 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | Bosso | 674-70 N | |
| Lamborghini, Agricultural | 800 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 874-90 | ||
| Lamborghini, Agricultural | C | 3.1 | Diesel | 1987 06 | 2000 12 | 0 | 0 | 0 | 3 | Diesel | C 664 | |||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 774-80 DT | ||
| Lamborghini, Agricultural | 100 | Diesel | 1989 03 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1004.4 | Formula | 105 | ||
| Lamborghini, Agricultural | 100 | 6 | Diesel | 1989 12 | 1999 12 | 0 | 0 | 0 | 6 | Diesel | 1000.6 | Formula | 115 | |
| Lamborghini, Agricultural | 600 | 3 | 1987 06 | 1999 12 | 0 | 0 | 0 | Diesel | 1000.3 | 660 F | ||||
| Lamborghini, Agricultural | 600 | 4 | Diesel | 1986 06 | 1995 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 674-70 N | ||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 774-80 N | ||
| Lamborghini, Agricultural | C | 4 | Diesel | 1990 09 | 2000 12 | 0 | 0 | 4000 | 4 | Diesel | 1000.4 | C 874-90 | ||
| Lamborghini, Agricultural | C | 4 | Diesel | 1986 06 | 2000 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | C 774-80 | ||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 774-80 | ||
| Lamborghini, Agricultural | 600 | 4 | Diesel | 1986 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 674-70 | ||
| Lamborghini, Agricultural | 700 | 4 | Diesel | 1987 06 | 1999 12 | 0 | 0 | 0 | 4 | Diesel | 1000.4 | 775 | ||
| Lamborghini, Agricultural | 900 | 5.5 | Diesel | 1984 01 | 1999 12 | 0 | 0 | 5499 | 6 | Diesel | 916.6 | 956 DT | ||
| Same, Agricultural | Various Models | - | - | 0 | 0 | 0 | Various Models | |||||||
| Same, Agricultural | Drago | 5.4 | Diesel | 1971 11 | - | 72 | 98 | 5430 | 6 | Drago | ||||
| Same, Agricultural | Explorer | 4 | Diesel | 1986 07 | - | 59 | 80 | 0 | 4 | Diesel | Explorer 80 | |||
| Same, Agricultural | Explorer | 4 | Diesel | 1986 07 | - | 51 | 0 | 0 | 3 | Diesel | Explorer 70 | |||
| Same, Agricultural | Explorer | 4 | Diesel | 1986 06 | - | 65 | 0 | 0 | 4 | Diesel | Explorer 90 | |||
| Same, Agricultural | Buffalo | 6.2 | Diesel | 1974 07 | - | 85 | 115 | 6230 | 6 | DA1056 | Buffalo 120 | |||
| Same, Agricultural | Frutteto | 3 | Diesel | 1991 05 | - | 55 | 0 | 0 | 3 | Diesel | Frutteto 75 | |||
| Steyr, Agricultural | 8000 Series | 3.5 | Diesel | 1980 01 | - | 0 | 0 | 3456 | 4 | WD 411.. | 8080 | |||
| Steyr, Agricultural | 8000 Series | 3.5 | Diesel | 1980 01 | - | 0 | 0 | 3456 | 4 | WD 411.. | 8070 | |||
| Steyr, Agricultural | 8000 Series | 3.5 | Diesel | 1990 02 | - | 0 | 0 | 3456 | 4 | WD 411.. | 8085 | |||
| Steyr, Agricultural | 8000 Series | 3.5 | Diesel | 1984 01 | - | 0 | 0 | 3456 | 4 | WD 411.. | 8075 | |||
| Steyr, Agricultural | 8000 Series | 3.5 | Diesel | 1984 01 | - | 3456 | 0 | 0 | 4 | WD 411.. | 8090 | |||
| Lamborghini, MOTOR | Engine | Diesel | 1990 09 | 1999 12 | 0 | 0 | 0 | 6 | 1000.6.. | |||||
| Lamborghini, MOTOR | Engine | Diesel | 1987 01 | 1999 12 | 0 | 0 | 0 | 4 | 1000.4W |
TEST & REPAIR SERVICE
Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.
You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
