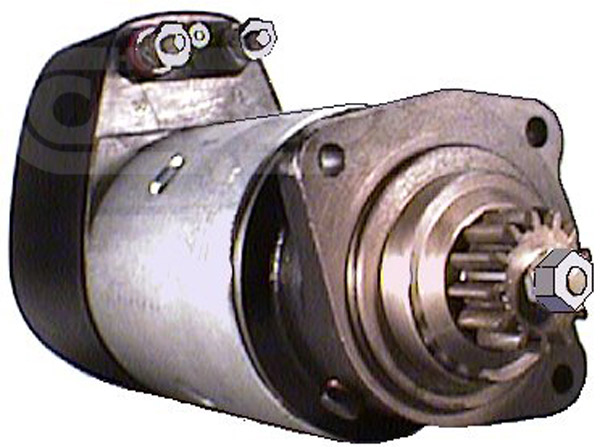

111003 - Starter (111003)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 24, kW 5.4, Mount. flange 89.00, Drive dist. 47.50, Dist./back 327.00, Dist./front 62.50, No. of teeth 13, B+ M10, Gear type DD, Dist. 126.70, Dist. 2 90.00, Dist. 3 90.00,
Rotation: CR, No./mount. holes 3 (0),
Drive Type: Steel,
Total Length: 387.50, Oil sealed No, Waterproof Yes

Electrical specifications (Starter)
Voltage 24
kW 5.4

Physical specifications (Starter)
A Mount. flange 89.00
B Drive dist. 47.50
F Dist./back 327.00
G Dist./front 62.50
H No. of teeth 13
I B+ M10
N Gear type DD
O Dist. 126.70
O Dist. 2 90.00
O Dist. 3 90.00
P Rotation CR
R Total length 387.50

Further information (Starter)
No./mount. holes 3 (0)
Drive type Steel
Oil sealed No
Waterproof Yes

Replacing
0001410052 BOSCH
0001410094 BOSCH
0001415007 BOSCH
0001416004 BOSCH
19024012 REMY (DELCO)
im504 AVF ( DELCO - H/MOGURT )

UNISTART Price: £324.29

Sorry, this item is out of stock.

The 111003 - Starter is shown in: Starters & Alternators > Starters , Trucks, Trailers and Buses > Starters & Alternators , Industrial > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Hanomag, Industrials 50 Series 9.5 Diesel 1980 02 1996 03 0 0 0 6 D962B 55C
Hanomag, Industrials 50 Series 10.8 Diesel 1981 01 1996 03 0 0 0 6 D963B 55C
Hanomag, Industrials 60 Series 10.8 Diesel 1980 02 1996 03 0 0 0 6 Turbo D963A.. 66 C
Hanomag, Industrials 70 Series 10.8 Diesel 1980 02 1996 03 0 0 0 6 Turbo D963A.. 77 C
Hanomag, Industrials 600 Series 9.5 Diesel 1980 02 1996 03 0 0 0 6 D962K 600 D
Hanomag, Industrials 700 Series 10.8 Diesel 1980 04 1996 03 0 0 0 6 Turbo D963A.. 700 D
Hanomag, Industrials 40 Series 7.2 Diesel 1980 02 1992 07 0 0 0 4 D943.. 44 C
Mercedes-Benz, Trucks EU Hanomag - - 0 0 0 Various Models
Hanomag, Industrials 50 Series 9.5 Diesel 1980 02 1996 03 0 0 0 6 D962B 55C
Hanomag, Industrials 50 Series 10.8 Diesel 1981 01 1996 03 0 0 0 6 D963B 55C
Hanomag, Industrials 60 Series 10.8 Diesel 1980 02 1996 03 0 0 0 6 Turbo D963A.. 66 C
Hanomag, Industrials 70 Series 10.8 Diesel 1980 02 1996 03 0 0 0 6 Turbo D963A.. 77 C
Hanomag, Industrials 600 Series 9.5 Diesel 1980 02 1996 03 0 0 0 6 D962K 600 D
Hanomag, Industrials 700 Series 10.8 Diesel 1980 04 1996 03 0 0 0 6 Turbo D963A.. 700 D
Hanomag, Industrials 40 Series 7.2 Diesel 1980 02 1992 07 0 0 0 4 D943.. 44 C
