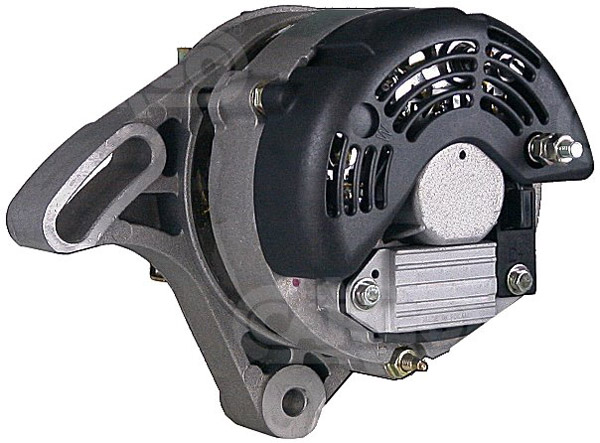

111036 - Alternator (111036)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 45,
Bracket Hole: 9.85, Belt. adj. bracket hole 11.45/44.10,
Width/Holder Arm: 32.25, Belt. adj. brackethole pos. 15,
Pulley Dia.: 65.80,
Pulley Dist.: 56.80,
Grooves/Pulley: 1,
Radius: 81.00,
Radius: 81.60,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 45 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 9.85 | |||
| G | Belt. adj. bracket hole 11.45/44.10 | |||
| B | Width/holder arm 32.25 | |||
| E | Belt. adj. brackethole pos. 15 | |||
| H | Pulley dia. 65.80 | |||
| A | Pulley dist. 56.80 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 81.00 | |||
| j | Radius 81.60 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 063321000000 | MAKO | |||
| 11.201.358 | ISKRA | |||
| 11.201.735 | ISKRA | |||
| 111081 | CARGO | |||
| 19025791 | REMY (DELCO) | |||
| 2518028 | VALEO | |||
| 2541135 | VALEO | |||
| 46231657 | FIAT | |||
| 46231659 | FIAT | |||
| 46231660 | FIAT | |||
UNISTART Price: £96.80
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1986 01 | 1995 01 | 25 | 34 | 770 | 4 | 156A4.000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 01 | 1989 07 | 32 | 44 | 999 | 4 | 156A2.100 | Hatchback | 4x4 | Panda | |
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 01 | 1989 07 | 32 | 44 | 999 | 4 | 156A3.100 | Hatchback | 4x4 | Panda | |
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 01 | 1992 02 | 32 | 44 | 999 | 4 | 156A2.100 | Van | Panda | ||
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 01 | 1992 02 | 32 | 44 | 999 | 4 | 156A3.100 | Van | Panda | ||
| Fiat, Passenger Car EU | Uno | 1 | Gasoline | 1986 06 | 1993 12 | 32 | 44 | 999 | 4 | 156A2.048 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Uno | 1 | Gasoline | 1986 06 | 1993 12 | 32 | 44 | 999 | 4 | 156A2.100 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Tipo | 1.1 | Gasoline | 1988 01 | 1991 10 | 41 | 56 | 1108 | 4 | 160A3.000 | Hatchback | Digit | Tipo | |
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1992 08 | 2004 02 | 33 | 45 | 999 | 4 | i.e. | 156A2.246 | Van | Panda | |
| Fiat, Passenger Car EU | Uno | 1 | Gasoline | 1994 04 | 2002 10 | 41 | 56 | 994 | 4 | 146C4.011 | Hatchback | Uno | ||
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1987 12 | 1990 02 | 37 | 50 | 999 | 4 | 156A2.000 | Hatchback | Fire 4WD | Y10 | |
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1987 12 | 1992 02 | 33 | 45 | 999 | 4 | 156A2.000 | Hatchback | Fire 4WD | Y10 | |
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1987 12 | 1992 02 | 33 | 45 | 999 | 4 | 156A2.246 | Hatchback | Fire 4WD | Y10 | |
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1987 10 | 1992 02 | 33 | 45 | 986 | 4 | 156A2.246 | Hatchback | Fire | Y10 | |
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1985 03 | 1989 06 | 33 | 45 | 999 | 4 | 156A2.000 | Hatchback | Fire | Y10 | |
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1985 06 | 1991 06 | 32 | 44 | 999 | 4 | 156A2.100 | Hatchback | Fire | Y10 | |
| Lancia, Passenger Car EU | Y | 1 | Gasoline | 1986 12 | 1989 02 | 32 | 44 | 999 | 4 | 156A2.100 | Hatchback | Fire 4WD | Y10 |
