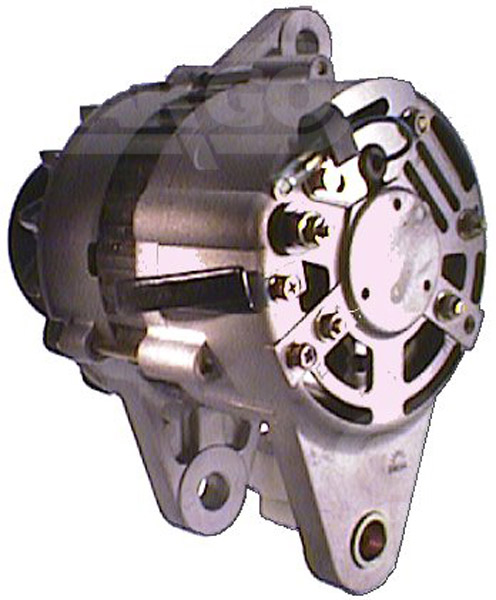

111051 - Alternator (111051)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 28,
Amp: 25,
Bracket Hole: 14.55, Belt. adj. bracket hole 12.55,
Width/Holder Arm: 16.15, Belt. adj. brackethole pos. 55,
Mount. Bracket Dist.: 70.35,
Pulley Dia.: 84.00,
Pulley Dist.: 60.00,
Grooves/Pulley: 2,
Radius: 99.50,
Radius: 100.80,
B+ Position: M5,
Rotation: ACR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley DP,
Total Length: 205.50
Electrical specifications (Alternator) | ||||
| Voltage | 28 | |||
| Amp | 25 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 14.55 | |||
| G | Belt. adj. bracket hole 12.55 | |||
| B | Width/holder arm 16.15 | |||
| E | Belt. adj. brackethole pos. 55 | |||
| C | Mount. bracket dist. 70.35 | |||
| H | Pulley dia. 84.00 | |||
| A | Pulley dist. 60.00 | |||
| i | Grooves/pulley 2 | |||
| j | Radius 99.50 | |||
| j | Radius 100.80 | |||
| k | B+ position M5 | |||
| n | Rotation ACR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 205.50 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | DP | |||
Replacing | ||||
| 0-33000-3700 | NIKKO | |||
| 0-33000-3760 | NIKKO | |||
| 0-33000-6000 | NIKKO | |||
| 1-81200205-0 | ISUZU | |||
| 1-81200209-0 | ISUZU | |||
| 1-81200365-0 | ISUZU | |||
| 5-81200382-0 | ISUZU | |||
UNISTART Price: £203.53
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Isuzu, MOTOR | Engine | - | - | 0 | 0 | 0 | 6BD1T | Engine | ||||||
| Komatsu, Fork Lift | Various Models | 1988 01 | - | 0 | 0 | 0 | Various Models |
