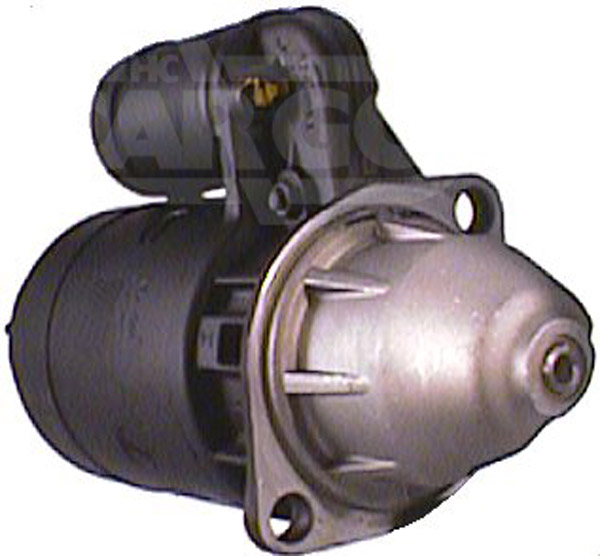

111054 - Starter (111054)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.1, Mount. flange 82.40, Drive dist. 35.00, Dist./back 173.00, Dist./front 73.50, No. of teeth 9, B+ M8, Terminal 15a 4.80, Gear type DD/GR, Dist. 105.00,
Rotation: CR, No./mount. holes 2 (2),
Drive Type: Steel, Remarks Bosch OE do not have threaded Mounting holes.,
Total Length: 263.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.1

Physical specifications (Starter)
A Mount. flange 82.40
B Drive dist. 35.00
F Dist./back 173.00
G Dist./front 73.50
H No. of teeth 9
I B+ M8
J Terminal 15a 4.80
N Gear type DD/GR
O Dist. 105.00
P Rotation CR
R Total length 263.00

Further information (Starter)
No./mount. holes 2 (2)
Drive type Steel
Remarks Bosch OE do not have threaded Mounting holes.
Oil sealed No
Waterproof No

Replacing
0001305016 BOSCH
0001311001 BOSCH
0001311027 BOSCH
0001311032 BOSCH
0001311103 BOSCH
0001311104 BOSCH
0001311114 BOSCH
1346707 VOLVO
3803074 VOLVO
834339 VOLVO

UNISTART Price: £96.92

Sorry, this item is out of stock.

The 111054 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators , Marine > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger cars US 1800 1.8 Gasoline - - 0 0 1780 L4 1800
Volvo, Passenger cars US 142 2 Gasoline - - 0 0 1990 L4 B20B S 142
Volvo, Passenger cars US 142 2 Gasoline 1970 01 1971 01 0 0 1990 L4 B20B 142
Volvo, Passenger cars US 144 1.8 Gasoline - - 0 0 1780 L4 B18 S 144
Volvo, Passenger cars US 145 2 Gasoline 1970 01 1971 01 0 0 1990 L4 B20B 145
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 B21F GL 242
Volvo, Passenger cars US 242 2.1 Gasoline 1983 01 1983 01 0 0 2127 L4 DL 242
Volvo, Passenger cars US 245 2.1 Gasoline 1983 01 1984 01 0 0 2127 L4 DL 245
Volvo, Passenger cars US 245 2.1 Gasoline 1985 01 1985 01 0 0 2127 L4 Turbo B21FT 245
Volvo, Passenger cars US 142 2 Gasoline 1972 01 1974 01 0 0 1990 L4 B20E 142
Volvo, Passenger cars US 144 2 Gasoline - - 0 0 1990 L4 B20B S 144
Volvo, Passenger cars US 144 2 Gasoline 1972 01 1974 01 0 0 1990 L4 B20E 144
Volvo, Passenger cars US 164 3 Gasoline 1972 01 1975 01 0 0 2980 L6 B30E 164
Volvo, Passenger cars US 1800 2 Gasoline 1970 01 1972 01 0 0 1990 L4 B20E E 1800
Volvo, Passenger cars US 1800 2 Gasoline 1972 01 1973 01 0 0 1990 L4 B20E ES 1800
Volvo, Passenger cars US 242 2.3 Gasoline 1983 01 1984 01 0 0 2316 L4 B23F DL 242
Volvo, Passenger cars US 242 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 GLT 242
Volvo, Passenger cars US 244 2.1 Gasoline 1983 01 1984 01 0 0 2127 L4 DL 244
Volvo, Passenger cars US 244 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 B23F GL 244
Volvo, Passenger cars US 245 2.1 Gasoline 1979 01 1979 01 0 0 2127 L4 B21F DL 245
Volvo, Passenger cars US 245 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 B23F 245
Volvo, Passenger cars US 245 2.3 Gasoline 1986 01 1989 01 0 0 2316 L4 B230F DL 245
Volvo, Passenger cars US 745 2.3 Gasoline 1985 01 1985 01 0 0 2316 L4 Turbo B230FT GLE 745
Volvo, Passenger cars US 122 1.8 Gasoline - - 0 0 1780 L4 S 122
Volvo, Passenger cars US 144 1.8 Gasoline - - 0 0 1780 L4 S 144
Volvo, Passenger cars US DL 2.1 Gasoline 1984 01 1984 01 0 0 2127 L4 B21A DL
Volvo, Passenger cars US 145 1.8 Gasoline - - 0 0 1780 L4 B18 S 145
Volvo, Passenger cars US 740 2.3 Gasoline 1985 01 1986 01 0 0 2316 L4 B230F GLE 740
Volvo, Passenger cars US 760 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 Turbo B23FT GLE 760
Volvo, Passenger cars US 760 2.3 Gasoline 1985 01 1985 01 0 0 2316 L4 Turbo B230FT 760
Volvo, Passenger cars US 242 2 Gasoline 1975 01 1975 01 0 0 1990 L4 B20E GL 242
Volvo, Passenger cars US 242 2.1 Gasoline 1976 01 1979 01 0 0 2127 L4 B21F 242
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1984 01 0 0 2127 L4 Turbo B21FT GLT 242
Volvo, Passenger cars US 244 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 GL 244
Volvo, Passenger cars US 244 2.3 Gasoline 1985 01 1989 01 0 0 2316 L4 B230F DL 244
Volvo, Passenger cars US 245 2.1 Gasoline 1980 01 1982 01 0 0 2127 L4 B21F DL 245
Volvo, Passenger cars US 245 2.3 Gasoline 1985 01 1985 01 0 0 2316 L4 B230F 245
Volvo, Passenger cars US 760 2.3 Gasoline 1985 01 1987 01 0 0 2316 L4 Turbo B230FT GLE 760
Volvo, Passenger cars US 544 1.8 Gasoline - - 0 0 1780 L4 544
Volvo, Passenger cars US 242 2.1 Gasoline 1982 01 1982 01 0 0 2127 L4 GLT 242
Volvo, Passenger cars US 122 1.8 Gasoline - - 0 0 1780 L4 B18 S 122
Volvo, Passenger cars US 142 2 Gasoline 1971 01 1971 01 0 0 1990 L4 B20B E 142
Volvo, Passenger cars US 142 2 Gasoline 1974 01 1974 01 0 0 1990 L4 B20E GL 142
Volvo, Passenger cars US 145 2 Gasoline - - 0 0 1990 L4 B20B S 145
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 242
Volvo, Passenger cars US 244 2.1 Gasoline 1976 01 1978 01 0 0 2127 L4 B21F 244
Volvo, Passenger cars US 244 2.1 Gasoline 1980 01 1982 01 0 0 2127 L4 B21F DL 244
Volvo, Passenger cars US 244 2.1 Gasoline 1982 01 1982 01 0 0 2127 L4 B21F GL 244
Volvo, Passenger cars US 244 2.3 Gasoline 1983 01 1984 01 0 0 2316 L4 B23F DL 244
Volvo, Passenger cars US 244 2.3 Gasoline 1985 01 1989 01 0 0 2316 L4 B230F GL 244
Volvo, Passenger cars US 245 2.1 Gasoline 1976 01 1978 01 0 0 2127 L4 B21F 245
Volvo, Passenger cars US 245 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 245
Volvo, Passenger cars US 245 2.1 Gasoline 1982 01 1982 01 0 0 2127 L4 B21F GL 245
Volvo, Passenger cars US 245 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 B23F DL 245
Volvo, Passenger cars US 245 2.3 Gasoline 1986 01 1989 01 0 0 2316 L4 B230F GL 245
Volvo, Passenger cars US 1800 1.8 Gasoline - - 0 0 1780 L4 B18B 1800
Volvo, Passenger cars US 164 3 Gasoline 1970 01 1971 01 0 0 2980 L6 B30A 164
Volvo, Passenger cars US 1800 1.8 Gasoline - - 0 0 1780 L4 B18 S 1800
Volvo, Passenger cars US 1800 2 Gasoline - - 0 0 1990 L4 B20B S 1800
Volvo, Passenger cars US 242 2.1 Gasoline 1980 01 1982 01 0 0 2127 L4 B21F DL 242
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 Turbo B21FT 242
Volvo, Passenger cars US 244 2 Gasoline 1975 01 1975 01 0 0 1990 L4 B20E GL 244
Volvo, Passenger cars US 244 2.1 Gasoline 1979 01 1979 01 0 0 2127 L4 B21F DL 244
Volvo, Passenger cars US 244 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 244
Volvo, Passenger cars US 244 2.1 Gasoline 1982 01 1984 01 0 0 2127 L4 Turbo B21FT GLT 244
Volvo, Passenger cars US 245 2 Gasoline 1975 01 1975 01 0 0 1990 L4 B20E 245
Volvo, Passenger cars US 245 2.1 Gasoline 1981 01 1984 01 0 0 2127 L4 Turbo B21FT GLT 245
Volvo, Passenger cars US 245 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 B23F GL 245
Volvo, Passenger cars US 745 2.3 Gasoline 1985 01 1985 01 0 0 2316 L4 B230F GLE 745
Volvo, Passenger cars US GLE 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 B23F-LH GLE
Volvo, Passenger Car EU 240 2 Gasoline 1976 08 1979 07 66 90 1986 4 B19A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 79 107 2127 4 B21A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1980 07 90 122 2127 4 B21E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 114 155 2127 4 Turbo B21ET 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1980 08 1984 07 82 112 2315 4 B23A 240
Volvo, Passenger Car EU 360 2 Gasoline 1982 08 1984 07 83 113 1986 4 B19E Hatchback 360
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 08 1990 07 100 136 2316 4 B230FB Estate 740
Volvo, Passenger Car EU 122 1.8 Gasoline - 1971 05 76 103 1780 4 B18 Amazon P 122 S
Volvo, Passenger Car EU 140 2 Gasoline - 1972 09 74 101 1986 4 B20B P 140 S
Volvo, Passenger Car EU 140 2 Gasoline 1972 09 1975 08 85 116 1985 4 B20F P 140 S
Volvo, Passenger Car EU 240 2 Gasoline 1974 08 1975 07 60 82 1986 4 B20A Estate 240
Volvo, Passenger Car EU 145 2 Gasoline 1972 08 1974 07 74 101 1986 4 B20B Estate P 145
Volvo, Passenger Car EU 1800 1.8 Gasoline - 1970 05 66 90 1767 4 Coupe P 1800
Volvo, Passenger Car EU 240 2 Gasoline 1974 08 1976 07 60 82 1986 4 B20A 240
Volvo, Passenger Car EU 360 2 Gasoline 1983 08 1984 07 68 92 1986 4 B19A Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1983 08 1984 07 68 92 1986 4 B19A 360
Volvo, Passenger Car EU 740 2.3 Gasoline 1983 08 1984 07 95 129 2316 4 B23E 740
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1975 07 71 97 2127 4 B21A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1975 08 1980 07 74 100 2127 4 B21A 240
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1983 07 70 95 1986 4 B200K Hatchback 340
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1984 07 65 88 1986 4 B19A Hatchback 340
Volvo, Passenger Car EU 360 2 Gasoline 1982 08 1984 07 66 90 1986 4 B19A 360
Volvo, Passenger Car EU 360 2 Gasoline 1982 08 1984 07 85 115 1986 4 B19E Hatchback 360
Volvo, Passenger Car EU 164 3 Gasoline 1972 08 1974 07 118 160 2978 6 B30E 164
Volvo, Passenger Car EU 1800 1.8 Gasoline - 1970 05 76 103 1767 4 Coupe P 1800
Volvo, Passenger Car EU 140 1.8 Gasoline - - 55 75 1780 4 B18A P 140
Volvo, Passenger Car EU 360 2 Gasoline 1983 08 1984 07 83 113 1986 4 B19E 360
Volvo, Passenger Car EU 240 2.3 Gasoline 1978 08 1980 07 103 140 2316 4 B23E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 80 109 2127 4 B21F Estate 240
Volvo, Passenger Car EU 121 2 Gasoline - 1971 05 60 82 1986 4 B20A P 121
Volvo, Passenger Car EU 122 2 Gasoline - 1971 05 74 101 1986 4 B20B Amazon P 122 S
Volvo, Passenger Car EU 140 1.8 Gasoline - 1972 01 74 101 1780 4 B18B P 140 S
Volvo, Passenger Car EU 240 2 Gasoline 1978 09 1983 08 71 97 1986 4 B19A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1975 07 71 97 2127 4 B21A Estate 240
Volvo, Passenger Car EU 240 2 Gasoline 1976 08 1982 01 66 90 1986 4 B19A Estate 240
Volvo, Passenger Car EU 145 2 Gasoline - 1974 07 60 82 1986 4 B20A Estate P 145 S
Volvo, Passenger Car EU 240 2 Gasoline 1984 08 1985 07 76 103 1986 4 B200K Estate 240
Volvo, Passenger Car EU 760 2.3 Gasoline 1982 08 1984 07 127 173 2315 4 Turbo B23ET 760
Volvo, Passenger Car EU 740 2.3 Gasoline 1988 08 1990 07 100 136 2316 4 B230FB 740
Volvo, Passenger Car EU 240 2.3 Gasoline 1980 08 1983 07 100 136 2316 4 B23E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1985 07 114 155 2127 4 Turbo B21ET Estate 240
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1983 07 70 95 1986 4 B19A Hatchback 340
Volvo, Passenger Car EU 121 1.8 Gasoline - 1971 05 55 75 1780 4 B18 P 121
Volvo, Passenger Car EU 122 1.8 Gasoline - 1971 05 63 86 1780 4 B18 Amazon P 122 S
Volvo, Passenger Car EU 122 1.8 Gasoline - 1971 05 66 90 1780 4 B18D Amazon P 122 S
Volvo, Passenger Car EU 240 2 Gasoline 1980 08 1984 12 71 97 1986 4 B19A Estate 240
Volvo, Passenger Car EU 145 2 Gasoline 1972 08 1973 07 73 100 1986 4 B20B Estate P 145
Volvo, Passenger Car EU 164 3 Gasoline - 1973 07 96 131 2978 6 B30A E 164
Volvo, Passenger Car EU 1800 1.8 Gasoline - 1970 05 71 97 1767 4 Coupe P 1800
Volvo, Passenger Car EU 140 2 Gasoline - 1974 07 60 82 1986 4 B20A P 140
Volvo, Passenger Car EU 240 2.3 Gasoline 1983 08 1985 07 96 131 2316 4 B230E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1975 08 1980 07 74 100 2127 4 B21A Estate 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1979 07 90 122 2127 4 B21E Estate 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1980 08 1984 07 82 112 2315 4 B23A Estate 240
Volvo, Passenger Car EU 140 2 Gasoline 1970 09 1975 04 91 124 1986 4 B20E P 140
Volvo, Passenger Car EU 145 2 Gasoline 1973 09 1975 02 85 116 1985 4 B20F Estate P 145
Volvo, Passenger Car EU 145 2 Gasoline 1972 08 1973 07 91 124 1986 4 B20E Estate P 145
Volvo, Passenger Car EU 1800 2 Gasoline 1972 04 1973 11 91 124 1954 4 B20E Coupe P 1800 ES
Volvo, Passenger Car EU 140 2 Gasoline 1971 08 1972 07 70 95 1986 4 B20D P 140
Volvo, Passenger Car EU 260 2.7 Gasoline 1978 10 1982 07 109 148 2664 6 B27F Estate 260
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 79 107 2127 4 B21A Estate 240
Volvo Penta, Marine Engine 2.3 Gasoline 1979 03 1985 12 0 0 2310 4 AQ145 Engine
Volvo Penta, Marine Engine 2 Gasoline 1970 01 1977 12 0 0 1986 4 AQ130 Engine
Volvo Penta, Marine Engine 3 Gasoline 1970 01 1978 12 0 0 2979 6 AQ170 Engine
Volvo Penta, Marine Engine 2.3 Gasoline 1975 11 1979 12 0 0 2310 4 AQ140 Engine
Volvo, Passenger cars AO 740 2 Gasoline 1983 04 1984 07 85 116 1986 4 B19E GLE 740
