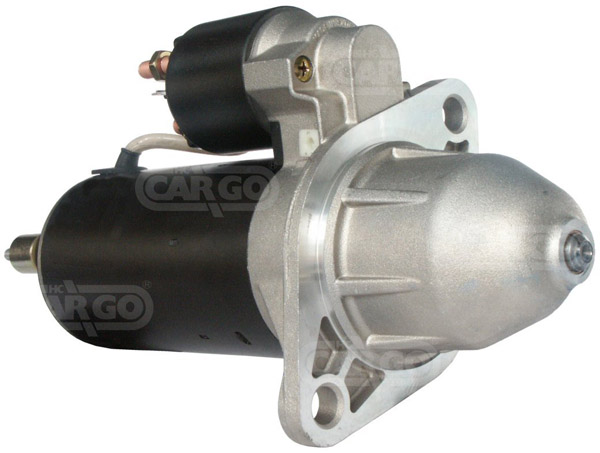

111069 - Starter (111069)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.7, Mount. flange 82.40, Drive dist. 42.50, Dist./back 194.00, Dist./front 80.50, No. of teeth 9, B+ M8, Gear type GR, Dist. 127.00,
Rotation: ACR, No./mount. holes 2 (0),
Drive Type: Steel,
Total Length: 290.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.7

Physical specifications (Starter)
A Mount. flange 82.40
B Drive dist. 42.50
F Dist./back 194.00
G Dist./front 80.50
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 127.00
P Rotation ACR
R Total length 290.00

Further information (Starter)
No./mount. holes 2 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001110009 BOSCH
0001110010 BOSCH
0001310013 BOSCH
068911023m VOLKSWAGEN
11.130.772 ISKRA
11.130.910 ISKRA
111062 CARGO
aze2540 ISKRA
aze2577 ISKRA

UNISTART Price: £83.36

Sorry, this item is out of stock.

The 111069 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU Transporter 1.6 Diesel 1984 10 1992 07 51 70 1589 4 TD JX Platform / Chassis T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1981 01 1987 07 37 50 1588 4 Diesel CS Van T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1981 01 1987 07 37 50 1588 4 Diesel CS Bus T3 Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1989 07 1992 07 42 57 1716 4 Diesel KY Platform / Chassis T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 70 1589 4 TD JX Bus T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1989 07 1992 07 42 57 1716 4 Diesel KY Van T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 69 1589 4 TD JX Van T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1986 03 1992 07 51 69 1589 4 TD JX Platform / Chassis T3 Syncro Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1984 08 1992 07 51 70 1589 4 TD JX Bus T3 Transporter
VW, Passenger Car EU Transporter 1.7 Diesel 1986 10 1992 07 42 57 1716 4 Diesel KY Bus T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1981 01 1987 07 37 50 1588 4 Diesel CS Platform / Chassis T3 Transporter
VW, Passenger Car EU Transporter 1.6 Diesel 1984 10 1992 07 51 69 1589 4 TD JX Van T3 Transporter
VW, Passenger cars US Vanagon 1.6 Diesel 1982 01 1982 01 0 0 1588 L4 CS Vanagon
VW, Passenger cars US Vanagon 1.6 Diesel 1983 01 1983 01 0 0 1588 L4 CS Campmobile Vanagon
VW, Passenger cars US Vanagon 1.6 Diesel 1982 01 1982 01 0 0 1588 L4 CS Campmobile Vanagon
VW, Passenger cars US Vanagon 1.6 Diesel 1983 01 1983 01 0 0 1588 L4 CS Vanagon
