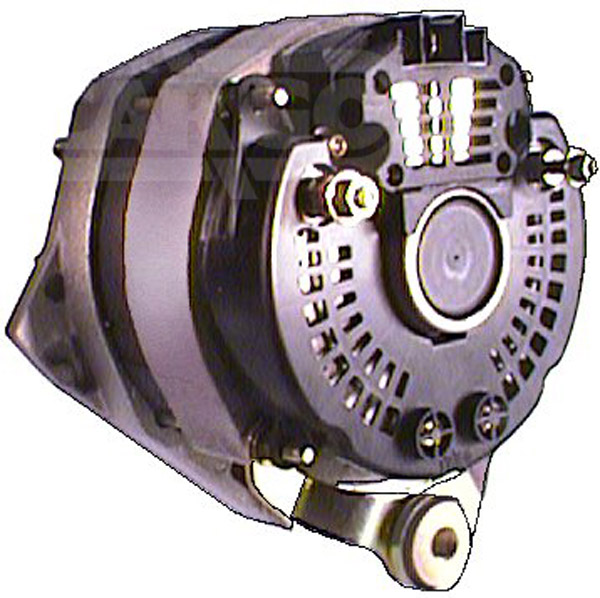

111071 - Alternator (111071)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 75,
Bracket Hole: 10.78/14.13, Belt. adj. bracket hole 8.60,
Width/Holder Arm: 35.90, Belt. adj. brackethole pos. 51,
Mount. Bracket Dist.: 53.00,
Pulley Dia.: 73.00,
Pulley Dist.: 61.85,
Grooves/Pulley: 1,
Radius: 82.30,
Radius: 85.70,
B+ Position: M6,
Rotation: ACR,
Regulator Plug: or plug PL27,
Blower: EF, Pulley P,
Total Length: 172.00, Source Valeo

Electrical specifications (Alternator)
Voltage 14
Amp 75

Physical specifications (Alternator)
D Bracket hole 10.78/14.13
G Belt. adj. bracket hole 8.60
B Width/holder arm 35.90
E Belt. adj. brackethole pos. 51
C Mount. bracket dist. 53.00
H Pulley dia. 73.00
A Pulley dist. 61.85
i Grooves/pulley 1
j Radius 82.30
j Radius 85.70
k B+ position M6
n Rotation ACR
o Regulator plug PL27
R Total length 172.00
Source Valeo

Further information (Alternator)
Blower EF
Pulley P

Replacing
2940275 MOTOROLA
2940275 VALEO
2941232 VALEO
451068 DUCELLIER
516013 DUCELLIER
516013a DUCELLIER
516013b DUCELLIER
516013bc DUCELLIER
516013c DUCELLIER
516015 DUCELLIER

UNISTART Price: £363.62

Sorry, this item is out of stock.

The 111071 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Citroen, Passenger Car EU CX 2.5 Gasoline 1986 05 1992 12 89 121 2500 4 GTi M25-668 Hatchback CX 25
Citroen, Passenger Car EU CX 2.2 Diesel 1975 10 1979 02 49 67 2175 4 Diesel M22-621 Hatchback CX 2200
Citroen, Passenger Car EU CX 2.5 Diesel 1985 08 1992 12 54 73 2500 4 Diesel M25-660 Hatchback CX 25
Citroen, Passenger Car EU CX 2.5 Diesel 1987 01 1992 12 88 120 2500 4 TD M25-669 Hatchback CX 25
Citroen, Passenger Car EU CX 2.5 Gasoline 1985 08 1992 12 100 136 2500 4 M25-659 Estate TRI CX 25
Citroen, Passenger Car EU CX 2.5 Diesel 1978 02 1985 08 55 75 2500 4 Diesel M25-629 Estate CX 2500
Citroen, Passenger Car EU CX 2.5 Diesel 1985 10 1994 02 54 73 2500 4 Diesel CRD93L Bus C25
Citroen, Passenger Car EU CX 2.2 Gasoline 1974 09 1976 07 82 112 2175 4 M22-617 Hatchback CX 2200
Citroen, Passenger Car EU CX 2.4 Gasoline 1980 05 1982 05 88 120 2347 4 M23-639 Hatchback CX 2400
Citroen, Passenger Car EU CX 2.4 Gasoline 1977 06 1982 06 96 131 2347 4 GTi M23-622 Hatchback CX 2400
Citroen, Passenger Car EU CX 2.5 Diesel 1985 08 1986 12 70 95 2500 4 TD M25-648 Hatchback CX 25
Citroen, Passenger Car EU CX 2.4 Gasoline 1982 07 1983 06 94 128 2350 4 GTi M23-622 Estate CX 2400
Citroen, Passenger Car EU CX 2.5 Diesel 1987 01 1992 12 88 120 2500 4 TD M25-669 Estate CX 25
Citroen, Passenger Car EU CX 2.2 Diesel 1976 08 1979 02 49 67 2175 4 Diesel M22-621 Estate CX 2200
Citroen, Passenger Car EU CX 2.5 Diesel 1986 05 1992 12 54 73 2500 4 Diesel M25-660 Estate CX 25
Citroen, Passenger Car EU CX 2 Gasoline 1974 09 1979 05 75 102 1985 4 M20-616 Hatchback CX 2000
Citroen, Passenger Car EU C25 2.5 Diesel 1987 01 1994 02 54 73 2500 4 Diesel CRD93L Bus 4x4 C25
Citroen, Passenger Car EU CX 2.5 Diesel 1985 08 1986 12 70 95 2500 4 TD M25-648 Estate 2500 CX
Citroen, Passenger Car EU CX 2.4 Gasoline 1977 06 1982 06 94 128 2347 4 GTi M23-622 Hatchback CX 2400
Citroen, Passenger Car EU CX 2.5 Gasoline 1985 08 1992 12 100 136 2500 4 M25-659 Hatchback TRi CX 25
Citroen, Passenger Car EU CX 2.5 Diesel 1978 02 1982 06 55 75 2500 4 Diesel M25-629 Hatchback CX 2500
Citroen, Passenger Car EU CX 2.5 Diesel 1983 04 1985 08 70 95 2500 4 TD M25-648 Estate CX 25
Citroen, Passenger Car EU CX 2.4 Gasoline 1980 05 1982 05 88 120 2350 4 M23-639 Estate CX 2400
Peugeot, Passenger Car EU J5 2.5 Diesel 1981 09 1990 09 54 73 2500 4 Diesel CRD93 (U25/661) Platform / Chassis J5
Peugeot, Passenger Car EU 604 2.7 Gasoline 1977 08 1983 05 100 136 2664 6 112 (ZM) 604
Peugeot, Passenger Car EU 604 2.8 Gasoline 1983 09 1987 07 110 150 2849 6 GTi 154A (ZMJK) 604
Peugeot, Passenger Car EU J5 2.5 Diesel 1981 09 1990 09 54 73 2498 4 Diesel CRD93 (U25/661) Bus J5
Peugeot, Passenger Car EU J5 2.5 Diesel 1990 10 1994 03 54 73 2500 4 Diesel CRD93 (U25/661) Van 4x4 J5
Peugeot, Passenger Car EU J5 2.5 Diesel 1990 10 1994 04 54 73 2500 4 Diesel CRD93 (U25/661) Bus J5
Peugeot, Passenger Car EU J5 2.5 Diesel 1990 10 - 54 73 2500 4 Diesel CRD93 (U25/661) Platform / Chassis J5
Peugeot, Passenger Car EU J5 2.5 Diesel 1990 10 1994 04 54 73 2500 4 Diesel CRD93 (U25/661) Bus 4x4 J5
Peugeot, Passenger Car EU 604 2.7 Gasoline 1977 08 1983 05 106 144 2664 6 140 (ZMJ) 604
Peugeot, Passenger Car EU J5 2.5 Diesel 1990 10 1994 04 54 73 2500 4 Diesel CRD93 (U25/661) Platform / Chassis 4x4 J5
