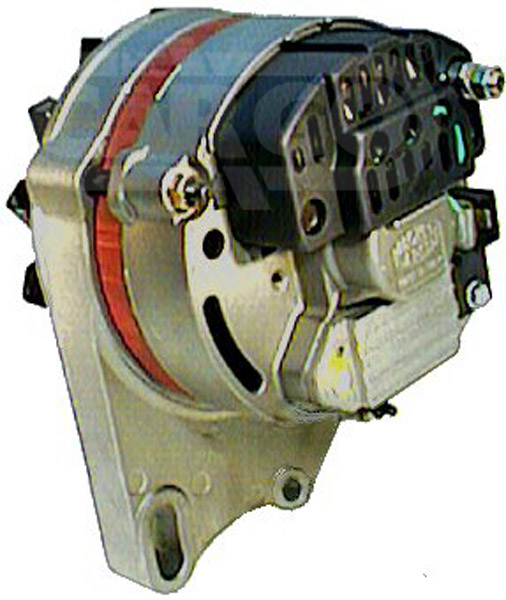

111078 - Alternator (111078)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 45,
Bracket Hole: 10.50, Belt. adj. bracket hole 10.45/25.75,
Width/Holder Arm: 23,50, Belt. adj. brackethole pos. 23,
Pulley Dia.: 70.00,
Pulley Dist.: 53.25,
Grooves/Pulley: 1,
Radius: 102.35,
Radius: 118.85,
B+ Position: M6,
Rotation: ACR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 169.00

Electrical specifications (Alternator)
Voltage 14
Amp 45

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole 10.45/25.75
B Width/holder arm 23,50
E Belt. adj. brackethole pos. 23
H Pulley dia. 70.00
A Pulley dist. 53.25
i Grooves/pulley 1
j Radius 102.35
j Radius 118.85
k B+ position M6
n Rotation ACR
o Regulator plug PL_NA
R Total length 169.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
11.201.347 ISKRA
24041 LUCAS
24041a LUCAS
24041E LUCAS
24041f LUCAS
24041H LUCAS
4451759 FIAT
4456152 FIAT
4458618 FIAT
46231655 FIAT

UNISTART Price: £91.09

Sorry, this item is out of stock.

The 111078 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Panda 0.9 Gasoline 1992 04 1996 12 29 40 899 4 1170A1.046 Hatchback Panda
Fiat, Passenger Car EU Panda 1 Gasoline 1982 09 1983 08 35 48 965 4 A112B1.054 Hatchback Panda
Fiat, Passenger Car EU 127 0.9 Gasoline 1971 06 1983 05 33 45 903 4 100GL.000 Hatchback 127
Fiat, Passenger Car EU Panda 0.9 Gasoline 1980 10 1994 06 33 45 903 4 100GL.3000 Hatchback Panda
Fiat, Passenger Car EU 230 1.4 Gasoline 1976 06 1982 06 38 52 1440 4 131AZ000 Bus 238-Series
Fiat, Passenger Car EU Uno 0.9 Gasoline 1988 02 1996 07 33 45 903 4 146A.000 Van Uno
Fiat, Passenger Car EU Panda 0.8 Gasoline 1981 02 1985 12 25 34 837 4 100GL6000 Hatchback Panda
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A1.000 Hatchback ES Uno
Fiat, Passenger Car EU 230 1.4 Gasoline 1976 06 1982 06 38 52 1440 4 131FZ Bus 238-Series
Fiat, Passenger Car EU 127 0.9 Gasoline 1971 06 1983 05 29 40 903 4 100GL.048 Hatchback 127
Fiat, Passenger Car EU Panda 1 Gasoline 1983 09 1986 12 35 48 965 4 A112B1.054 Hatchback 4x4 Panda
Fiat, Passenger Car EU Panda 0.8 Gasoline 1986 01 1992 07 25 34 764 4 141B.000 Van Panda
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A.000 Hatchback ES Uno
Fiat, Passenger Car EU Uno 0.9 Gasoline 1988 02 1996 07 33 45 903 4 146A1.000 Van Uno
Fiat, Passenger Car EU Fiorino 0.9 Gasoline 1977 10 1984 12 33 45 903 4 100GL.000 Van Fiorino
Fiat, Passenger Car EU 230 1.4 Gasoline 1976 06 1982 06 38 52 1440 4 131BZ0C0 Bus 238-Series
Seat, Passenger Car EU Marbella 0.9 Gasoline 1987 01 1993 12 29 40 903 4 09NCA Hatchback Marbella
Seat, Passenger Car EU Marbella 0.9 Gasoline 1987 01 1993 12 29 40 903 4 09NCA Van Marbella
Seat, Passenger Car EU Ibiza 0.9 Gasoline 1986 08 1993 05 32 44 903 4 146A.000 Hatchback Ibiza
Seat, Passenger Car EU Fura 0.9 Gasoline 1984 03 1986 12 29 40 903 4 100GL.7000 Hatchback Fura
Seat, Passenger Car EU Marbella 0.8 Gasoline 1986 08 1993 12 25 34 843 4 08NCA Hatchback Marbella
Seat, Passenger Car EU Terra 0.9 Gasoline 1990 01 1995 12 29 40 903 4 09NCB Van Terra
Seat, Passenger Car EU Terra 0.9 Gasoline 1987 01 1995 12 29 40 903 4 09NCA Van Terra
Seat, Passenger Car EU Ibiza 0.9 Gasoline 1990 08 1993 05 29 40 903 4 146A.000 Hatchback Ibiza
Seat, Passenger Car EU Marbella 0.8 Gasoline 1987 01 1993 12 25 34 843 4 08NCA Van Marbella
Seat, Passenger Car EU Marbella 0.9 Gasoline 1987 01 1993 12 29 40 903 4 09NCB Van Marbella
Seat, Passenger Car EU Terra 0.9 Gasoline 1992 02 1994 12 29 40 903 4 09NCB Estate Terra
Seat, Passenger Car EU Fura 0.9 Gasoline 1982 01 1986 06 31 43 903 4 HB90 Hatchback Fura
Seat, Passenger Car EU Marbella 0.9 Gasoline 1990 01 1996 11 29 40 903 4 09NCB Hatchback Marbella
Seat, Passenger Car EU Terra 0.9 Gasoline 1987 02 1996 12 29 40 903 4 09NCA Estate Terra
Seat, Passenger Car EU 127 0.9 Gasoline 1972 04 1982 12 33 45 903 4 Hatchback 127
Seat, Passenger Car EU Ibiza 0.9 Gasoline 1990 08 1993 05 29 40 903 4 09NCA Hatchback Ibiza
Autobianchi, Passenger Car EU A 112 0.9 Gasoline 1975 07 1985 12 31 42 903 4 A112A5.000 Hatchback Junior A 112
Autobianchi, Passenger Car EU A 112 0.9 Gasoline 1975 07 1985 12 31 42 903 4 A112B2.000 Hatchback Junior A 112
Autobianchi, Passenger Car EU A 112 1 Gasoline 1974 01 1984 12 51 70 1050 4 A112A2.000 Hatchback Abarth A 112
