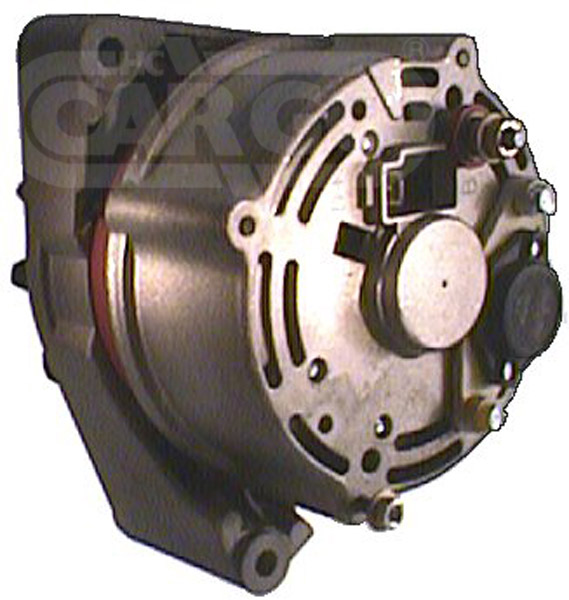

111085 - Alternator (111085)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 55,
Bracket Hole: 8.20, Belt. adj. bracket hole 9.40,
Width/Holder Arm: 71.00, Belt. adj. brackethole pos. 10,
Pulley Dia.: 73.50,
Pulley Dist.: 91.95,
Grooves/Pulley: 2,
Radius: 89.85,
Radius: 85.50,
B+ Position: M6,
Rotation: ACR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley DP,
Total Length: 172.25

Electrical specifications (Alternator)
Voltage 14
Amp 55

Physical specifications (Alternator)
D Bracket hole 8.20
G Belt. adj. bracket hole 9.40
B Width/holder arm 71.00
E Belt. adj. brackethole pos. 10
H Pulley dia. 73.50
A Pulley dist. 91.95
i Grooves/pulley 2
j Radius 89.85
j Radius 85.50
k B+ position M6
n Rotation ACR
o Regulator plug PL_NA
R Total length 172.25

Further information (Alternator)
Blower EF
Pulley DP

Replacing
0120489065 BOSCH
0120489066 BOSCH
11.201.203 ISKRA
11.201.496 ISKRA
1219754 VOLVO
1234977 VOLVO
1308720 VOLVO
3523478 VOLVO
3544624 VOLVO
5002051 VOLVO

UNISTART Price: £91.68

Sorry, this item is out of stock.

The 111085 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 B21F GL 242
Volvo, Passenger cars US 242 2.1 Gasoline 1983 01 1983 01 0 0 2127 L4 DL 242
Volvo, Passenger cars US 245 2.3 Gasoline 1982 01 - 0 0 2316 L4 GL 245
Volvo, Passenger cars US 245 2.1 Gasoline 1983 01 1984 01 0 0 2127 L4 DL 245
Volvo, Passenger cars US 245 2.1 Gasoline 1985 01 1985 01 0 0 2127 L4 Turbo B21FT 245
Volvo, Passenger cars US 244 2.3 Gasoline 1982 01 - 0 0 2316 L4 GLT 244
Volvo, Passenger cars US 244 2.3 Gasoline 1982 01 - 0 0 2316 L4 GL 244
Volvo, Passenger cars US 242 2.3 Gasoline 1983 01 1984 01 0 0 2316 L4 B23F DL 242
Volvo, Passenger cars US 242 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 GLT 242
Volvo, Passenger cars US 244 2.1 Gasoline 1983 01 1984 01 0 0 2127 L4 DL 244
Volvo, Passenger cars US 244 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 B23F GL 244
Volvo, Passenger cars US 245 2.1 Gasoline 1979 01 1979 01 0 0 2127 L4 B21F DL 245
Volvo, Passenger cars US 245 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 B23F 245
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1984 01 0 0 2127 L4 Turbo B21FT GLT 242
Volvo, Passenger cars US 244 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 GL 244
Volvo, Passenger cars US 245 2.1 Gasoline 1980 01 1982 01 0 0 2127 L4 B21F DL 245
Volvo, Passenger cars US 242 2.1 Gasoline 1982 01 1982 01 0 0 2127 L4 GLT 242
Volvo, Passenger cars US DL 2.1 Gasoline 1984 01 1984 01 0 0 2127 L4 B21A DL
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 242
Volvo, Passenger cars US 242 2.3 Gasoline 1982 01 - 0 0 2316 L4 GLT 242
Volvo, Passenger cars US 244 2.1 Gasoline 1980 01 1982 01 0 0 2127 L4 B21F DL 244
Volvo, Passenger cars US 244 2.1 Gasoline 1982 01 1982 01 0 0 2127 L4 B21F GL 244
Volvo, Passenger cars US 244 2.3 Gasoline 1983 01 1984 01 0 0 2316 L4 B23F DL 244
Volvo, Passenger cars US 245 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 245
Volvo, Passenger cars US 245 2.1 Gasoline 1982 01 1982 01 0 0 2127 L4 B21F GL 245
Volvo, Passenger cars US 245 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 B23F DL 245
Volvo, Passenger cars US 242 2.1 Gasoline 1980 01 1982 01 0 0 2127 L4 B21F DL 242
Volvo, Passenger cars US 242 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 Turbo B21FT 242
Volvo, Passenger cars US 244 2.1 Gasoline 1979 01 1979 01 0 0 2127 L4 B21F DL 244
Volvo, Passenger cars US 244 2.1 Gasoline 1981 01 1981 01 0 0 2127 L4 244
Volvo, Passenger cars US 244 2.1 Gasoline 1982 01 1984 01 0 0 2127 L4 Turbo B21FT GLT 244
Volvo, Passenger cars US 245 2.1 Gasoline 1981 01 1984 01 0 0 2127 L4 Turbo B21FT GLT 245
Volvo, Passenger cars US 245 2.3 Gasoline 1983 01 1983 01 0 0 2316 L4 B23F GL 245
Volvo, Passenger cars US GLE 2.3 Gasoline 1984 01 1984 01 0 0 2316 L4 B23F-LH GLE
Volvo, Passenger Car EU 240 2 Gasoline 1976 08 1979 07 66 90 1986 4 B19A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 79 107 2127 4 B21A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1980 07 90 122 2127 4 B21E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 114 155 2127 4 Turbo B21ET 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1980 08 1984 07 82 112 2315 4 B23A 240
Volvo, Passenger Car EU 360 2 Gasoline 1982 08 1984 07 83 113 1986 4 B19E Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1983 08 1984 07 68 92 1986 4 B19A Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1983 08 1984 07 68 92 1986 4 B19A 360
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1975 07 71 97 2127 4 B21A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1975 08 1980 07 74 100 2127 4 B21A 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1986 07 81 110 2315 4 B230A Estate 240
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1983 07 70 95 1986 4 B200K Hatchback 340
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1984 07 65 88 1986 4 B19A Hatchback 340
Volvo, Passenger Car EU 360 2 Gasoline 1982 08 1984 07 66 90 1986 4 B19A 360
Volvo, Passenger Car EU 360 2 Gasoline 1982 08 1984 07 85 115 1986 4 B19E Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1983 08 1984 07 83 113 1986 4 B19E 360
Volvo, Passenger Car EU 240 2.3 Gasoline 1978 08 1980 07 103 140 2316 4 B23E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 80 109 2127 4 B21F Estate 240
Volvo, Passenger Car EU 240 2 Gasoline 1978 09 1983 08 71 97 1986 4 B19A 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1975 07 71 97 2127 4 B21A Estate 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1980 08 1983 07 100 136 2316 4 B23E 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1985 07 114 155 2127 4 Turbo B21ET Estate 240
Volvo, Passenger Car EU 340 2 Gasoline 1980 08 1983 07 70 95 1986 4 B19A Hatchback 340
Volvo, Passenger Car EU 240 2 Gasoline 1984 08 1985 07 76 103 1986 4 B200K 240
Volvo, Passenger Car EU 240 2 Gasoline 1980 08 1984 12 71 97 1986 4 B19A Estate 240
Volvo, Passenger Car EU 240 2 Gasoline 1982 10 1984 08 100 136 1986 4 B19ET 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1975 08 1980 07 74 100 2127 4 B21A Estate 240
Volvo, Passenger Car EU 240 2.1 Gasoline 1974 08 1979 07 90 122 2127 4 B21E Estate 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1980 08 1984 07 82 112 2315 4 B23A Estate 240
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1987 07 77 105 1986 4 B200K Hatchback 360
Volvo, Passenger Car EU 240 2.1 Gasoline 1980 08 1984 07 79 107 2127 4 B21A Estate 240
Volvo, Passenger Car EU 240 2 Gasoline 1982 10 1984 08 100 136 1986 4 B19ET Estate 240
